Cannondale Moterra 3 Chalk '26

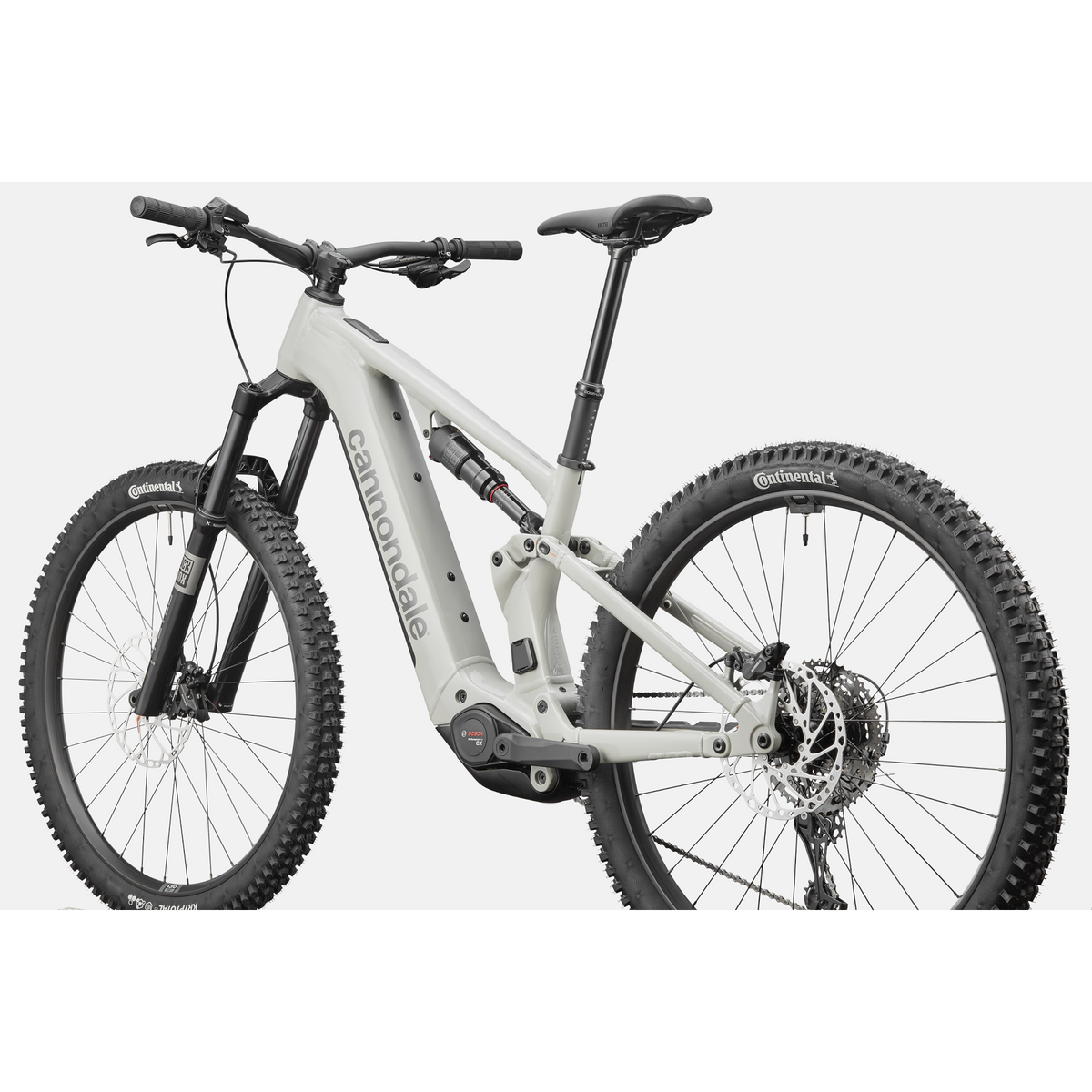

CANNONDALE MOTERRA 3

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

PRODUCT HIGHLIGHTS

• A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
• Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
• RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
• Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
• Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
• Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power

SPECIFICATIONS:

FRAME: MOTERRA, SMARTFORM C1 ALLOY, 29" WHEELS, 150MM TRAVEL, CANNONDALE TUNED SUSPENSION, REMOVABLE DOWNTUBE BATTERY, ALLOY SKID PLATE, 55MM CHAINLINE, INTERNAL CABLE ROUTING, 148X12MM THRU-AXLE, UDH, 200MM NATIVE POST MOUNT BRAKE, 1.5” – 1.8” TAPERED HEADTUBE, 40MM TWO-BOLT KICKSTAND COMPATIBLE, INTEGRATED MOTERRA REAR RACK AND FENDER MOUNTS
FORK: ROCKSHOX PSYLO SILVER RC, 160MM, MOTION CONTROL, SOLOAIR, 15X110MM MAXLE, TAPERED STEERER, 44MM OFFSET
HEADSET: ACROS ICR, 1.5" TO 1.8", SEALED BEARINGS
REAR SHOCK: ROCKSHOX DELUXE SELECT, DEBONAIR+, ADJUSTABLE REBOUND, 230X62.5MM

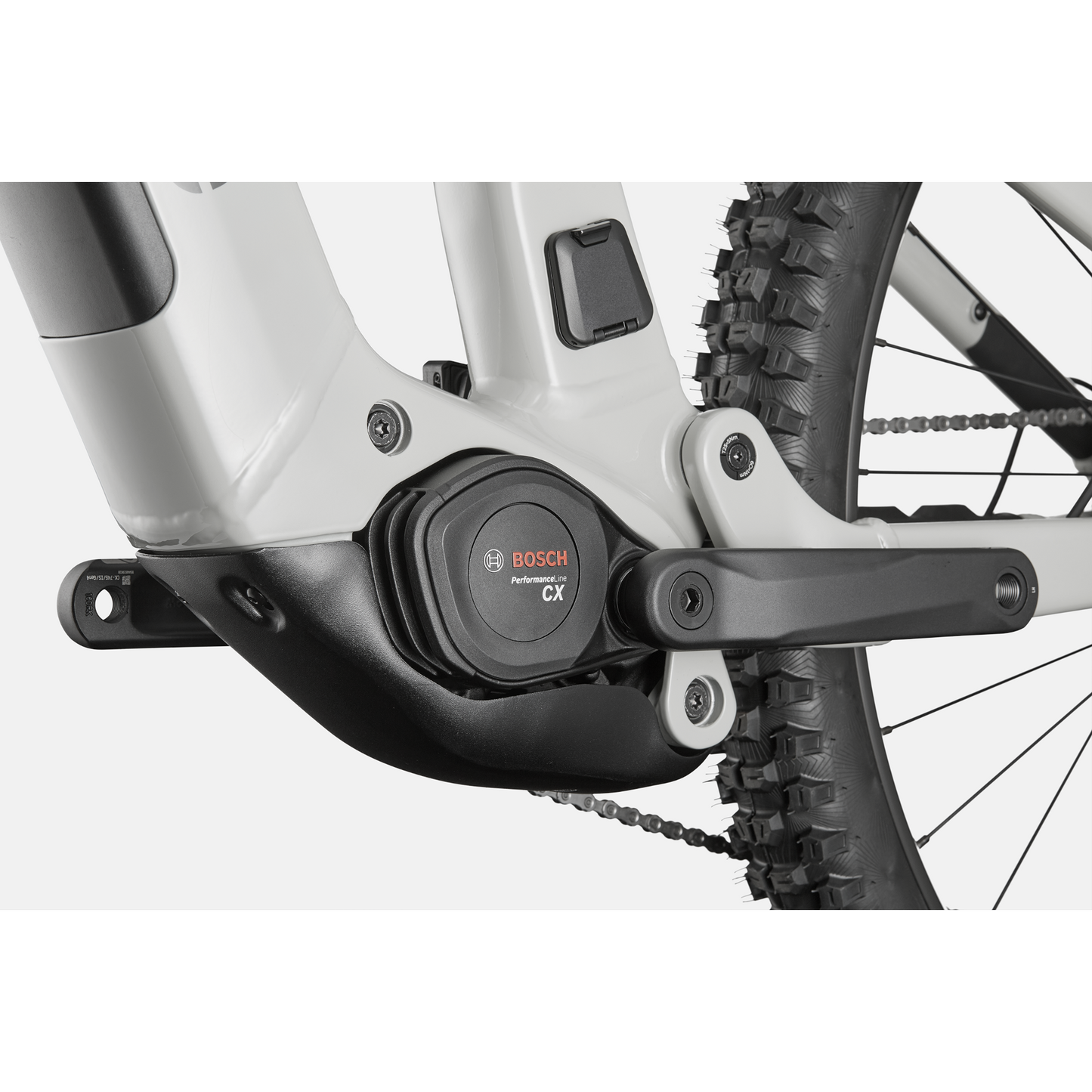

DRIVE UNIT: BOSCH PERFORMANCE LINE CX
BATTERY: BOSCH POWERTUBE, 800WH
CHARGER: BOSCH 4A

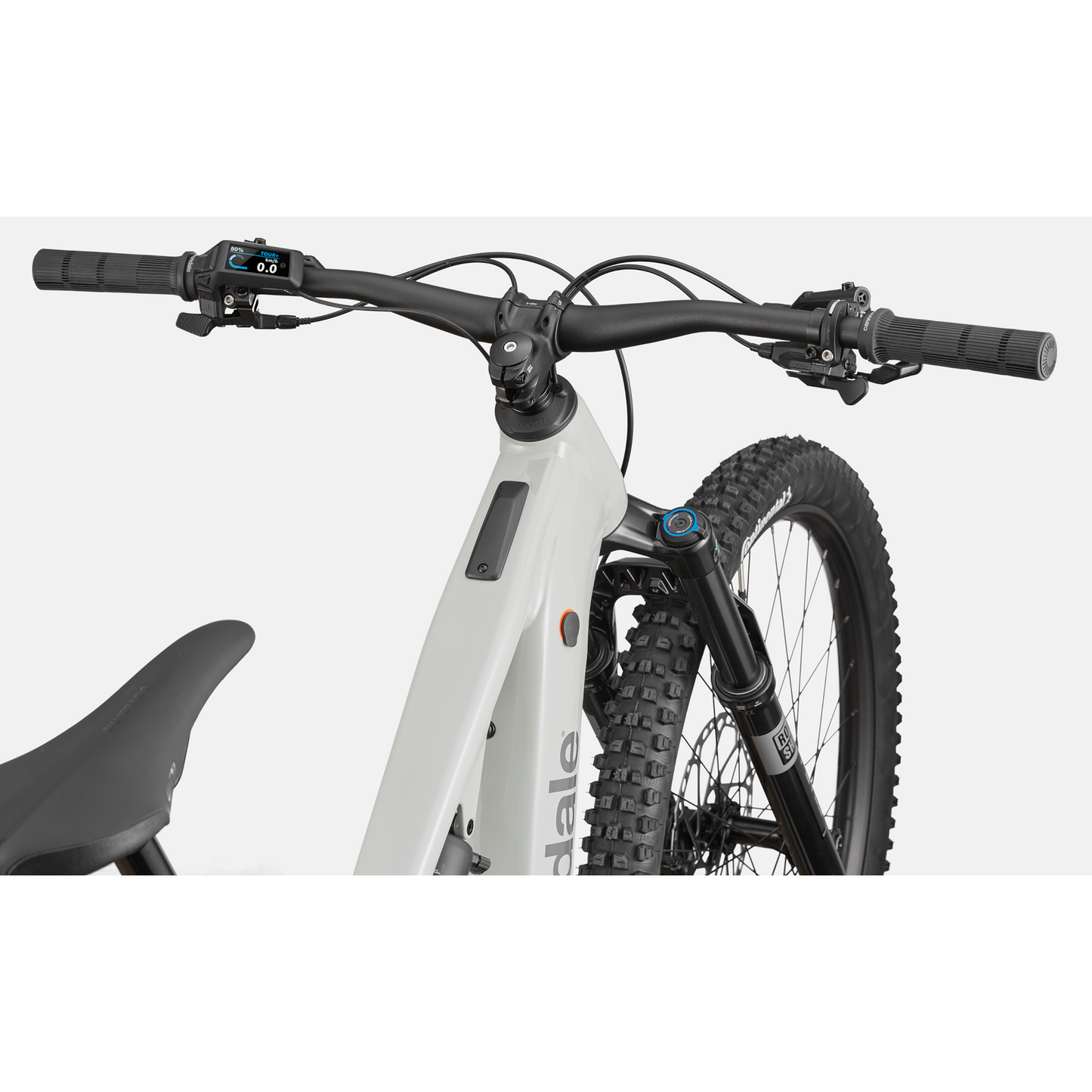

DISPLAY: BOSCH PURION 200

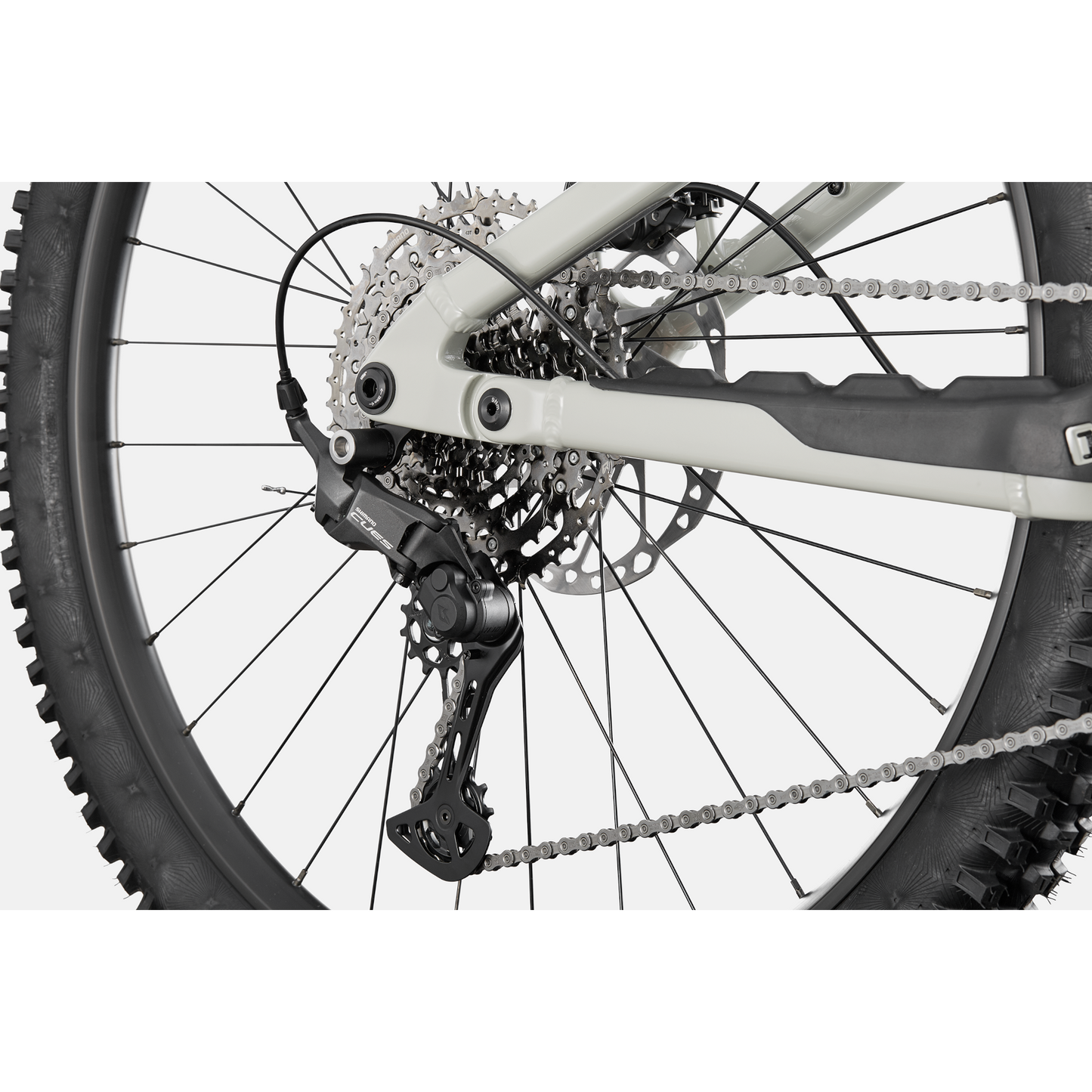

REAR DERAILLEUR: SHIMANO CUES U6000, LINKGLIDE
SHIFTERS: SHIMANO CUES U6000, 11-SPEED, LINKGLIDE
CHAIN: SHIMANO LG500, LINKGLIDE, 11-SPEED
CRANK: FSA BOSCH E-BIKE W/ 55MM CHAINLINE, 160MM, 34T
REAR COGS: SHIMANO CUES LG400, LINKGLIDE, 11-50, 11-SPEED
BRAKES: SHIMANO MT520 4-PISTON HYDRAULIC DISC, 203MM RT64 ROTORS
BRAKE LEVERS: SHIMANO MT501 HYDRAULIC DISC
RIMS: WTB ST I30 TCS, 30MM INNER WIDTH, 32H, TUBELESS COMPATIBLE
SPOKES: DT SWISS CHAMPION 2.0
TIRE SIZE: 2.4
WHEEL SIZE: 29
HUBS: (F) SHIMANO TC500, 15X110MM THRU-AXLE / (R) SHIMANO TC500, 12X148MM THRU-AXLE, CENTERLOCK
TIRES: (F) CONTINENTAL KRYPTOTAL-F, 29X2.4", ENDURO SOFT BLACK FOLDABLE / (R) CONTINENTAL KRYPTOTAL-R, 29X2.4", ENDURO SOFT BLACK FOLDABLE
HANDLEBAR: CANNONDALE 3 RISER, 6061 ALLOY, 25MM RISE, 8° SWEEP, 4° RISE, 800MM
STEM: CANNONDALE 1, 6061 ALLOY, 35.0, 40MM, 0°
GRIPS: CANNONDALE TAPERRIDGE
SADDLE: WTB SILVERADO MEDIUM
SEATPOST: CANNONDALE DOWNLOW DROPPER, INTERNAL ROUTING, 34.9, 150MM (S), 170MM (M), 200MM (L), 230MM (XL)
EXTRA: BOSCH POWERMORE RANGE EXTENDER COMPATIBLE

VIEW MORE DETAILS ON WWW.CANNONDALE.COM

*Please note that bike specifications are subject to change without prior notice.
