Campagnolo Zonda GT Wheelset
Pickup currently unavailable
CAMPAGNOLO ZONDA GT
Maximum all-road versatility: ideal either for wider rough terrain tires or narrower road solutions.
The ZONDA GT wheel is an optimum combination of the best Campagnolo technologies that offers maximum choice in the selection of tires to use with it, from gravel to road.
The iconic G3 spoke pattern and amazing anodized finish give the ZONDA GT aluminum wheel its refined looks and clearly identify the wheel as a Campagnolo product.

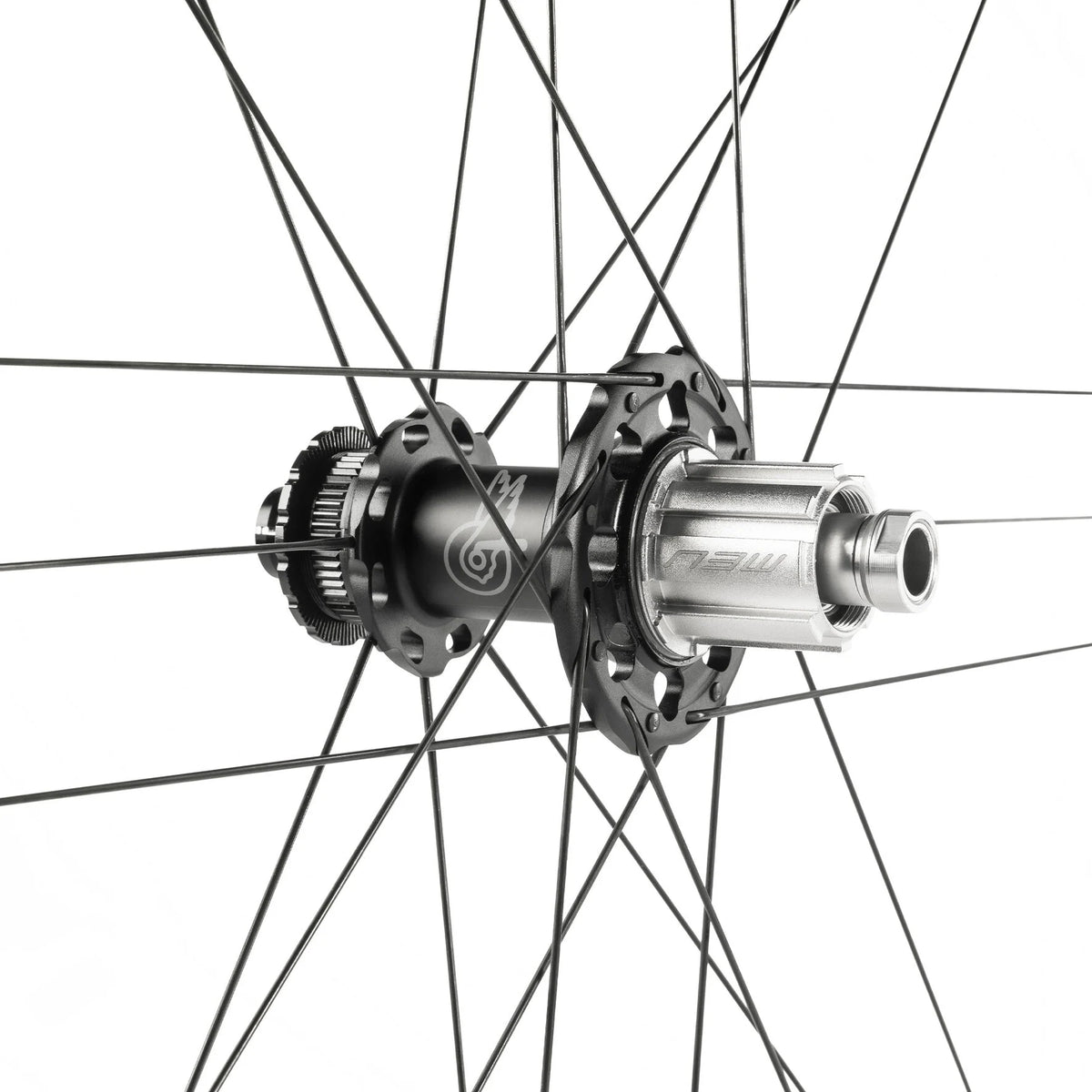

It weighs only 1,690 g thanks to its resistant yet lightweight aluminum structure and Campagnolo patented N3W freewheel hub.
An internal width of 23 mm expresses the enormous versatility of the ZONDA GT: a wheel that adapts either to wide tires for rough terrain and gravel trails, or narrower road tires.
Discover infinite new ways of cycling.
PRODUCT HIGHLIGHTS

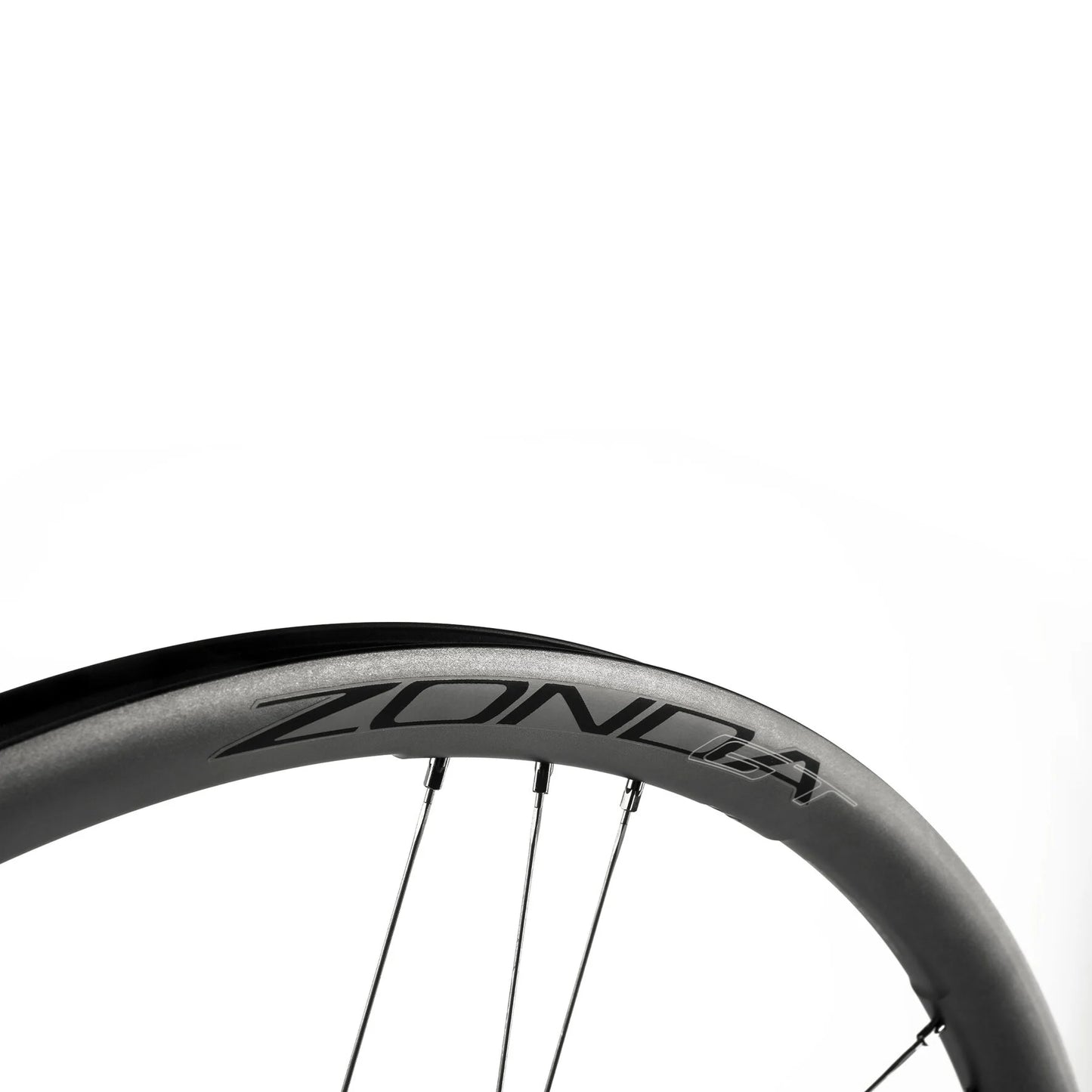

- Milled Rim: This process reduces rim perimeter weight, making the wheel extremely responsive.
- Rdb™ - Rim Dynamic Balance: the concept is simple and elegant: balancing the weight of the valve with the same weight on the diametrically opposite side.
- Momag™: the resulting lack of holes on the external rim profile means both stiffness and weight are improved.
- Spokes: G3™ technology applied also to the front wheel to improve performance with high braking power.
- Front Wheel Spokes: 24 spokes in stainless steel with circular cross-section bladed to 1.6 mm
- Rear Wheel Spokes: 24 spokes in stainless steel with circular cross-section bladed to 1.6 mm.
- Self-Locking Nipples: black anodized self-locking nipples outside the rim for easier maintenance.
- Cup And Cone Bearing Race: easily adjusted bearings reduce any play, maintaining performance over time and ensuring an optimum contact angle between the bearing and the surface.
- Adjusting Ring: for precise adjustment of hubs to avoid detecting play.
SPECIFICATIONS:
WEIGHT: 1690 G (780 F / 910 R)
SPOKES: 24 SPOKES WITH CIRCULAR CROSS-SECTION, BLADED TO 1.6 MM, G3 SPOKE PATTERN, SELF-LOCKING ALUMINUM NIPPLES, MO-MAG SYSTEM

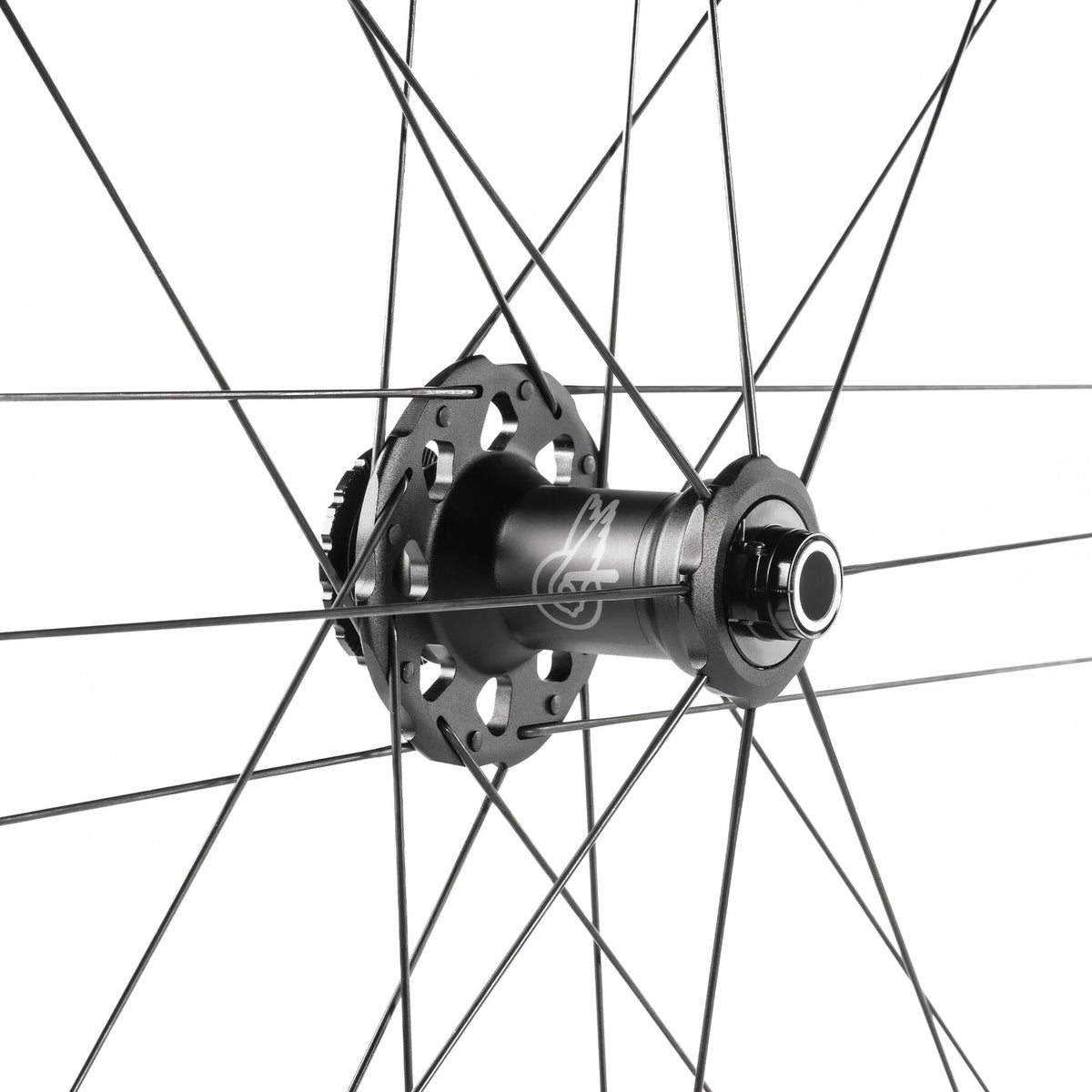

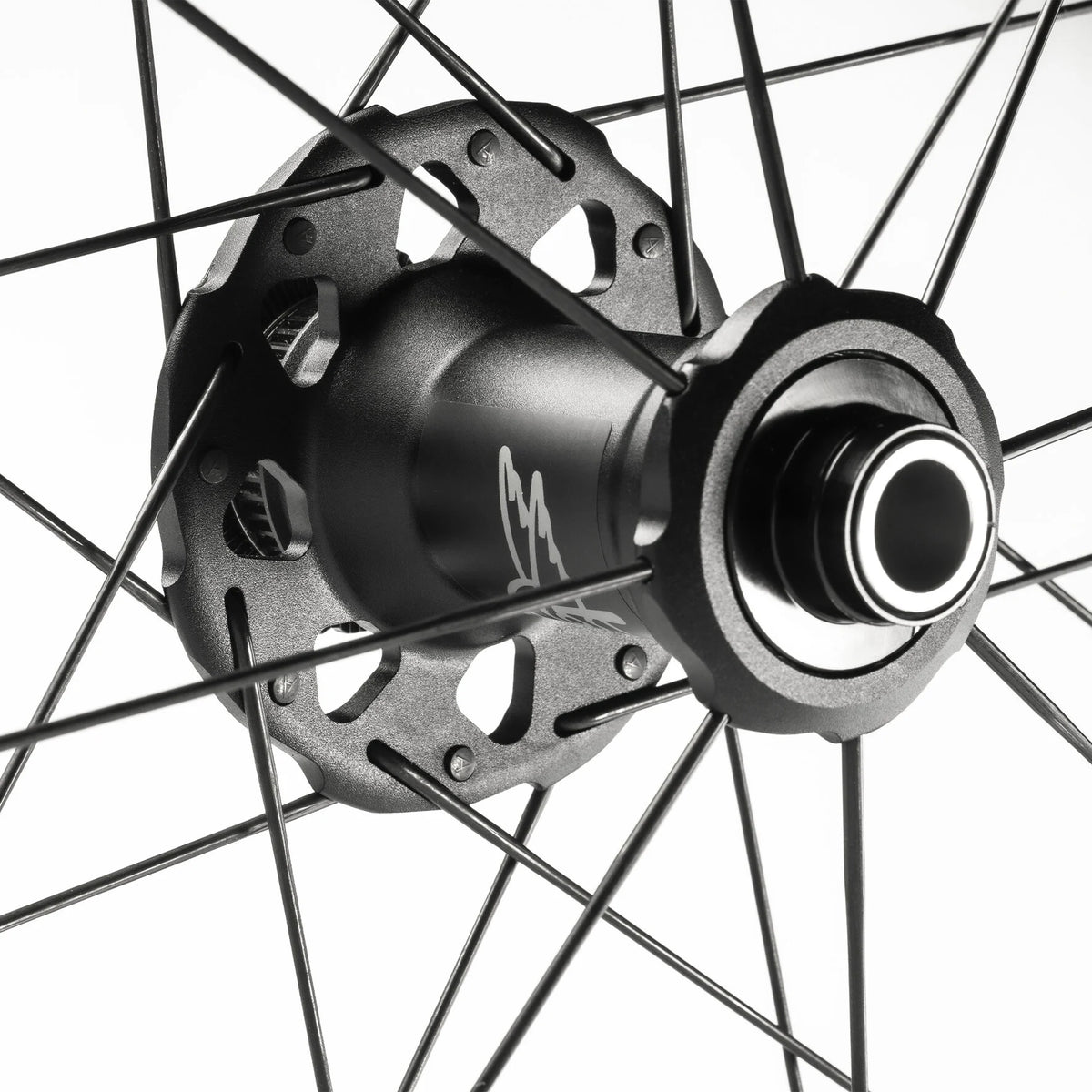

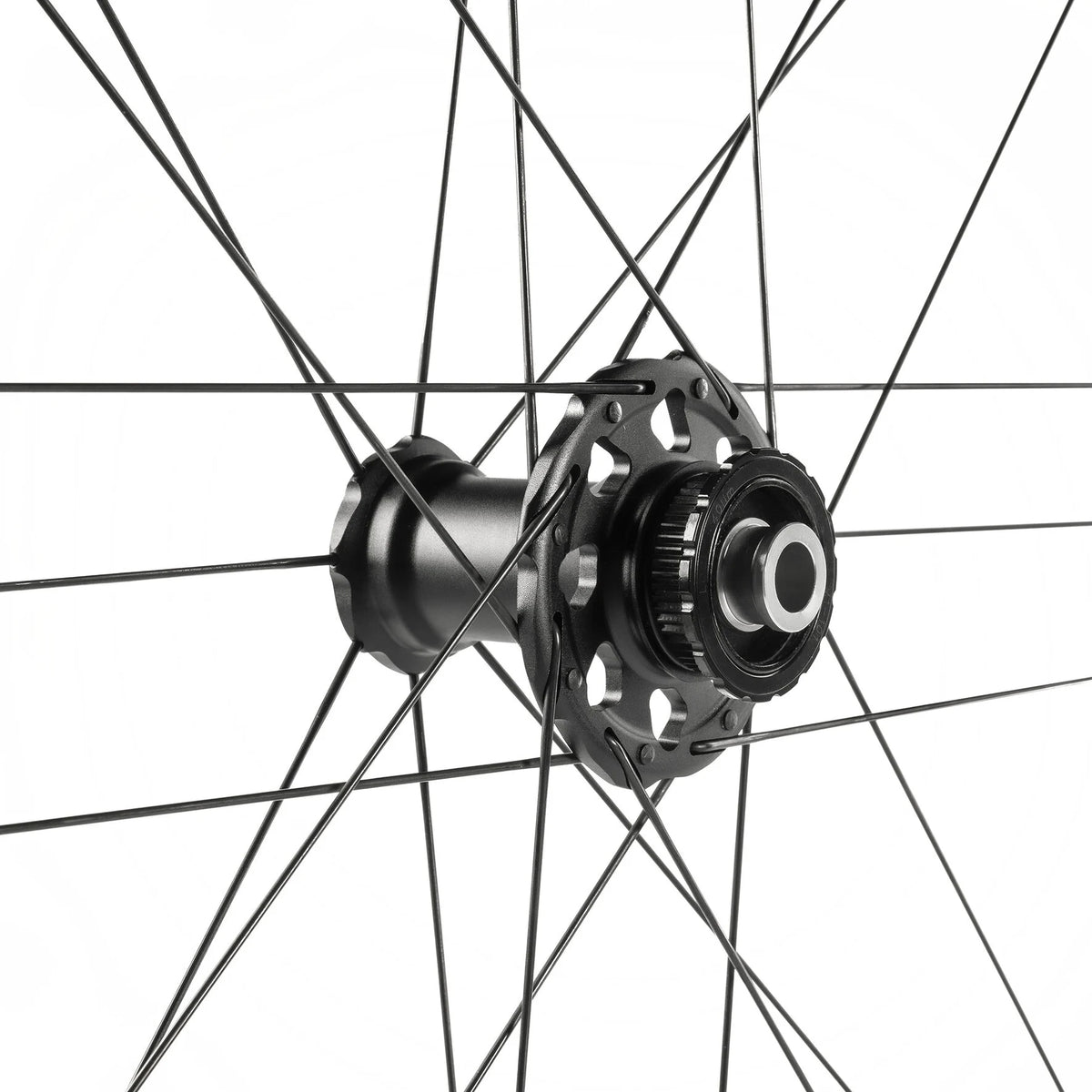

HUB: BLACK ANODIZED ALUMINUM HUB, MATT FINISH, CUP AND CONE BEARING RACE WITH STEEL BEARINGS, OVERSIZE FLANGE
FRAME/HUB SPACING: 100 MM FRONT, 142 MM REAR
AXLE TYPE: 12 MM THRU AXLES
BRAKING SYSTEM: AFS DISC
TYRES: 2-WAY-FIT WHEEL
RIM: BLACK ANODIZED ALUMINUM RIM, MATT FINISH, WELDED JOIN RIM WITH MILLING
RIM HEIGHT: 29.5 MM AND 28 MM IN MILLED ZONES
INTERNAL WIDTH: 23 MM
EXTERNAL WIDTH: 28 MM
TIRE SYSTEM: 2-WAY FIT
ASSEMBLY: THE ZONDA GT DB WHEEL IS COMPLETELY HAND ASSEMBLED BY A CAMPAGNOLO® SPECIALIST AND IS 100% CHECKED USING ELECTRONIC INSTRUMENTATION. THIS PROCEDURE GUARANTEES THE MAXIMUM PERFORMANCE AND RELIABILITY OF EVERY SINGLE CAMPAGNOLO® WHEEL.
COMES WITH: USER GUIDE
