CAMPAGNOLO ZONDA
Zonda is one of Campagnolo's best-selling aluminium wheels. It's packed with technological innovations that make it a highly sophisticated solution compared to what other brands offer for the same price.
The features of the Zonda™ wheel have been enhanced even further with a 17mm inner width (C17) that is compatible with more comfortable clincher tyres. It's also 10g lighter than the previous version.
Zonda is one of Campagnolo's best-selling aluminium wheels. It's packed with technological innovations that make it a highly sophisticated solution compared to what other brands offer for the same price.
A smaller hub diameter combined with the differentiated rim height (24/27mm) and the new self-locking nipples offer a front wheel that's smooth to steer and bump-resistant: racing on this model is a safe bet.
Compatible with Campagnolo FH Body 9/10/11/12 and FH Body HG 9/10/11/12.
PRODUCT HIGHLIGHTS

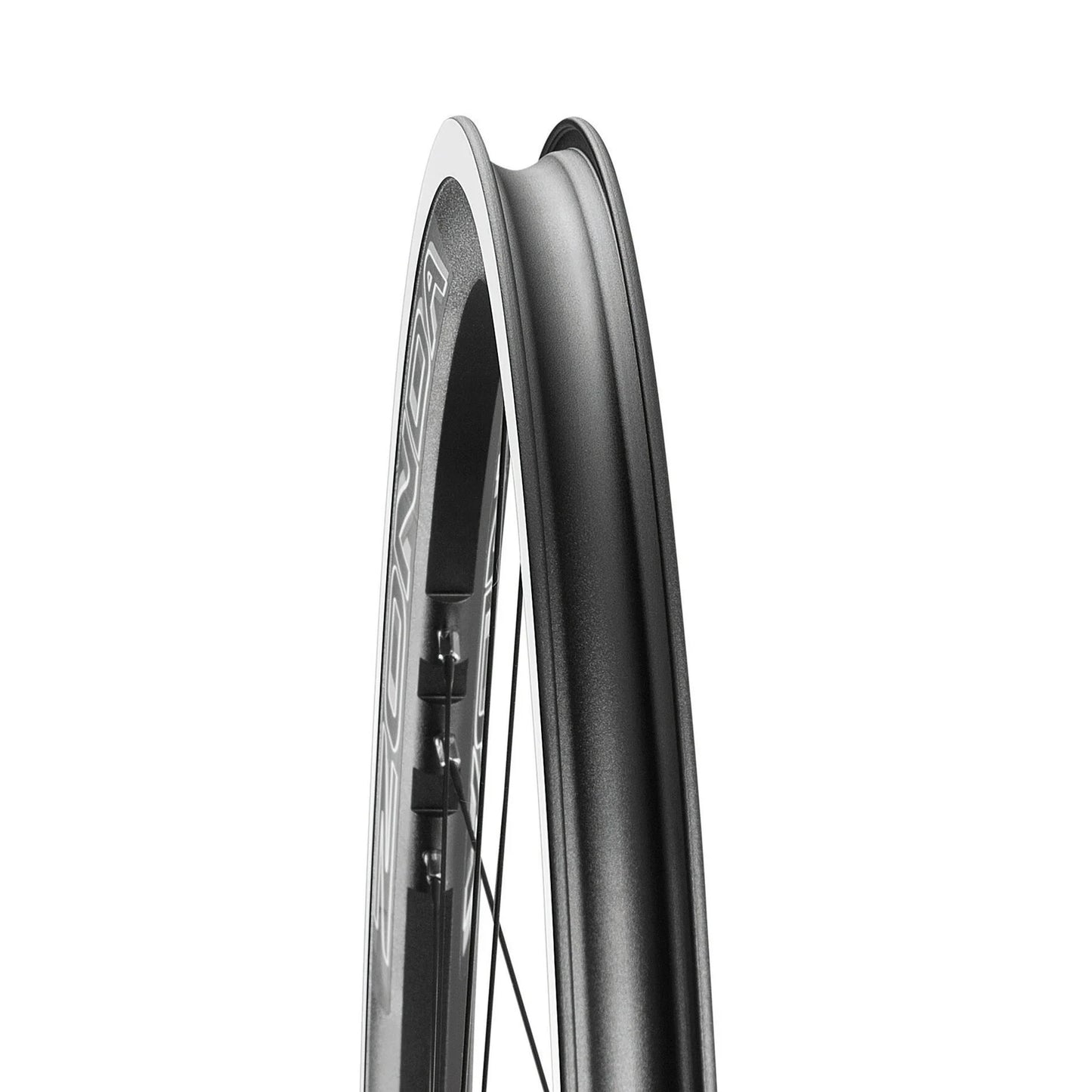

- MOMAG™: allows the external profile of the rim to be free of holes – increases structural resistance – makes rim tape unnecessary and reduces the weight of the wheel.
- MILLED RIM DIFFERENTIATED RIM HEIGHT FRONT (24 - 27 mm) AND REAR (27 - 30 mm)
- DYNAMIC BALANCE™
- SPOKES ANTI-ROTATION SYSTEM keeps the spokes in the position of maximum aerodynamic penetration.
- EXCLUSIVE MEGA-G3™ SPOKE PATTERN: perfect balance of spoke tension on both sides of the wheel. Reduces stress, increases transversal rigidity and the transmission of power to the wheel. Mega-G3™ eliminates vibrations even with “heavy” cyclists.
- SPOKES WITH AERODYNAMIC PROFILE:

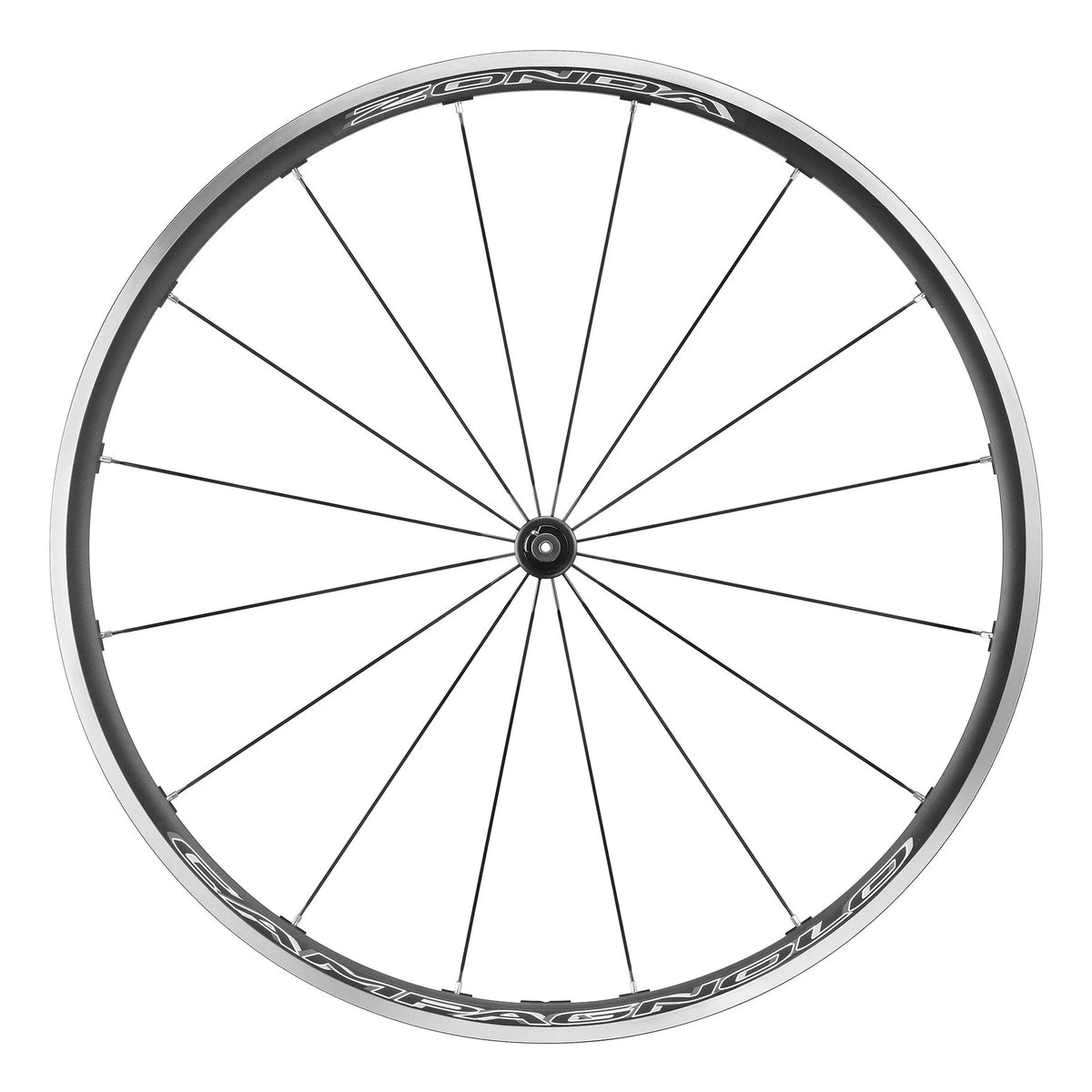

- Front: 16 spoke variable profile Aero radials in stainless steel.
- Rear: 21 spoke variable profile Aero in stainless steel with doubling on the cassette side.
- SELF-LOCKING NIPPLES: allow the ideal spoke tension to be maintained at length, eliminating friction on the rim. All this translates into constant high performance throughout the life of the product.

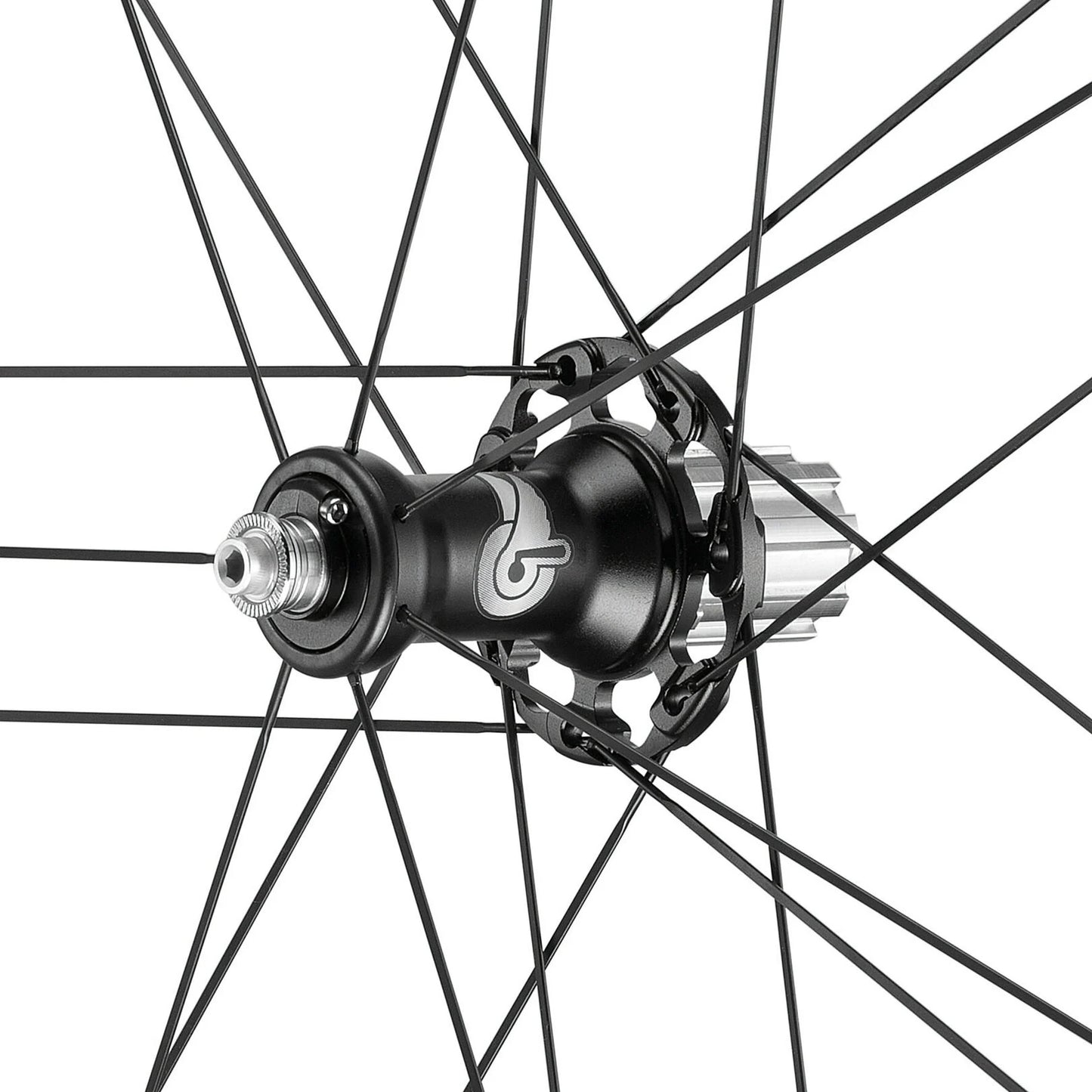

- REAR HUB WITH MEGA-G3™ OVERSIZED FLANGE: increases the torsional stiffness, increasing reactivity at each change of pace of the cyclist.
- ALUMINIUM HUB BODY: provides a high degree of lateral stiffness.
- ALUMINIUM AXLE: low weight, high stiffness.

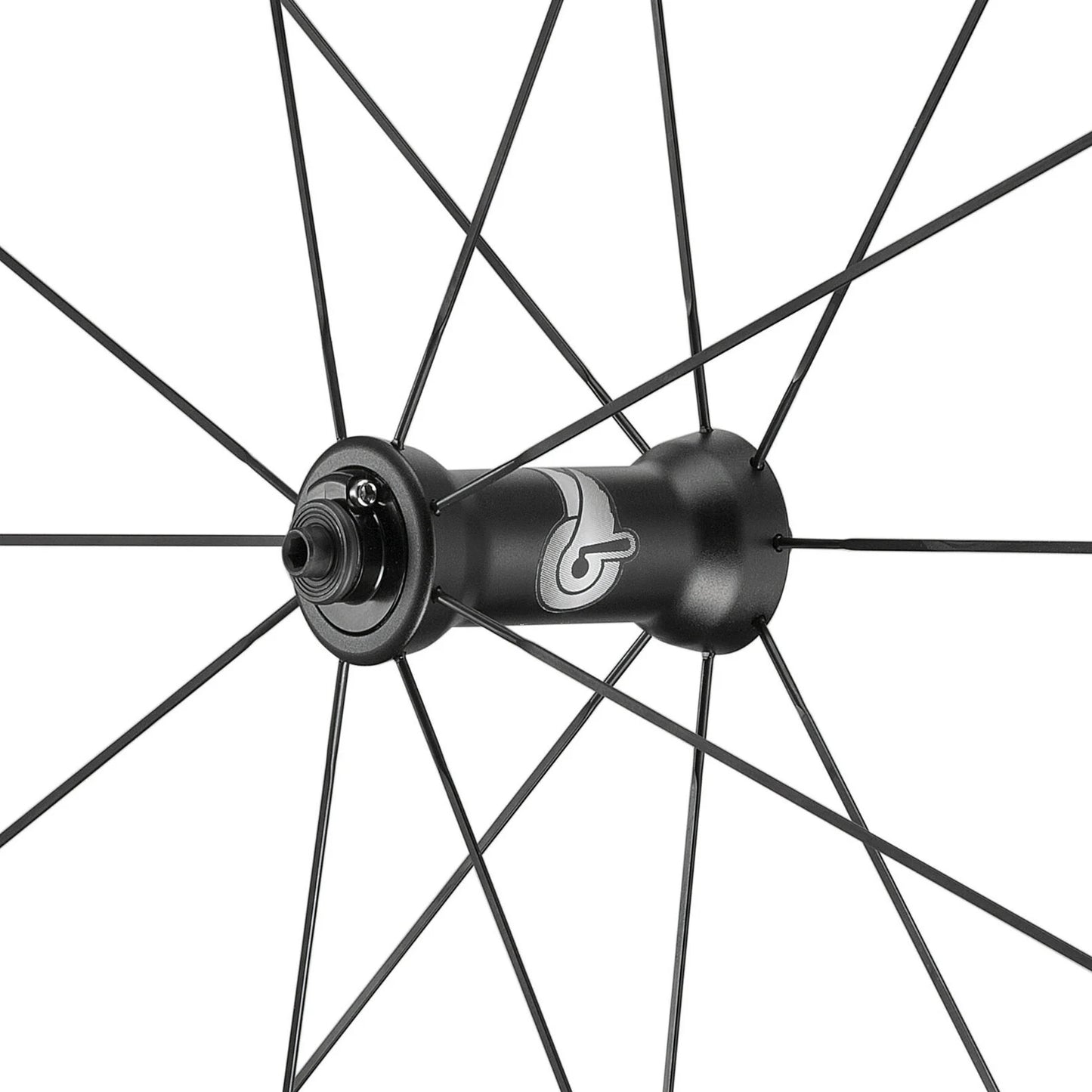

- DIFFERENTIATED HUB DIAMETER FRONT AND REAR: optimized for structural integrity and performance. Small front hub aids in aerodynamic efficiency.
- NEW ADJUSTING LOCK RING WITH MICROSETTING: for an accurate adjustment of the hub that prevents the creation of play.
SPECIFICATIONS:
WEIGHT: WHEEL FOR CLINCHER TYRE: 1540 G
SPOKE COUNT: 16 VARIABLE-SECTION STAINLESS-STEEL RADIAL AERO SPOKES (FRONT) AND 21 VARIABLE-SECTION STAINLESS-STEEL AERO SPOKES (REAR) WITH A 2:1 SPOKE RATIO ON THE DRIVE SIDE, RDB, STEEL SPOKES WITH AERODYNAMIC PROFILE, ANTY-ROTATION SYSTEM SELF-LOCKING NIPPLES
HUB: ALUMINIUM HUB WITH BLACK FINISH, STEEL BEARINGS, HUB EDGE: 100MM (FRONT), 130MM (REAR), OVERSIZE FLANGE, CUP-AND-CONE BEARING SYSTEM
TYRES: WHEEL FOR CLINCHER TYRE
RIM PROFILE HEIGHT: 24-27/27-30 MM, 17MM INNER WIDTH
RIM MATERIAL: ALLUMINIUM
GRAPHIC COLOURS: BRIGHT LABEL
ASSEMBLY: THE ZONDA™ WHEEL IS ENTIRELY HAND-ASSEMBLED BY A SPECIALISED CAMPAGNOLO® TECHNICIAN AND IS CHECKED IN EVERY TINY DETAIL WITH ELECTRONIC INSTRUMENTATION. THIS ENSURES MAXIMUM PERFORMANCE AND RELIABILITY FOR ALL CAMPAGNOLO® WHEELS.
COMES WITH: USER MANUAL, QUICK RELEASE WHEEL LOCKS
