FULCRUM RED ZONE 5
The Red Zone 5 is our new wheel designed specifically for cross country and marathon use.
The aim of the Fulcrum engineers has been to develop a product that is ideal for training and recreational fun, whilst being resistant and reliable for numerous uses.

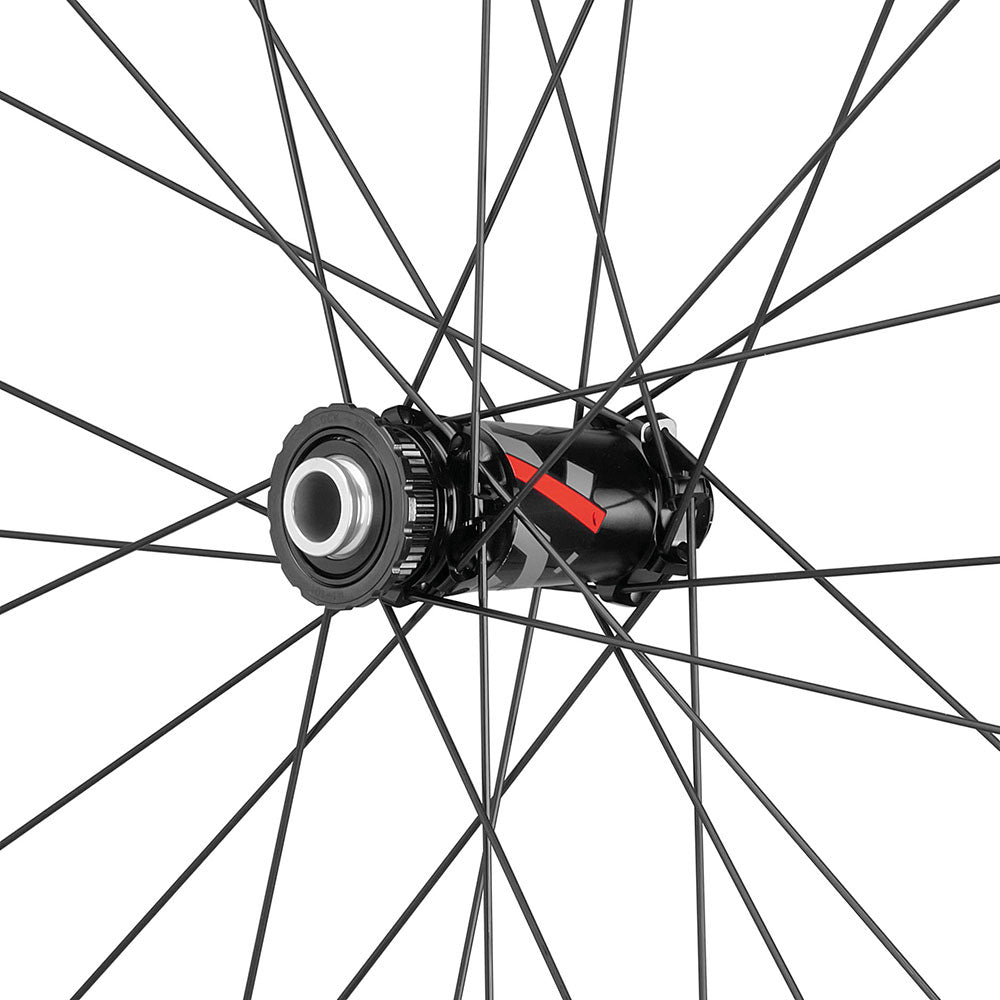

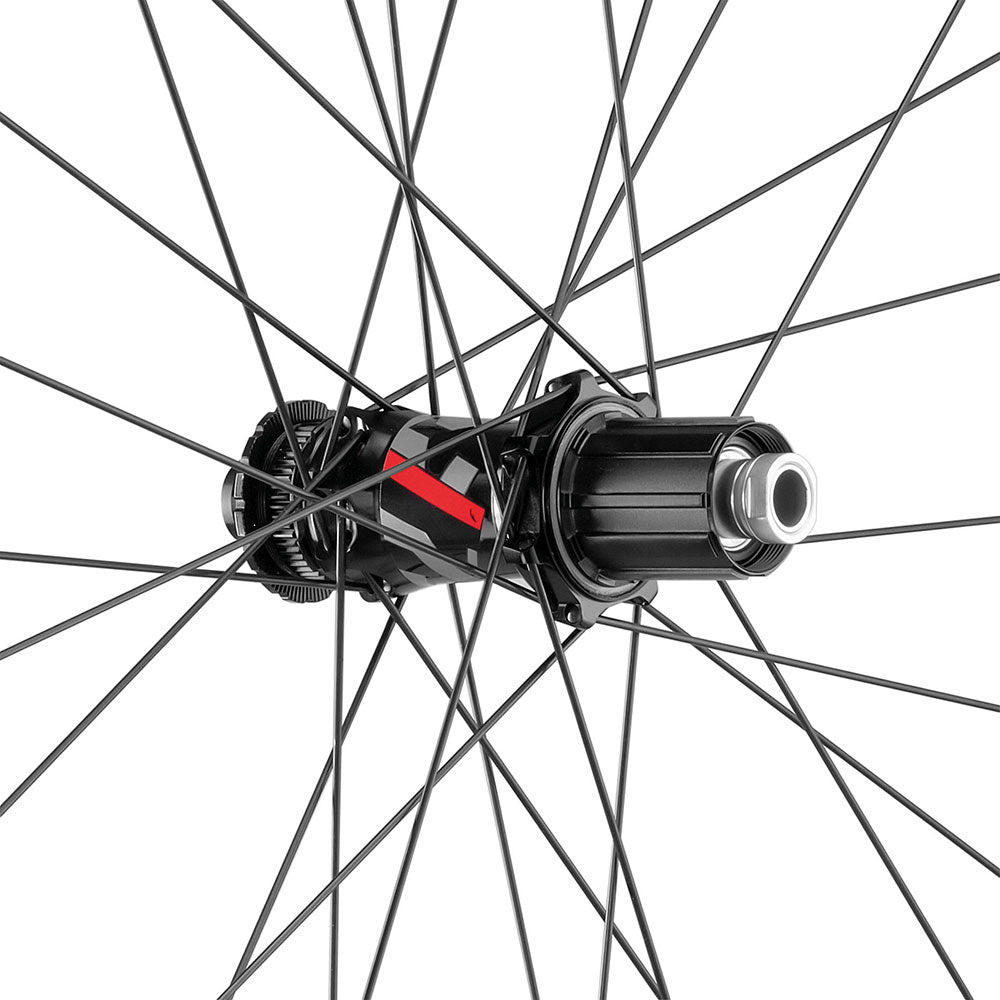

The new hubs share the same shell as the hubs used in the Red Zone Carbon and Red Zone 3. The differences are found in the axle and the bearings: in the Red Zone 5 we have used sealed, long-lasting and efficient bearings, which can be micro-adjusted with a specific adjustment ring.

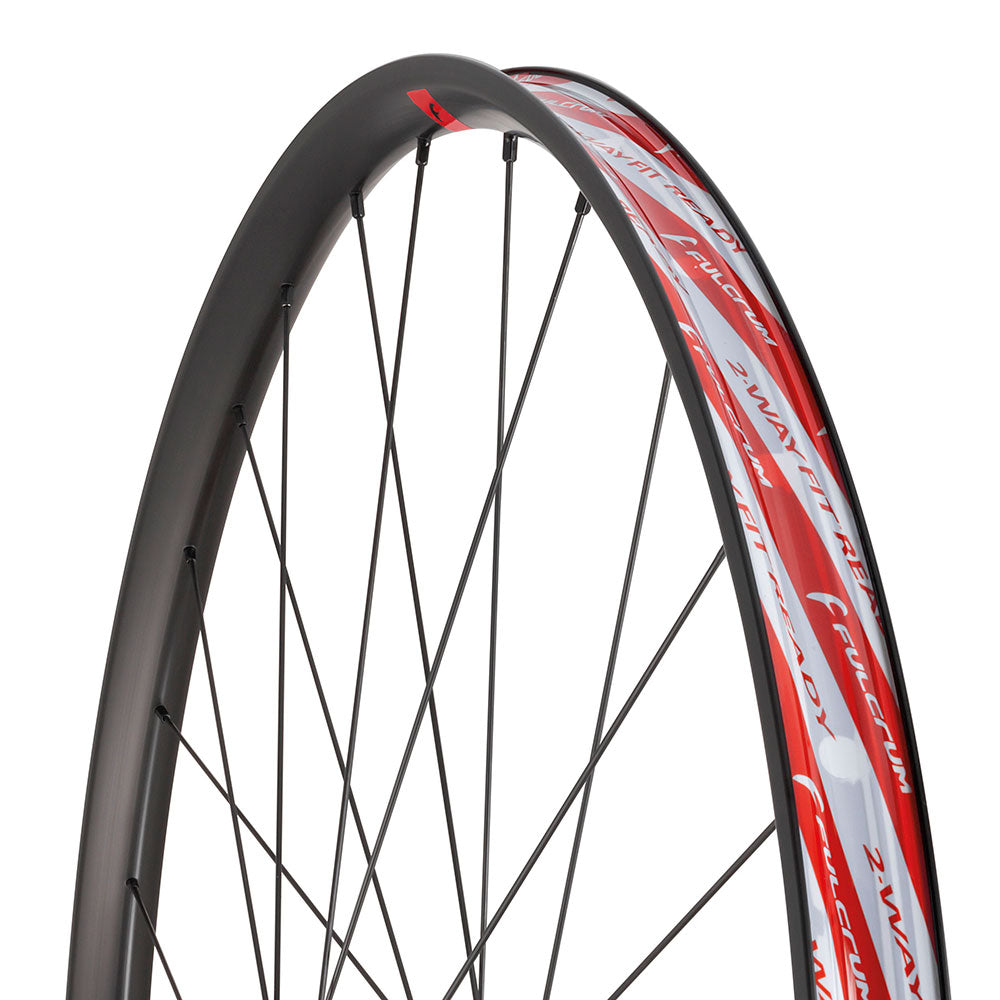

Red Zone 5 feature a 2-WAY FIT READY rim with a height of only 18.6 mm and a new asymmetrical section, which has been redesigned specifically to ensure the optimal balance of the spoke tension.
The width of the rim is wider compared to previous versions, so that they can be used with lower pressures, for improved grip and control in the most extreme conditions.

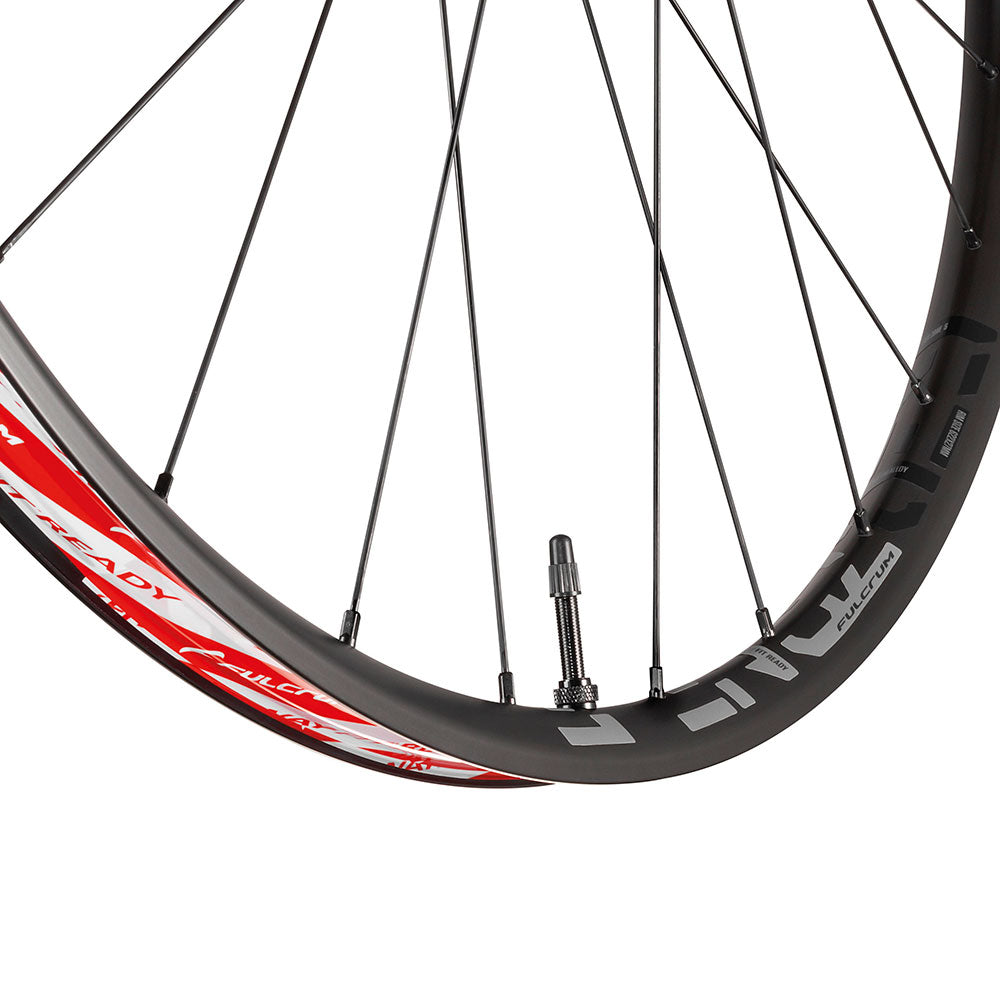

A tone-on tone design, with a partly glossy and partly matt finish, wraps the rim profile around the valve area, whilst the traditional red box, with the logo, can be found on the opposite side of the rim.
SPECIFICATIONS:
TYRE TYPE: 2-WAY FIT™ READY (CLINCHER/TUBELESS READY)
TYRE SIZE: 29”
DISCIPLINE: MTB
ASTM CATEGORY: 3
WEIGHT: 1840 G
RIM MATERIAL: ALUMINIUM
RIM MATERIAL DETAILS: SLEEVE JOINT
PROFILE HEIGHT: LOW
RIM HEIGHT: FRONT AND REAR: 18,6 MM, ASYMMETRIC
RIM WIDTH: 31,2 MM
INNER RIM WIDTH(CHANNEL): 27 MM
BRAKING SYSTEM: DISC BRAKE
BRAKING SURFACE/BRAKES OPTIONS: AFS™
FRONT AXLE COMPATIBILITY: HH15-110 BOOST
REAR AXLE COMPATIBILITY: HH12-148 BOOST
FRONT WHEEL SPOKES: 28
REAR WHEEL SPOKES: 28
SPOKES MATERIAL: STAINLESS STEEL
SPOKES PROFILE: ROUNDED, STRAIGHT PULL
NIPPLES: ALUMINUM
FRONT HUB: ALUMINUM FLANGES
REAR HUB: ALUMINUM FLANGES
BEARINGS: SEALED
OTHERS: ALUMINIUM AXLE
WEIGHT LIMIT (SYSTEM): 125 KG (RIDER,BIKE, EQUIPMENT AND LUGGAGE)
FWB OPTION: XD, HG, MS12
