Cannondale Moterra Carbon 2 Jade '26

CANNONDALE MOTERRA 2

A masterclass in capability. The Moterra 2 features a new, lightweight, full carbon frame with 150mm travel and a hard-charging 160mm RockShox Zeb Select fork for pinpoint handling. A blended Shimano XT/CUES U8000 drivetrain and Magura MT5 brakes combine with Bosch’s most powerful CX motor and 800Wh battery to extend every ride beyond expectation. Agile, composed, and ever-ready to push the limits of exploration.

PRODUCT HIGHLIGHTS

• A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
• Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
• Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
• Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
• Flawless shifting from Shimano’s high-end XT / CUES U8000 LinkGlide blended drivetrain
• Powerful, controllable stopping from Magura’s MT5 4-piston stoppers with 203mm rotors

SPECIFICATIONS:

FRAME: MOTERRA CARBON, 29" WHEELS, 150MM TRAVEL, PROPORTIONAL RESPONSE TUNED SUSPENSION, REMOVABLE DOWNTUBE BATTERY, ALLOY SKID PLATE, 55MM CHAINLINE, INTERNAL CABLE ROUTING, 148X12MM THRU-AXLE, UDH, 200MM NATIVE POST MOUNT BRAKE, 1.5” – 1.8” TAPERED HEADTUBE, 40MM TWO-BOLT KICKSTAND COMPATIBLE
FORK: ROCKSHOX ZEB SELECT, 160MM, CHARGER RC, DEBONAIR+, 15X110MM MAXLE, 44MM OFFSET
HEADSET: ACROS ICR, 1.5" TO 1.8", SEALED BEARINGS
REAR SHOCK: ROCKSHOX DELUXE SELECT+, DEBONAIR+, 2-POS MODE ADJUST, ADJUSTABLE REBOUND, 230X62.5MM

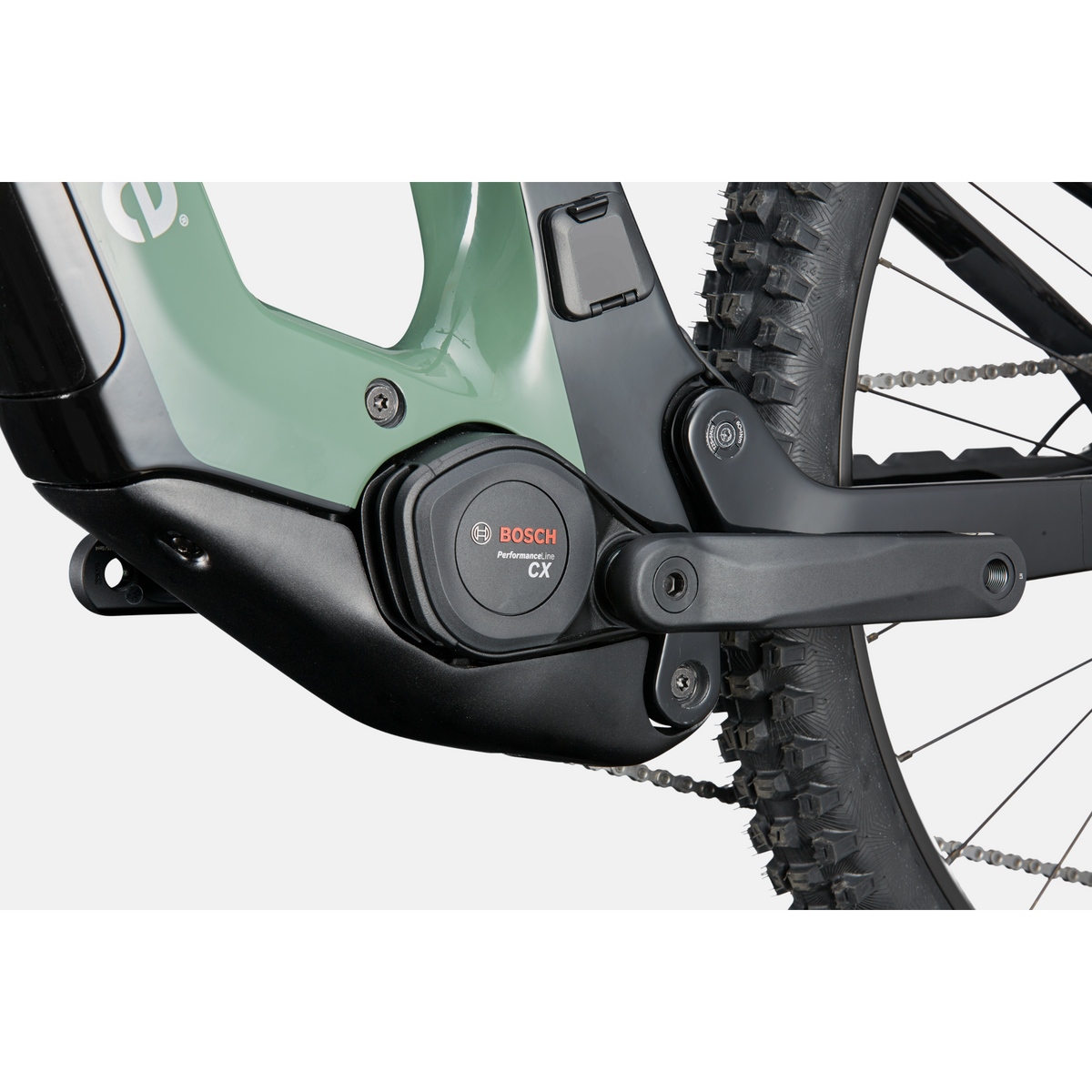

DRIVE UNIT: BOSCH PERFORMANCE LINE CX
BATTERY: BOSCH POWERTUBE, 800WH
CHARGER: BOSCH 4A

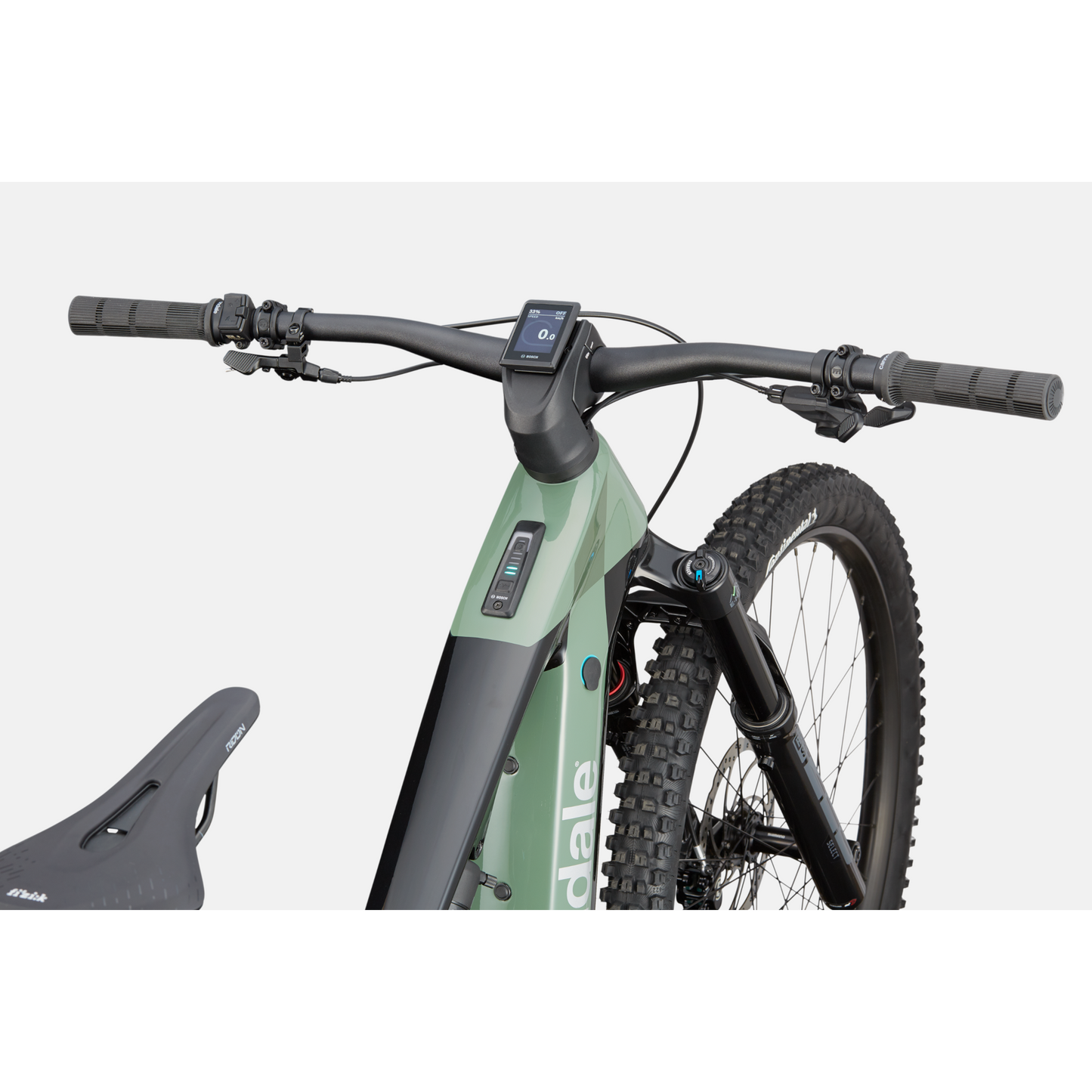

DISPLAY: TOP TUBE SYSTEM CONTROLLER W/ BOSCH KIOX 300 & MINI REMOTE

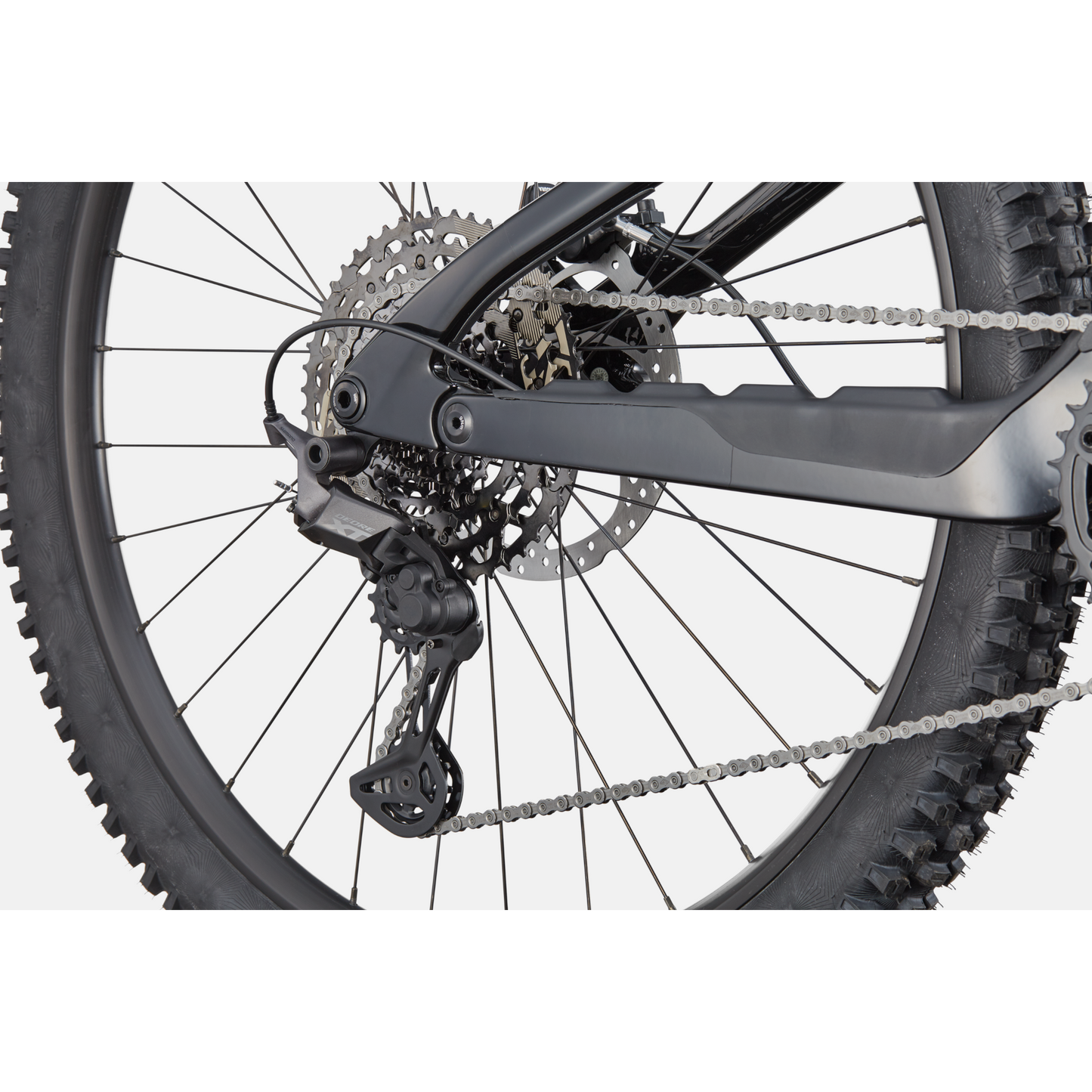

REAR DERAILLEUR: SHIMANO XT M8130, LINKGLIDE
SHIFTERS: SHIMANO CUES U8000, 11-SPEED, LINKGLIDE
CHAIN: SHIMANO LG500, LINKGLIDE, 11-SPEED
CRANK: FSA BOSCH E-BIKE W/ 55MM CHAINLINE, 160MM, 34T
REAR COGS: SHIMANO CUES LG700, LINKGLIDE, 11-50, 11-SPEED
BRAKES: MAGURA MT5 4-PISTON HYDRAULIC DISC, 203MM STORM ROTORS
BRAKE LEVERS: MAGURA MT5 HYDRAULIC DISC
RIMS: WTB ST I30 TOUGH TCS, 30MM INNER WIDTH, 32H, TUBELESS COMPATIBLE
SPOKES: DT SWISS CHAMPION 2.0
TIRE SIZE: 2.4
WHEEL SIZE: 29
HUBS: (F) SHIMANO TC500, 15X110MM THRU-AXLE / (R) SHIMANO TC500, 12X148MM THRU-AXLE, CENTERLOCK
TIRES: (F) CONTINENTAL KRYPTOTAL-F, 29X2.4", ENDURO SOFT BLACK FOLDABLE / (R) CONTINENTAL KRYPTOTAL-R, 29X2.4", ENDURO SOFT BLACK FOLDABLE
HANDLEBAR: CANNONDALE 3 RISER, 6061 ALLOY, 25MM RISE, 8° SWEEP, 4° RISE, 800MM
STEM: CANNONDALE TRAIL HEADSUP W/ INTEGRATED DISPLAY MOUNT, 3D FORGED 6061 ALLOY, 1-1/8", 45MM, 0°
GRIPS: CANNONDALE TAPERRIDGE
SADDLE: FIZIK TERRA AIDON X5, 145MM, WINGFLEX, S-ALLOY MOBIUS RAIL
SEATPOST: CANNONDALE DOWNLOW DROPPER, INTERNAL ROUTING, 34.9, 150MM (S), 170MM (M), 200MM (L), 230MM (XL)
EXTRA: BOSCH POWERMORE RANGE EXTENDER COMPATIBLE

VIEW MORE DETAILS ON WWW.CANNONDALE.COM

*Please note that bike specifications are subject to change without prior notice.
