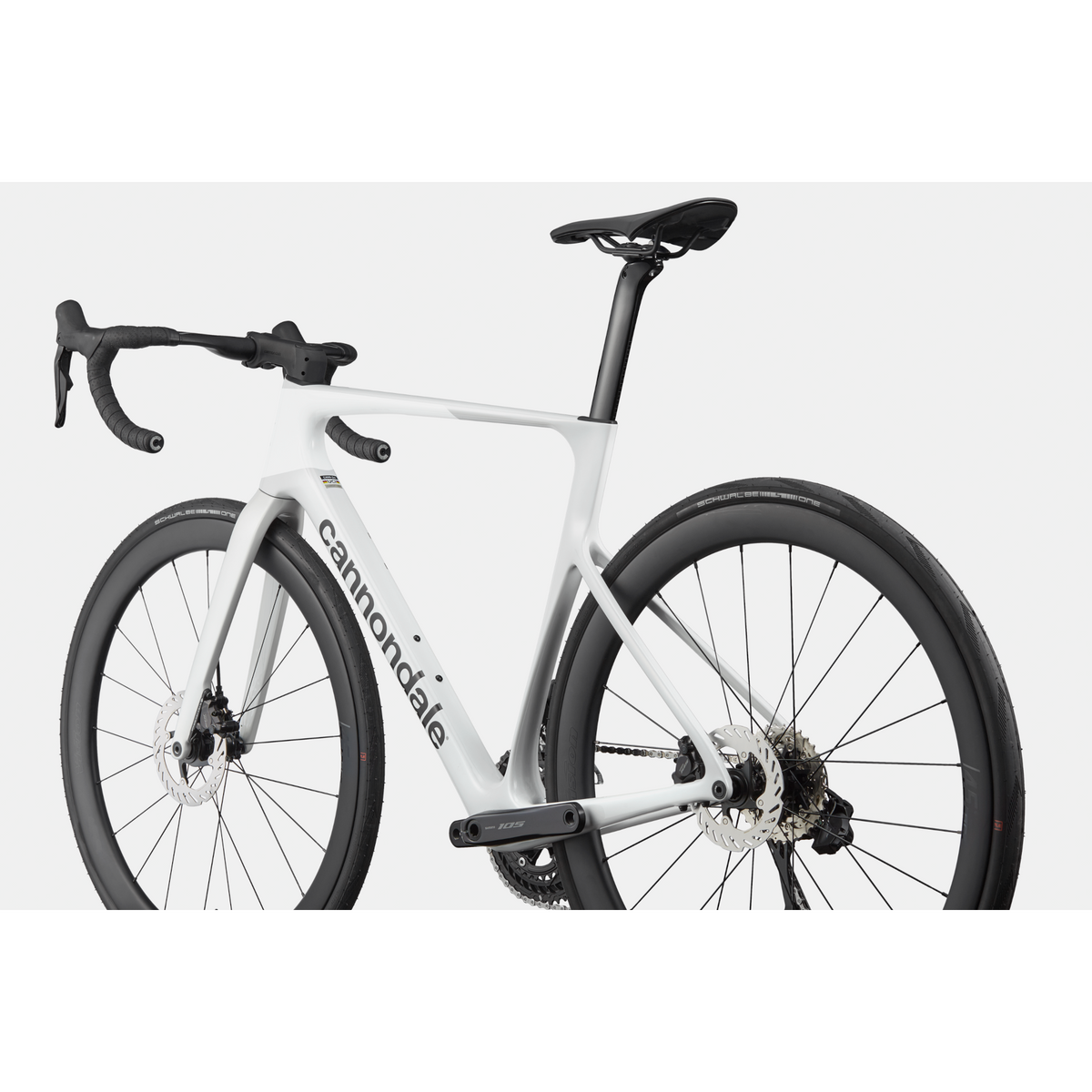

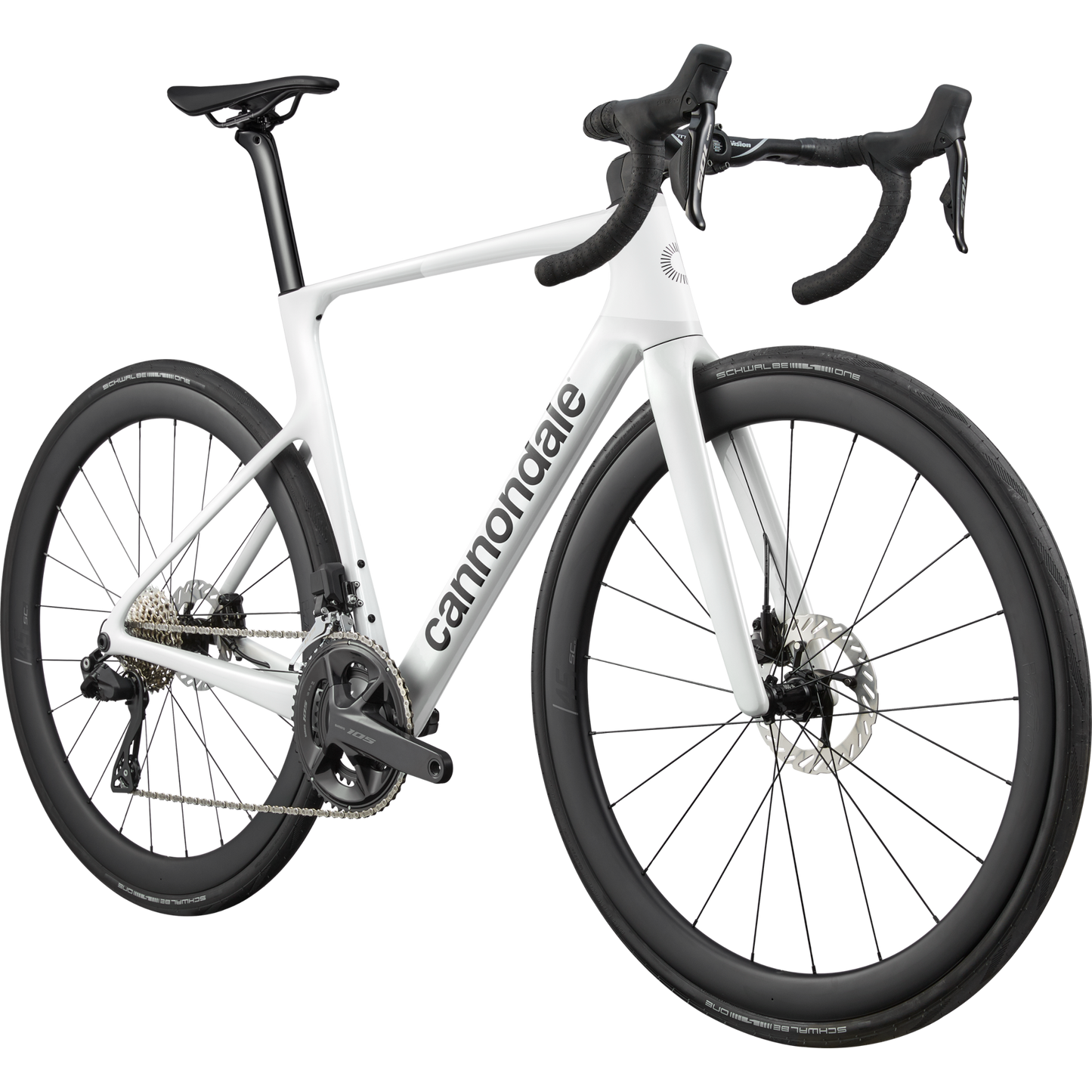

CANNONDALE SUPERSIX EVO 5
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.
Electronic precision meets proven race geometry. SuperSix EVO 5 combines the lightweight Gen 5 carbon frame with Shimano’s 105 Di2 electronic shifting and Vision’s racy SC45 carbon wheels. Vision Trimax Aero handlebars with our Conceal stem and Delta steerer keep the front end clean. A composed, stunning, and brilliantly fast platform for riders stepping up their game.
PRODUCT HIGHLIGHTS
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- Vision SC45 carbon wheelset - 45mm deep, exceptional performance value
- Shimano 105 Di2 12-speed - Shimano's workhorse high-performance electronic shifting road group
- Vision Trimax Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout
SPECIFICATIONS:
FRAME: SUPERSIX EVO CARBON, GEN 5, INTEGRATED CABLE ROUTING, 12X142 THRU-AXLE, BSA 68MM THREADED BB, FLAT MOUNT DISC, INTEGRATED SEAT BINDER, UDH
FORK: SUPERSIX EVO CARBON, GEN 5, INTEGRATED CROWN RACE, 12X100MM THRU-AXLE, FLAT MOUNT DISC, INTERNAL ROUTING, 1-1/8" TO 1-1/4" DELTA STEERER, 55MM OFFSET (44-54CM), 45MM OFFSET (56-61CM)
HEADSET: INTEGRATED, 1-1/8" - 1-1/4"

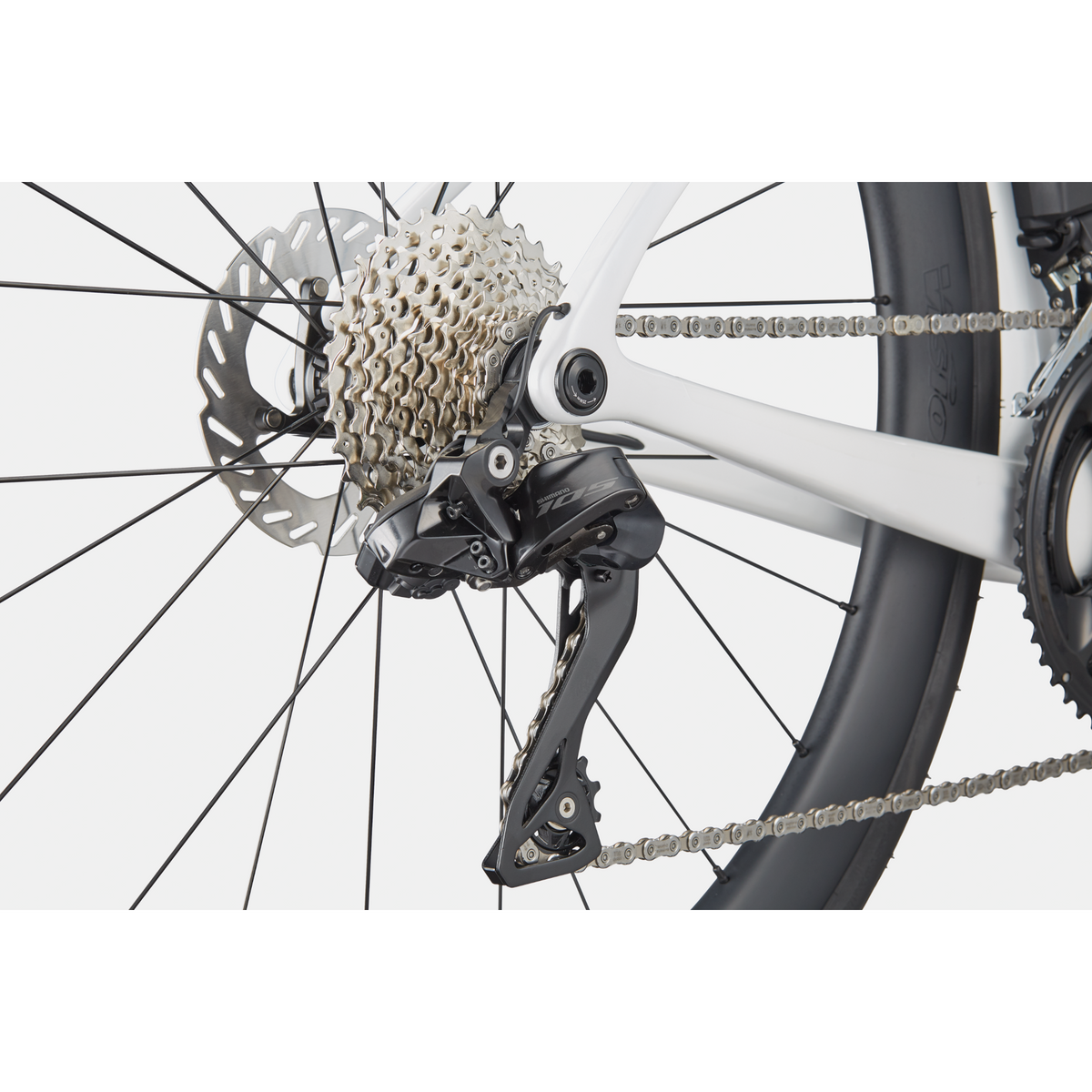

REAR DERAILLEUR: SHIMANO 105 DI2 R7150, 12-SPEED
FRONT DERAILLEUR: SHIMANO 105 DI2 R7170
SHIFTERS: SHIMANO 105 DI2 R7170, WIRELESS, 2X12-SPEED
CHAIN: SHIMANO 105, 12-SPEED

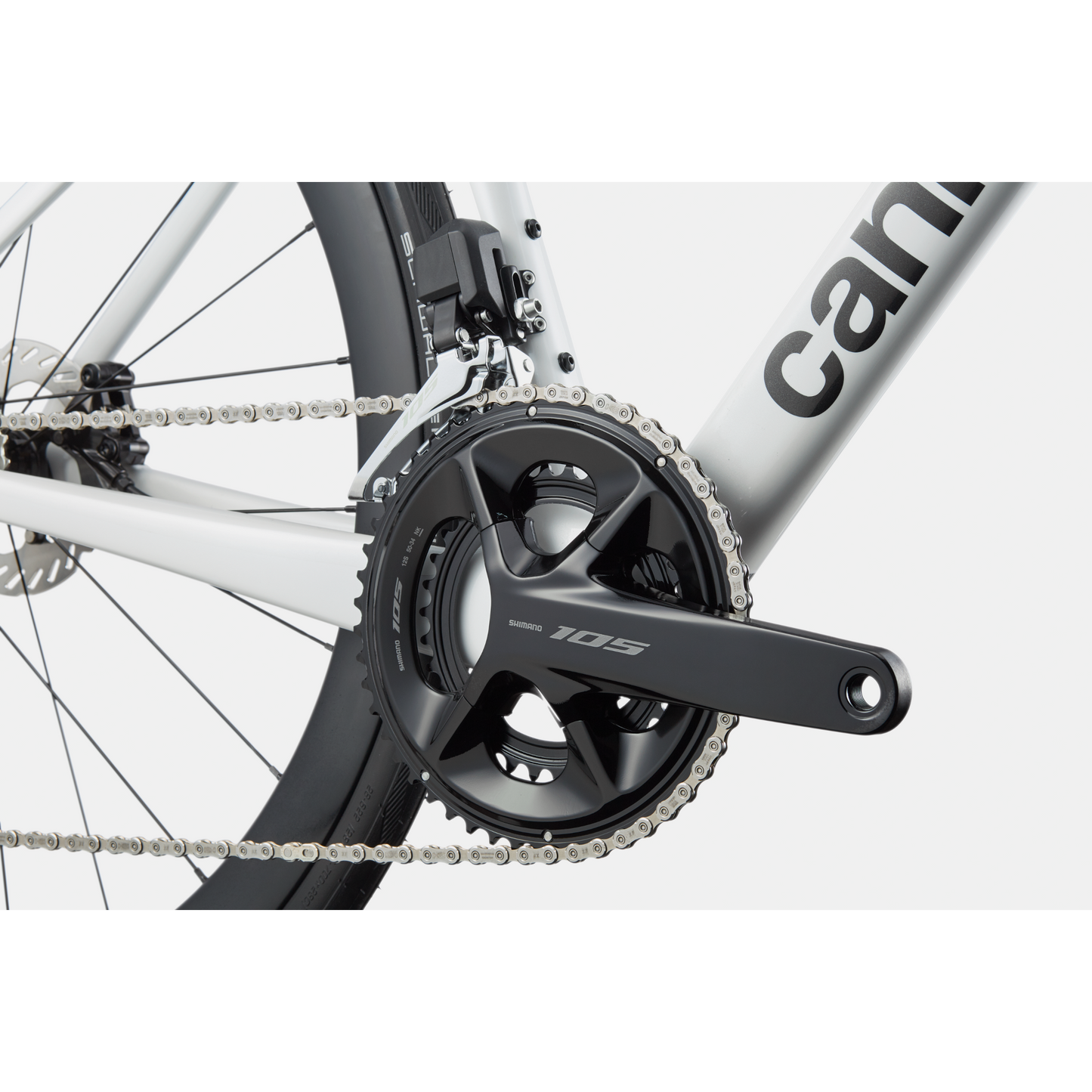

CRANK: SHIMANO 105 7100, 50/34: 165MM (44-50CM), 170MM (52-56CM), 172.5 (58-61CM)
REAR COGS: SHIMANO 105 R7100, 11-34, 12-SPEED
BOTTOM BRACKET: SHIMANO BB-RS500, BSA 68
BRAKES: SHIMANO 105 R7170 HYDRAULIC DISC, 160/160MM CL700 ROTORS

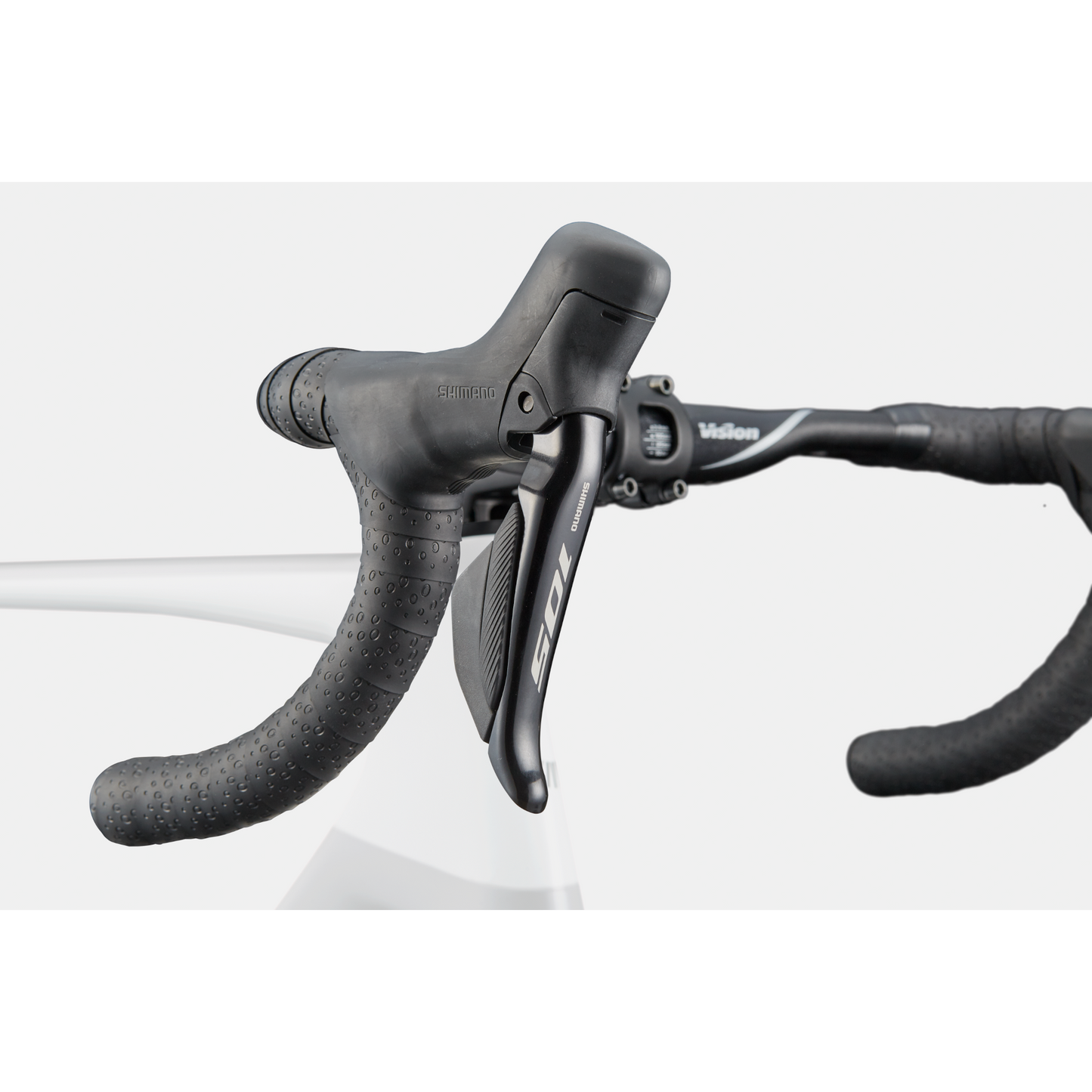

BRAKE LEVERS: SHIMANO 105 DI2 R7170 HYDRAULIC DISC
RIMS: VISION SC45 I23, CARBON, 23MM INNER WIDTH, 45MM DEPTH
SPOKES: 2:1 AERO BLADED DIRECT PULL
TIRE SIZE: 28
WHEEL SIZE: 700C
HUBS: VISION, CENTERLOCK, (F) 12X100MM, (R) VISION, 12X142MM
TIRES: SCHWALBE ONE TLR, 700X28C, TUBELESS READY

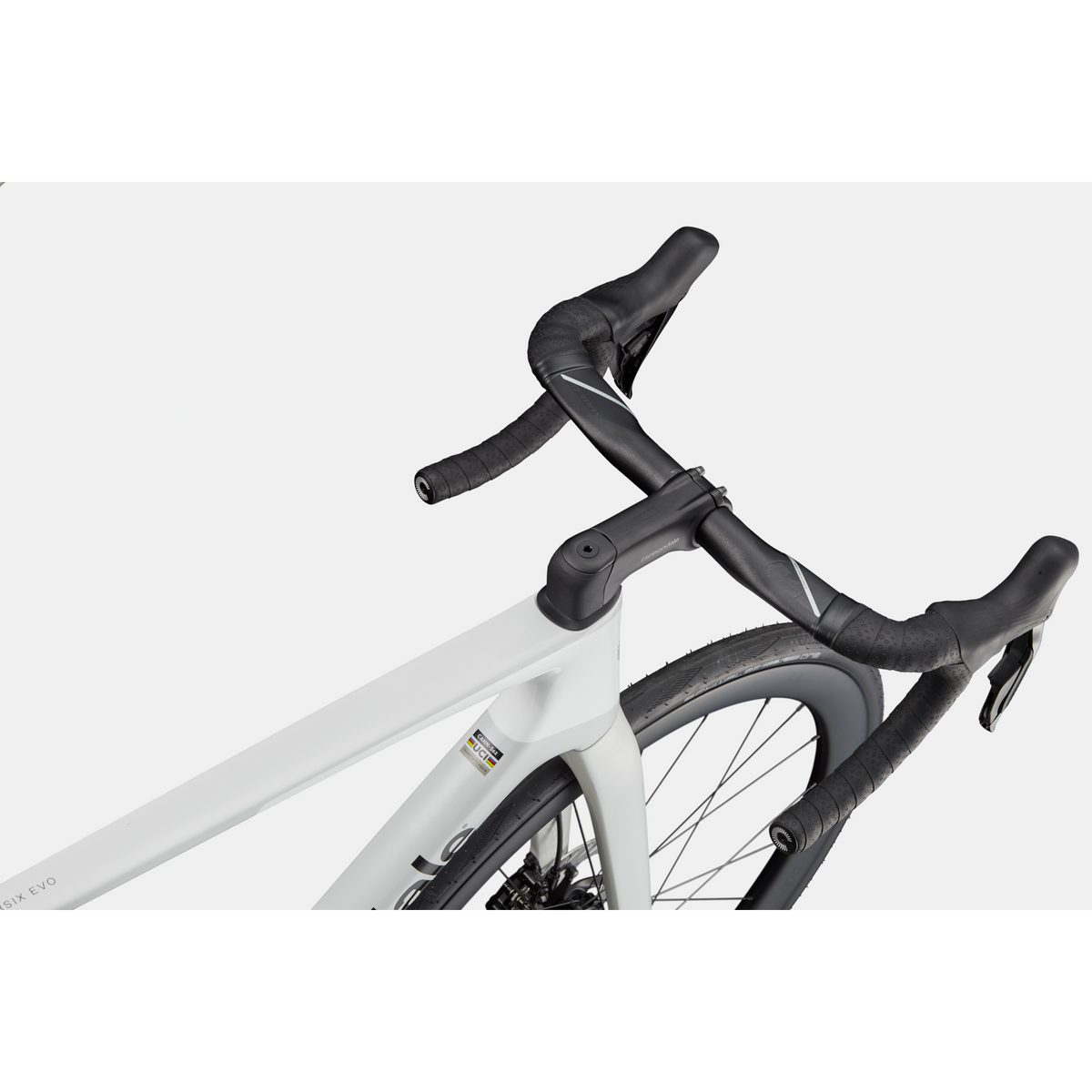

HANDLEBAR: VISION TRIMAX AERO: 400MM (44-56), 420MM (58-61)
STEM: CANNONDALE C1 CONCEAL, ALLOY, 31.8, -6°: 80MM (44CM), 90MM (48-52CM), 100MM (54-56CM), 110MM (58-61CM)
GRIPS: CANNONDALE BAR TAPE, 3.5MM
SADDLE: FIZIK VENTO ANTARES R7, 140MM
SEATPOST: CANNONDALE C1 AERO 40 CARBON V2, 365MM, 0MM OFFSET (44-54CM), 15MM OFFSET (56-61CM)
EXTRA: TUBELESS VALVES, SHIMANO EC300 CHARGING CONNECTOR, CONCEAL STEM ACCESSORY MOUNT
VIEW MORE DETAILS ON WWW.CANNONDALE.COM
*Please note that bike specifications are subject to change without prior notice.
