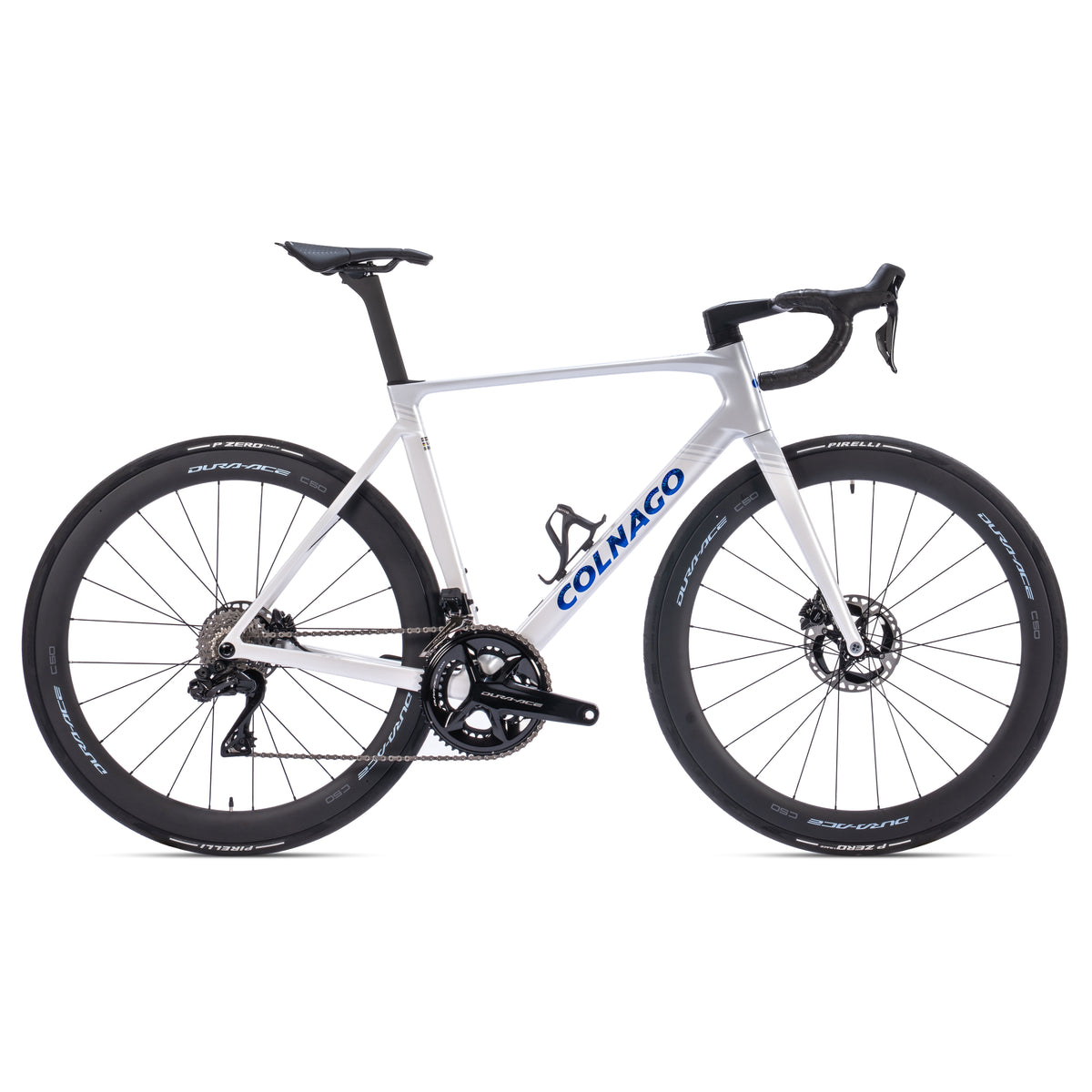

Colnago V5RS White Blue

COLNAGO V5RS

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.

THE LIGHTEST COLNAGO EVER

The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.

THINNER PROFILES

The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.

NARROW FRONTAL AREA

The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.

STIFF AND RESPONSIVE

The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.

MORE PRECISE STEERING

The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.

ABSOLUTE CARBON QUALITY.

Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.

The V5Rs has been designed to improve every aspect of riding: weight, aerodynamics, rigidity and handling, taking into account the real needs of racing. The only goal: to win.

SPECIFICATIONS:

SERIES: V SERIES
MODEL: V5RS
WEIGHT: 685G
WEIGHT LIMIT: 110 KG

FRAMESET

FRAME (MATERIAL): COLNAGO V5RS MONOCOQUE CARBON FRAME
FORK (MATERIAL, SECTION NOTES): CARBON FORK FOR DISC BRAKES, INTEGRATED CABLES, SEMI-CIRCULAR SECTION.
HEADSET: 1"1/8 AND 1"1/4 - SLT TREATED BEARINGS
SEATPOST: STANDARD OPTION - CARBON SEATPOST, 15MM OFFSET, SOLD SEPARATELY - CARBON SEATPOST, 0 MM OFFSET
THROUGH AXLES DIAMETER: 12 MM. LENGTH 100 MM (FRONT) - 142 MM (REAR)

COMPLETE BIKE SPECIFICATIONS:

CAMPAGNOLO SUPER RECORD WRL

SHIFTING SYSTEM: CAMPAGNOLO SUPER RECORD WRL (WIRELESS) DB 12
FRONT DERAILLEUR: CAMPAGNOLO SUPER RECORD WRL - FD23-SR12WRL
REAR DERAILLEUR: CAMBIO CAMPAGNOLO SUPER RECORD WRL12V - RD23-SR12WRL
CHAIN: SUPER RECORD WRL 12S
CHAINRINGS: OPTION 1 (DEFAULT) 48-32T, OPTION 2 45-29T
CASSETTE: OPTION 1 (DEFAULT) 10-27T, OPTION 2 10-29T
BOTTOM BRACKET: BSA (ENGLISH THREADED BOTTOM BRACKET) CAMPAGNOLO
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 420 - 485) - 170 MM, OPTION 2 (STANDARD FOR SIZES 510 - 530) - 172.5 MM, OPTION 3 (STANDARD FOR SIZES 550 - 570) - 175 MM
BRAKES: CAMPAGNOLO SUPER RECORD WRL - STANDARD FLAT MOUNT
DISC SIZE: 160 MM FRONT/ 140 MM REAR
BRAKE LEVER: CAMPAGNOLO ERGOPOWER DB SUPER RECORD WRL 12V
BRAKE CALIPER: CAMPAGNOLO STANDARD FLAT MOUNT - BRAKE PADS: DB310
WHEELS: BORA ULTRA WTO 45 DISC BRAKE
MATERIAL: H.U.L.C. CARBON FIBER UD WITH HIGH RESISTANCE PROPERTIES - C-LUX FINISHING
RIM HEIGHT: 45 MM
INTERNAL CHANNEL WIDTH: 21 MM
HUBS: CARBON HUBS, CULT™ CERAMIC BEARINGS, INTEGRATED FLANGES
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: ENVE WS SES 3.4 C, PIRELLI PZERO RACE TLR 700X28, SHIMANO DURA ACE C50, PIRELLI PZERO RACE 700X28, FULCRUM WIND 420 DB, PIRELLI PZERO RACE 700X28, FULCRUM RACING 600 DB, PIRELLI P7 SPORT 700X28
MAXIMUM TYRE SIZE: 32 MM (NOMINAL WIDTH)
SADDLE: SCRATCH M5 NACK 140 HARD BLACK, SELLE ITALIA SLR BOOST SUPERFLOW CARBON RAIL (SUBJECT TO STOCK AVAILABILITY)
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - REGULAR GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK OR COLNAGO WT23 (FOR WT24 COLOR SCHEME ONLY)
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

SHIMANO DURA ACE DI2

SHIFTING SYSTEM: SHIMANO DURA ACE R9270 DI2 DISC - 12V
FRONT DERAILLEUR: SHIMANO DURA ACE FD-R9250
REAR DERAILLEUR: SHIMANO SHADOW RD-R9250 12V
CHAIN: SHIMANO CN-M9100 12V
CHAINRINGS: OPTION 1 (DEFAULT) 52-36T, OPTION 2 50-34T
CASSETTE: OPTION 1 (DEFAULT) 11-30T, OPTION 2 11-34T
BOTTOM BRACKET: BSA (ENGLISH THREADED BOTTOM BRACKET) SHIMANO
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 420 - 485) 170 MM, OPTION 2 (STANDARD FOR SIZES 510 - 530) 172.5 MM, OPTION 3 (STANDARD FOR SIZES 550 - 570) 175 MM
BRAKES: SHIMANO DURA ACE R9270, 160 MM FRONT / 140 MM REAR, RT-CL900 ROTORS
DISC SIZE: 160 MM FRONT/ 140 MM REAR - RT-CL900 ROTORS
BRAKE LEVER: SHIMANO DURA-ACE ST-R9270
BRAKE CALIPER: STANDARD FLAT MOUNT
WHEELS: OPTION 1 ENVE WS SES 3.4 C, OPTION 2 SHIMANO DURA ACE C50 WHR9270, OPTION 3 FULCRUM RACING WIND 420 DB, OPTION 4 FULCRUM RACING 600 DB
MATERIAL: ENVE WS SES 3.4 C CARBON, SHIMANO DURA ACE C50 CARBON, FULCRUM WIND 420 DB CARBON (FF80), FULCRUM RACING 600 DB ALLUMINIUM
RIM HEIGHT: ENVE WS SES 3.4 C FRONT: 39 MM - REAR: 43 MM, SHIMANO DURA ACE C50 50 MM, FULCRUM WIND 420 DB 42 MM, FULCRUM RACING 600 DB 24 MM
INTERNAL CHANNEL WIDTH: ENVE WS SES 3.4 C 25 MM, SHIMANO DURA ACE C50 21 MM FULCRUM WIND 420 DB 23 MM, FULCRUM RACING 600 DB 20 MM
HUBS: ENVE WS SES 3.4 C ENVE INNERDRIVE™ PREMIUM STRAIGHT-PULL, SHIMANO DURA ACE C50 E-THRU CONTACT HUB, FULCRUM WIND 420 DB ALUMINUM, LOW FLANGES. SEALED BEARING, ADJUSTABLE, FULCRUM RACING 600 DB ALUMINUM, ALUMINUM FLANGES SEALED CARTRIDGE BEARINGS
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: ENVE WS SES 3.4 C PIRELLI PZERO RACE TLR 700X28, SHIMANO DURA ACE C50 PIRELLI PZERO RACE 700X28, FULCRUM WIND 420 DB PIRELLI PZERO RACE 700X28, FULCRUM RACING 600 DB
PIRELLI P7 SPORT 700X28
MAXIMUM TYRE SIZE: 32 MM (NOMINAL WIDTH)
SADDLE: "PROLOGO" PROLOGO DIMENSION, "SELLE ITALIA" NOVUS MG (SUBJECT TO STOCK AVAILABILITY)
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - REGULAR GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK OR COLNAGO WT23 (FOR WT24 COLOR SCHEME ONLY)
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

SRAM RED ETAP AXS

SHIFTING SYSTEM: SRAM RED ETAP AXS DISC 12V
FRONT DERAILLEUR: SRAM RED ETAP AXS - FD-RED-E-D1
REAR DERAILLEUR: SRAM RED ETAP AXS - RD-RED-E-D1
CHAIN: RED CHAIN - CN-RED-D1
CHAINRINGS: 48-35T
CASSETTE: OPTION 1 (DEFAULT) 10-28T, OPTION 2 10-30T
BOTTOM BRACKET: BSA (ENGLISH THREADED BOTTOM BRACKET) SRAM DUB
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 420 - 485) 170 MM, OPTION 2 (STANDARD FOR SIZES 510 - 530) 172.5 MM, OPTION 3 (STANDARD FOR SIZES 550 - 570) 175 MM
BRAKES: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM - CENTERLINE XR ROTOR
DISC SIZE: 160 MM FRONT/ 140 MM REAR
BRAKE LEVER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
BRAKE CALIPER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
WHEELS: OPTION 1 FULCRUM RACING WIND 420 DB, OPTION 2 FULCRUM RACING 600 DB
MATERIAL: FULCRUM WIND 420 DB CARBON (FF80), FULCRUM RACING 600 DB ALLUMINIUM
RIM HEIGHT: FULCRUM WIND 420 DB 42 MM, FULCRUM RACING 600 DB 24 MM
INTERNAL CHANNEL WIDTH: FULCRUM WIND 420 DB 23 MM, FULCRUM RACING 600 DB 20 MM
HUBS: FULCRUM WIND 420 DB ALUMINUM, LOW FLANGES. SEALED BEARING, ADJUSTABLE, FULCRUM RACING 600 DB ALUMINUM, ALUMINUM FLANGES SEALED CARTRIDGE BEARINGS
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: FULCRUM WIND 420 DB PIRELLI PZERO RACE 700X28, FULCRUM RACING 600 DB PIRELLI P7 SPORT 700X28
MAXIMUM TYRE SIZE: 32 MM (NOMINAL WIDTH)
SADDLE: SCRATCH M5 NACK 140 HARD BLACK, SELLE ITALIA NOVUS BOOST EVO TI316 SUPERFLOW (SUBJECT TO STOCK AVAILABILITY)
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - REGULAR GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK OR COLNAGO WT23 (FOR WT24 COLOR SCHEME ONLY)
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

VIEW MORE DETAILS ON WWW.COLNAGO.COM

*Please note that bike specifications are subject to change without prior notice.
