Tacx NEO 3M Smart Trainer

TACX NEO 3M SMART TRAINER

TRAINING IS LIFE

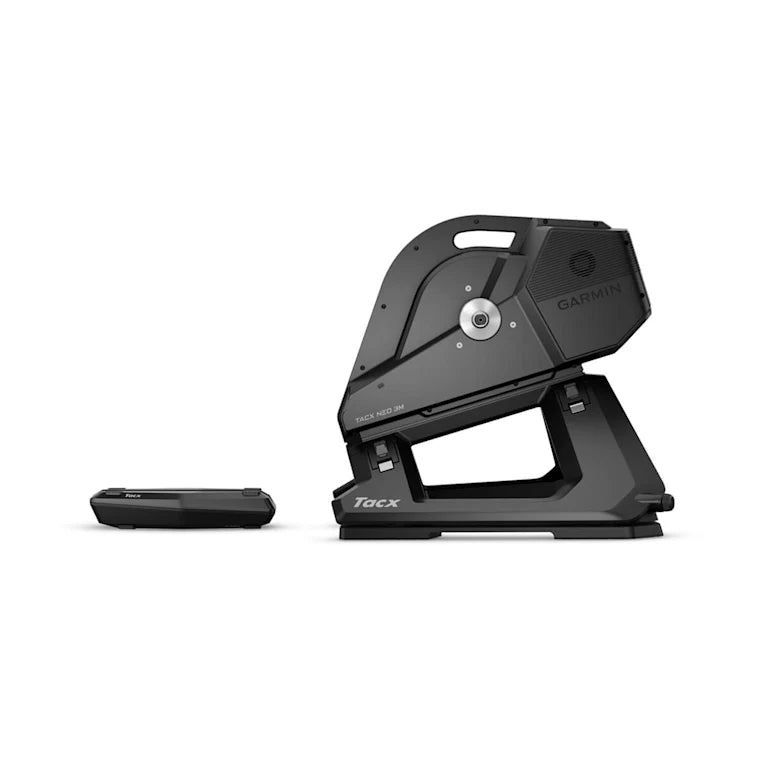

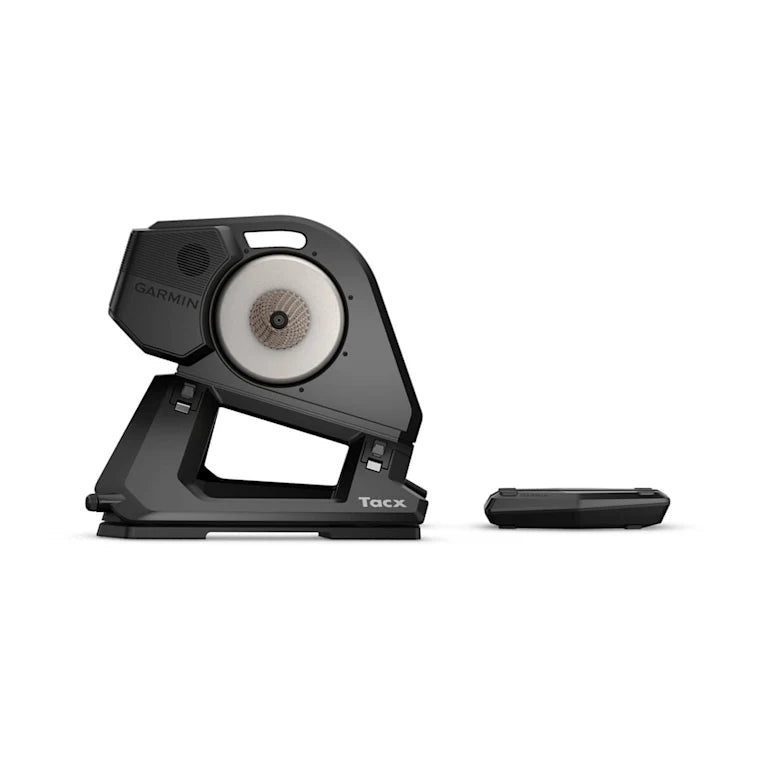

Tacx® NEO 3M is a powerful direct-drive smart trainer with built-in multidirectional movement and a state-of-the-art NEO magnet motor for the most realistic indoor ride.

PRODUCT HIGHLIGHTS

• MULTIDIRECTIONAL MOVEMENT: The new built-in motion plates give you a more comfortable and realistic riding feel — plus you can toggle them on and off as desired.
• TRAIN ON DIFFERENT SURFACES: The NEO 3M smart trainer features the innovative Tacx® virtual flywheel, which simulates the feeling of riding on different road types, such as cobblestone and gravel, so you can train for a variety of surfaces.
• SEAMLESS APP INTEGRATION: Connect with popular training apps such as the Tacx Training™ app, TrainerRoad and Zwift, then automatically upload your ride data to the Garmin Connect™ smart-device app.
• SIMULATED INCLINES: Get your legs ready to crush the toughest climbs by training on realistically simulated inclines up to a 25% gradient, and experience descent simulation.
• IMPROVED POWER ACCURACY: Track your performance and progress with reliable, consistent measurements, including power, speed and cadence, with accuracy to within 1% across a broader range of power outputs.
• SPRINT-READY DESIGN: Get maximum stability, even during explosive sprints, up to 2200 watts. With 32 integrated neodymium magnets, this trainer allows for a high brake force and high power levels.

SPECIFICATIONS

DIMENSION: 630 X 800 MM (24.8″ X 31.5″)
HEIGHT: 595 MM (23.4″)

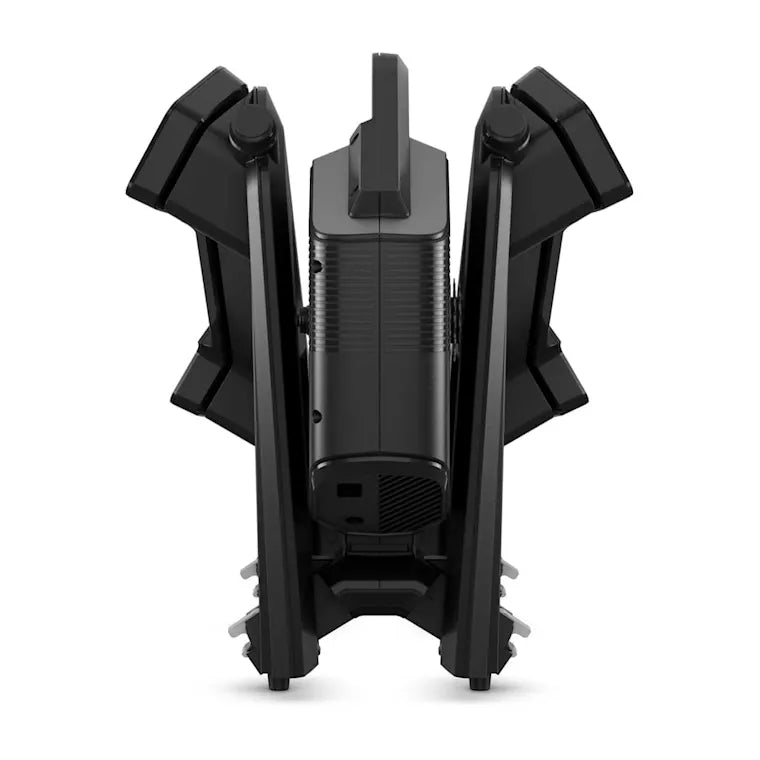

DIMENSIONS WHEN FOLDED: 695 X 355 MM (27.4″ X 14.0″)
WEIGHT: 23.6 KG
ACCURACY (+/-): <1%
WIRELESS COMMUNICATION: ANT+ CONNECTIVITY, BLUETOOTH WIRELESS TECHNOLOGY
TACX SMART NETWORK ADAPTER COMPATIBILITY: YES (PROVIDES WI-FI® AND ETHERNET CONNECTIVITY OPTION)
CONTROL BY: SMARTPHONE, TABLET, ANT+ BIKE COMPUTERS, STAND ALONE, COMPUTER CONNECTION VIA ANT+ ANTENNA
READ OUT ON: SMARTPHONE, TABLET, BIKE COMPUTER, COMPATIBLE SMARTWATCH, COMPUTER WITH ANT+ ANTENNA
CONNECTION INDICATOR (ANT+/BLUETOOTH): MULTICOLOUR LED
POWER INDICATOR: MULTICOLOUR LED, SPOT ON FLOOR
MAGNETS: 32 NEODYMIUM MAGNETS
ELECTRICAL REQUIREMENT: 100-240 VAC 50/60HZ (WITH INTEGRATED POWER ADAPTER)
SUITABLE CASSETTES: SHIMANO/SRAM 9 TO 11 SPEED (COMPATIBLE, 11-SPEED CASSETTE INCLUDED), CAMPAGNOLO, SRAM 12 SPEED/XDR, SHIMANO 12-SPEED HYPERGLIDE+
SUITABLE AXLES: DIRECT DRIVE QUICK RELEASE AXLE (130 MM/135 MM X 5 MM) FOR BIKES WITH QUICK RELEASE AXLE, THRU AXLE END CAPS (142 MM/148 MM X 12 MM) FOR BIKES WITH THRU-AXLE. FOR BIKE DIMENSIONS OUTSIDE OF THE INDUSTRY STANDARD, GARMIN OFFERS THIS ADAPTER SET AS AN ADDITIONAL ACCESSORY: 135 MM THRU-AXLE ADAPTER SET [10 X 135 NON-DRIVE SIDE (NDS), 12 X 135 NDS AND 10 X 135 DRIVE-SIDE (DS)].
MAX POWER: 2200 WATT
MAX INCLINE: 25%
SIMULATION OF DESCENT: YES
MAX TORQUE: 88 NM
MAX BRAKE FORCE: 260 N
FLYWHEEL: VIRTUAL
MASS INERTIA: VARIABLE TO 125 KG
CALIBRATION: NO CALIBRATION NEEDED
OUTPUT: SPEED, CADENCE, POWER
MEASURED SPEED: YES
MEASURED CADENCE: YES
MEASURED POWER: YES
INTEGRATED MOTION PLATES: YES
WORKS WITHOUT MAINS CONNECTION: YES
