Colnago C68 Gravel Green

COLNAGO C68 GRAVEL

For anyone who seeks the thrill of speed on the roughest dirt roads, but wants more than a simple carbon frame, here is a bike with a soul, steeped in tradition, handmade in Italy by the master craftsmen of Cambiago.

The C68 Gravel is a fast, solid and precise gravel bike that is fun to ride. The tyre clearance for tyres up to 42 mm is the best balance between speed and rideability. The modular construction and the clean, detail-oriented design make it unique.

TYRES UP TO 42 MM

It can accommodate tyres up to a nominal width of 42 mm. The choice to go no further is deliberate: the C68 Gravel is a fast, precise, snappy bike. A wider clearance would have changed its riding properties.

UDH READY

The C68 Gravel, in its HGWH (white) colorway, features UDH-compatible dropouts designed to SRAM standards. This makes the frame fully ready for T-Type transmissions and ensures maximum compatibility with the latest generation of Universal Derailleur Hangers.

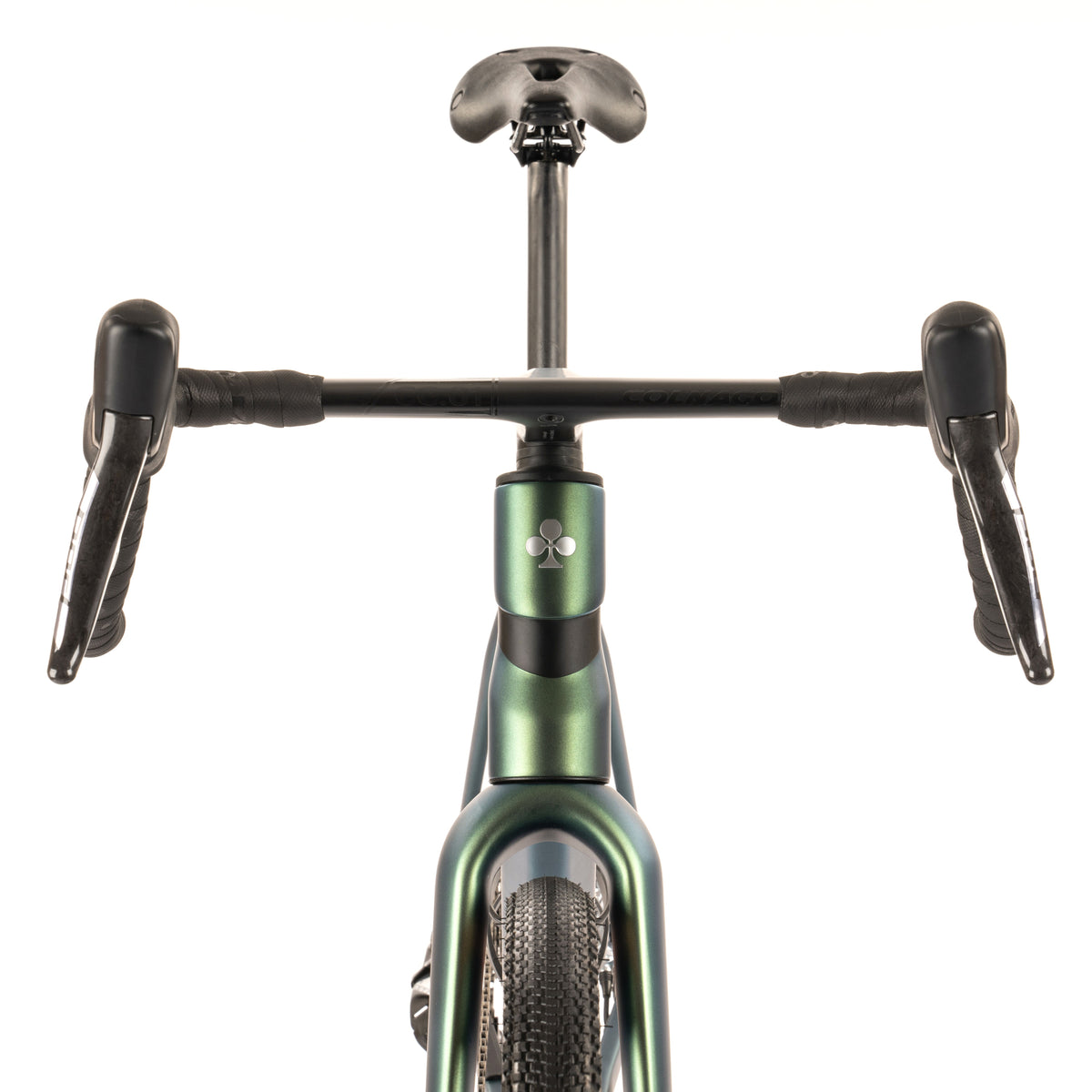

CC.01 WIDE

The CC.01 Wide handlebar is specifically developed with a wider flare. A wider grip provides greater control in all driving situations and less fatigue on rough terrain.

COMPATIBLE WITH SUSPENSION FORKS

The C68 Gravel is specified with a rigid fork and CC.01 Wide handlebar. However, the frame is designed to offer a wide range of add-ons, in particular for different handlebars and suspension fork.

BOLDER GRAVEL GEOMETRIES

The longer reach and higher stack compared to other gravel bikes in the category. This offers an ergonomically superior riding experience, perfectly tuned for more challenging landscapes, while maintaining an overall aggressive approach.

3 MOUNTING POINTS FOR WATER BOTTLES AND BAGS

In addition to two bottle cages on the down tube and seat post, the C68 gravel bike also has two rivets on the top tube for attaching a frame bag.

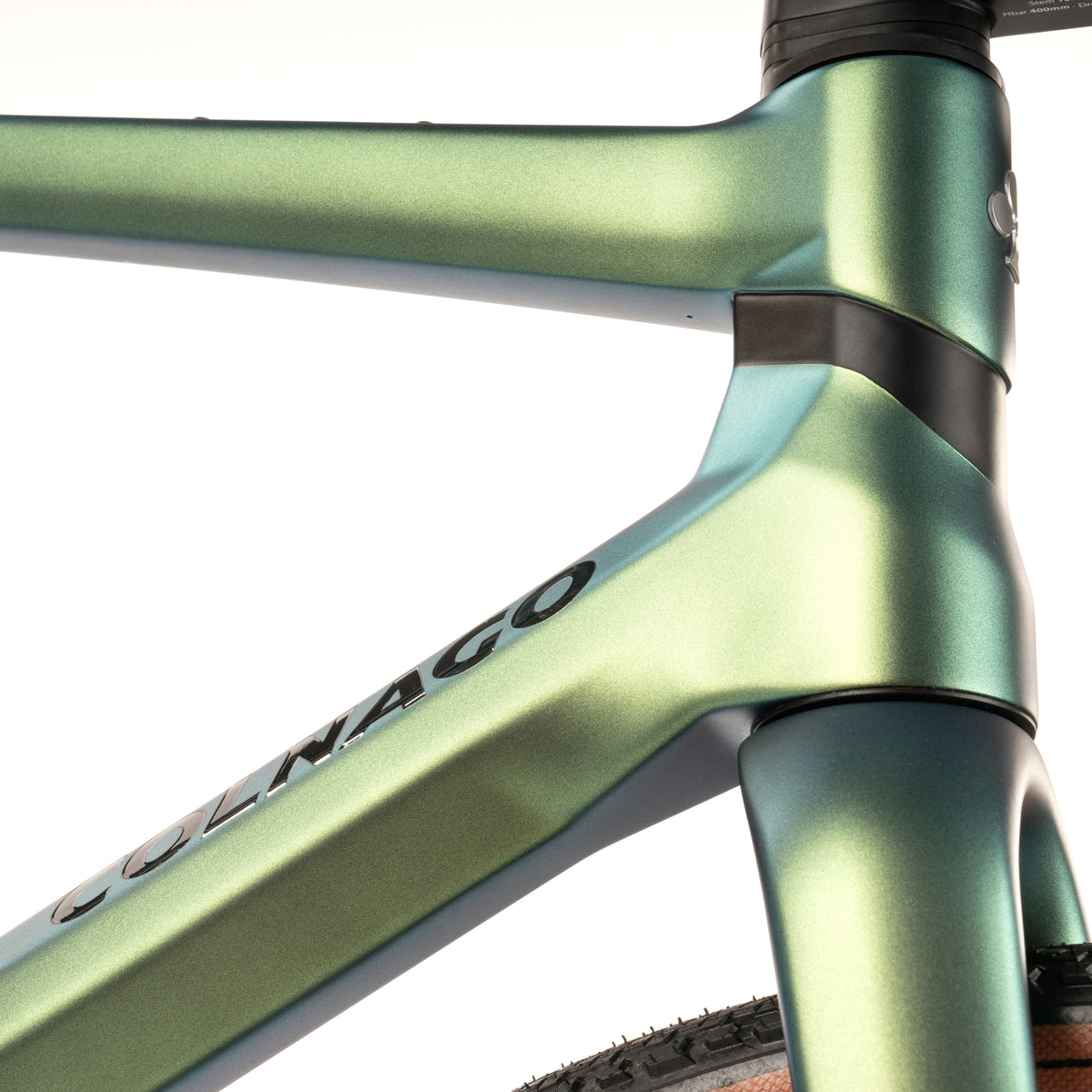

THE C68 PROUDLY CONTINUES THE TRADITION OF THE MODULAR FRAME.

The frame is constructed from several carbon parts that are hand-assembled in Italy through joints and interlocks. The number of parts that complete the frame is the same as the previous C series (C64).

WE HAVE INTRODUCED A NEW PROCESS: BANDING.

The carbon bands are applied manually at the joint between the carbon modules, after which they are filed and polished to achieve the look of a monocoque frame with the best Colnago modular frame properties.

AN ART JEALOUSLY GUARDED AND HANDED DOWN.

The tradition of modular carbon frames began at Colnago in the early 1990s. Colnago was the first brand in cycling history to introduce carbon frames to professional teams, winning a technically demanding race like the Paris Roubaix with the legendary C40.

GREATER CARE AND PRECISION IN MODULE PRODUCTION COMPARED TO A COMPLETE FRAME.

The smaller moulds of the individual modules allow us to work with greater care and obtain the highest quality carbon parts.

SPECIFICATIONS:

SERIES: C SERIES
MODEL: C68 GRAVEL

FRAMESET

FRAME (MATERIAL): MODULAR CARBON FRAME CONSTRUCTION: 8 CARBON PARTS.
FORK (MATERIAL, SECTION NOTES): COLNAGO CARBON FORK FOR DISC BRAKES, INTEGRATED CABLES.
HEADSET: ACROS SS 1"1/4 3547 STEEL BEARING
SEATPOST: CARBON SEATPOST, 0.15 OFFSET, "D-SHAPE" SECTION
THROUGH AXLES: DIAMETER: 12 MM. LENGTH 100 MM (FRONT) - 142 MM (REAR)
WEIGHT LIMIT: 120 KG

COMPLETE BIKE SPECIFICATIONS

SRAM RED XPLR

SHIFTING SYSTEM: SRAM RED XPLR D1 ETAP AXS
FRONT DERAILLEUR: THIS GOUPSET HAS A SINGLE CHAINRING
REAR DERAILLEUR: SRAM RED XPLR ETAP AXS - RD-RED-E-D1
CHAIN: RED CHAIN - CN-RED-D1 12S
CHAINRINGS: 40T
CASSETTE: 10-44T 12S
BOTTOM BRACKET: T47 SRAM DUB ROAD
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 450 - 480) 170 MM, OPTION 2 (STANDARD FOR SIZES 510-540) 172.5 MM, OPTION 3 (STANDARD FOR SIZE 550 - 570) 175 MM
BRAKES: DISC BRAKES SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM - CENTERLINE XR ROTOR
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
BRAKE CALIPER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
WHEELS: ZIPP 303S - TUBELESS TIRES ONLY
MATERIAL: CARBON – HOOKLESS
RIM HEIGHT: 45MM
INTERNAL CHANNEL WIDTH: 23 MM
HUBS: 176D, 76D
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL H TLR (40-622)
MAXIMUM TYRE SIZE: 45 MM (NOMINAL WIDTH)
SADDLE: OPTION 1 PROLOGO SCRATCH M5 NACK 140 HARD BLACK, OPTION 2 SELLE ITALIA SLR BOOST SUPERFLOW CARBON RAIL
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - WIDE GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: COCKPIT INTEGRATED MULTITOOL.

SRAM FORCE XPLR ETAP AXS

SHIFTING SYSTEM: SRAM FORCE XPLR ETAP AXS DISC
FRONT DERAILLEUR: THIS GROUPSET HAS A SINGLE CHAINRING
REAR DERAILLEUR: SRAM FORCE XPLR ETAP AXS - RD-FRC-E-D1
CHAIN: FORCE CHAIN - CN-FRC-D1 12S
CHAINRING: 40T
CASSETTE: 10-44T (12V)
BOTTOM BRACKET: T47 SRAM DUB ROAD
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 450 - 480): 170 MM, OPTION 2 (STANDARD FOR SIZES 510-540): 172.5 MM, OPTION 3 (STANDARD FOR SIZE 550 - 570): 175 MM
BRAKES: SRAM FORCE ETAP AXS HRD SHIFT-BRAKE SYSTEM - CENTERLINE XR ROTOR
DISC SIZE: 160 MM FRONT/ 160 MM REAR - PACELINE ROTORS RT-PLN-A1
BRAKE LEVER: SRAM FORCE ETAP AXS HRD SHIFT-BRAKE SYSTEM
BRAKE CALIPER: SRAM FORCE ETAP AXS HRD SHIFT-BRAKE SYSTEM
WHEELS: FULCRUM RAPID RED 500 DB
MATERIAL: ALUMINIUM
RIM HEIGHT: 24 MM
INTERNAL CHANNEL WIDTH: 23 MM
HUBS: ALUMINUM, ALUMINUM FLANGES SEALED CARTRIDGE BEARINGS
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL H TLR (40-622)
MAXIMUM TYRE SIZE: 42 MM (NOMINAL WIDTH)
SADDLE: OPTION 1: PROLOGO DIMENSION, OPTION 2: SELLE ITALIA NOVUS MG
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - REGULAR GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: COCKPIT INTEGRATED MULTITOOL.

SHIMANO GRX 1X

SHIFTING SYSTEM: SHIMANO GRX, RX822, 1X12 SPEED
FRONT DERAILLEUR: THIS GROUPSET HAS A SINGLE CHAINRING.
REAR DERAILLEUR: SHIMANO GRX 1X: SHIMANO RD-RX822-SGS
CHAIN: SHIMANO GRX: SHIMANO CN-M8100 12V
CRANKSET: SHIMANO GRX 1X: 42T
CASSETTE: SHIMANO GRX 1X: 10-51 12V
BOTTOM BRACKET: T47 SHIMANO WITH STEEL BEARINGS
CRANK LENGTH: OPTION 1 (STANDARD FOR SIZES 430 - 490) 170 MM, OPTION 2 (STANDARD FOR SIZE 520) 172.5 MM, OPTION 3 (STANDARD FOR SIZES 550 - 580) 175 MM
BRAKES: SHIMANO RX-820, 160 MM FRONT / 160 MM REAR, RT-MT800-S ROTORS
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SHIMANO ST-RX820
BRAKE CALIPER: SHIMANO RX-820
WHEELS: FULCRUM RAPID RED 900 DB | 2-WAY FIT READY (FOR TYRE AND TUBELESS READY)
MATERIAL: RIMS: ALUMINIUM, SPOKES: STAINLESS STEEL.
RIM HEIGHT: FRONT: 24.1 MM; REAR: 24.1 MM
INTERNAL CHANNEL WIDTH: 22 MM
HUBS: ALUMINIUM, SEALED CARTRIDGE BEARINGS
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL H TLR (40-622)
MAXIMUM TYRE SIZE: 45 MM (NOMINAL WIDTH)
SADDLE: OPTION 1 PROLOGO DIMENSION, OPTION 2 SELLE ITALIA NOVUS MG
HANDLEBAR: COLNAGO CC.01 INTEGRATED COCKPIT - WIDE GEOMETRY.
STEM: CC01 INTEGRATED COCKPIT
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: COCKPIT INTEGRATED MULTITOOL.

VIEW MORE DETAILS ON WWW.COLNAGO.COM

*Please note that bike specifications are subject to change without prior notice.
