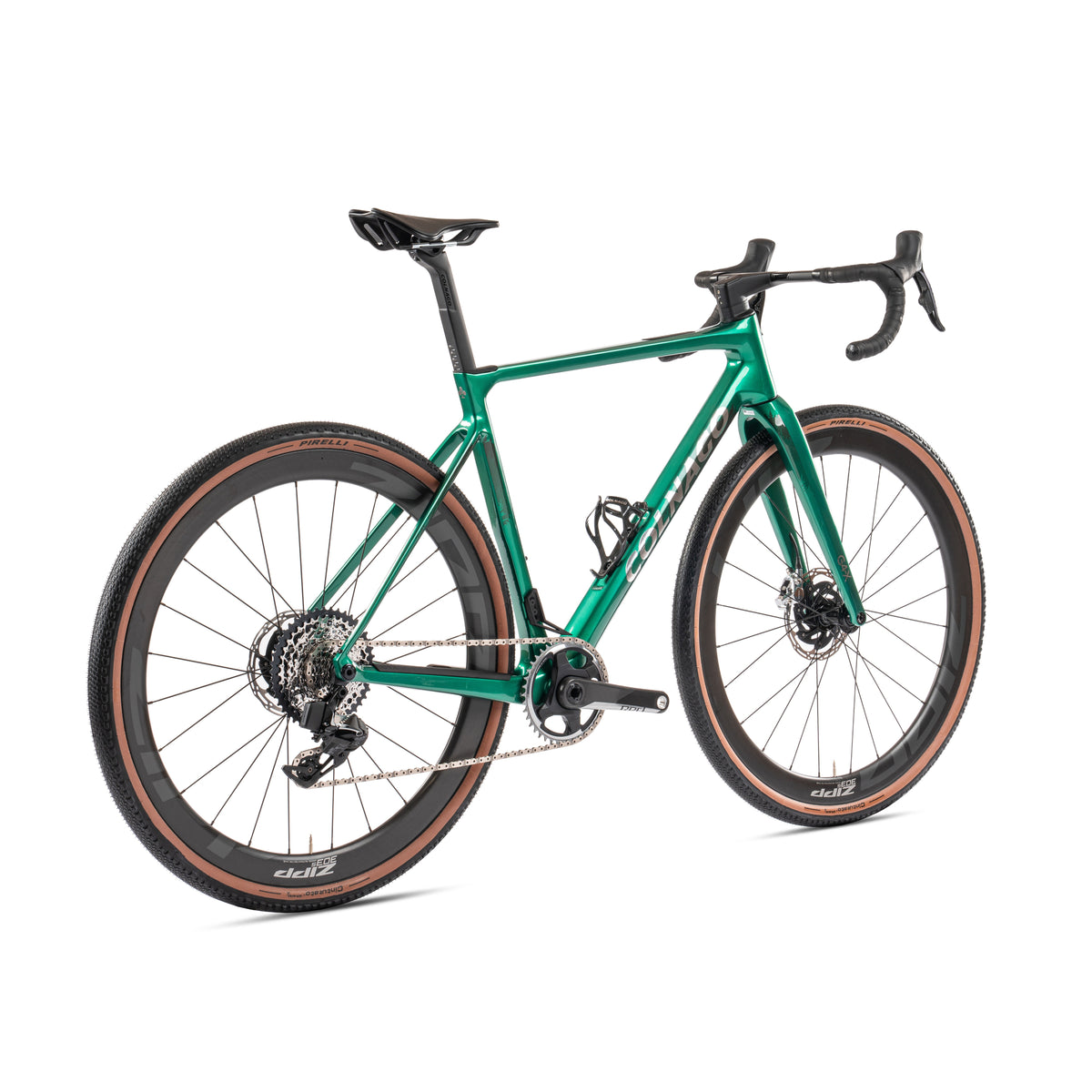

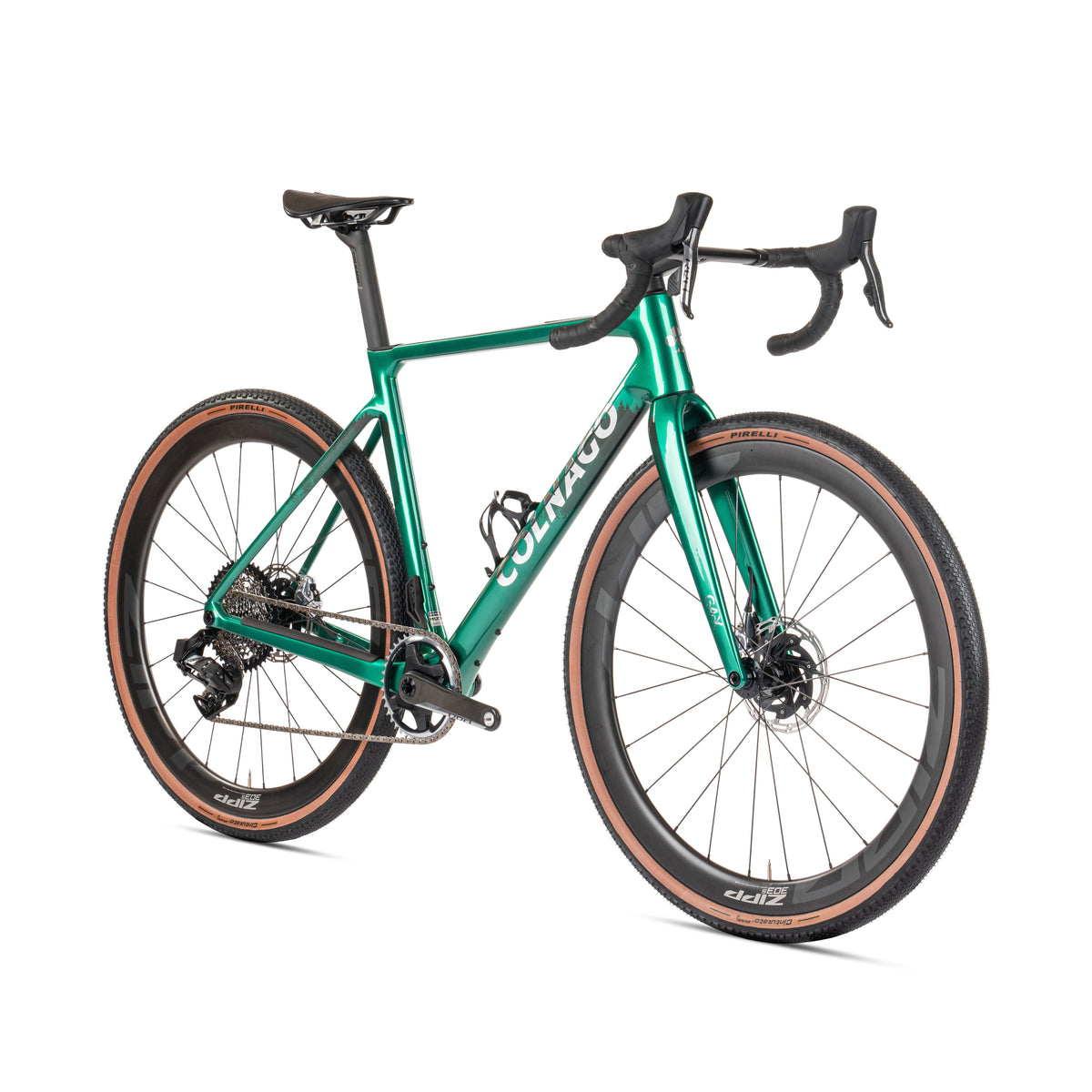

Colnago G4-X Green

COLNAGO G4-X

The perfect balance of the elements. The perfect harmony of the elements, a balanced gravel bike. Colnago G4-X is a bike that demands to be pedaled fast, without sacrificing handling and riding pleasure.

A BALANCED GRAVEL RACING BIKE, TO PERFORM AT ITS BEST IN EVERY CONTEXT.

The G4-X is the result of optimizing all those factors that are important when you have to compete or go hard on dirt roads: handling, lightness, downhill rideability, stability, frame responsiveness, and, like all Colnago bikes, surprisingly wonderful to ride.

SPECIFICATIONS:

SERIES: G SERIES
MODEL: COLNAGO G4-X

FRAMESET

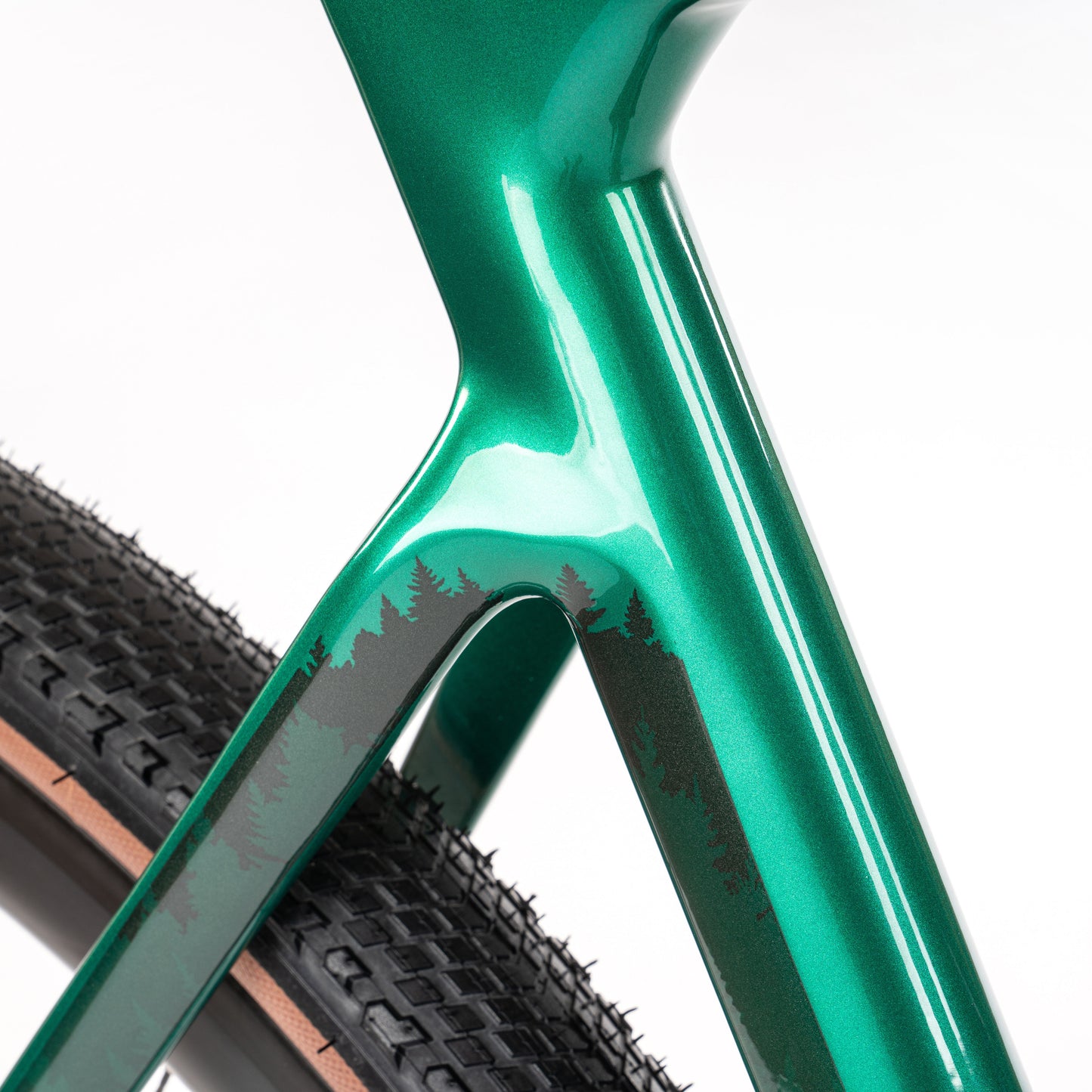

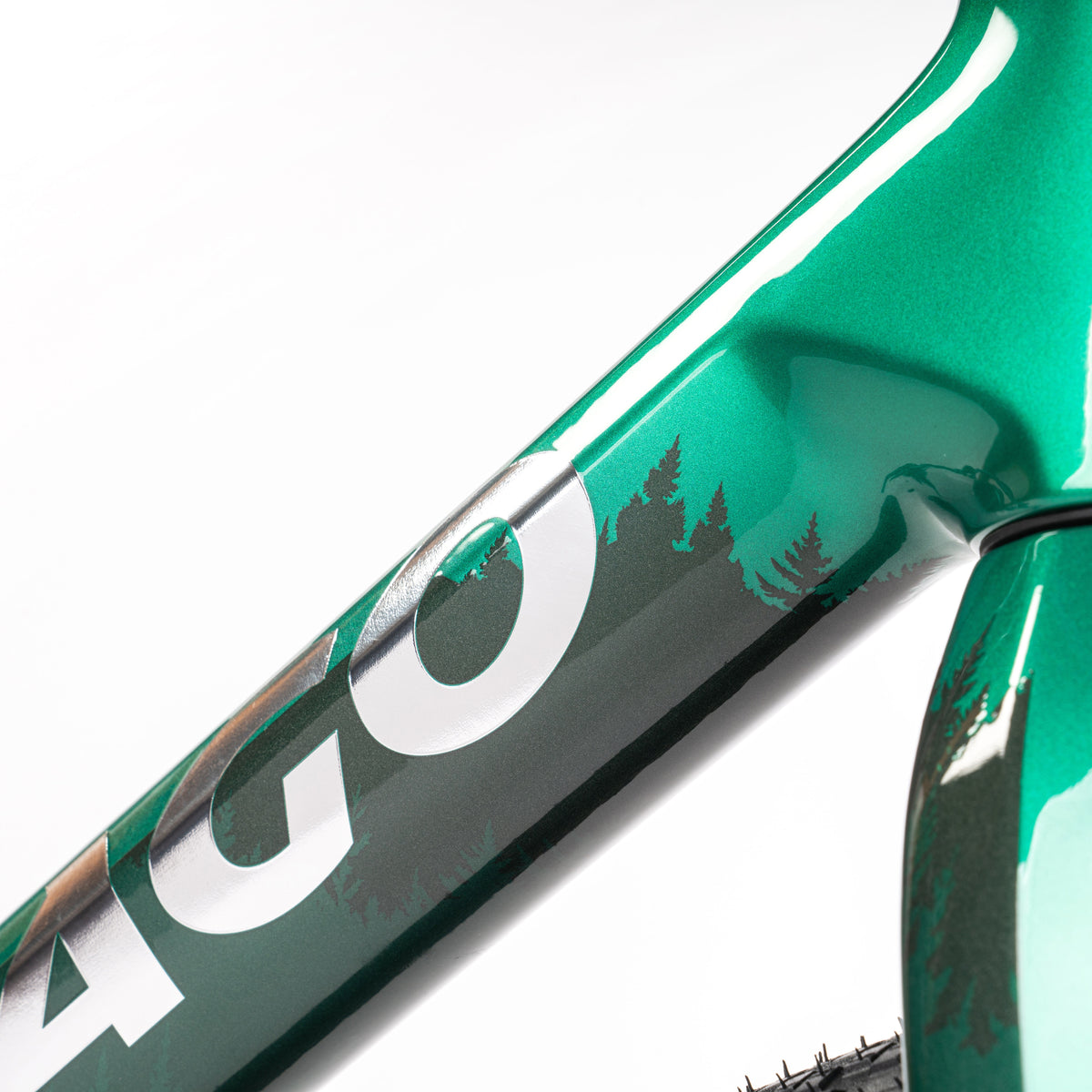

FRAME (MATERIAL): MONOCOQUE CARBON.

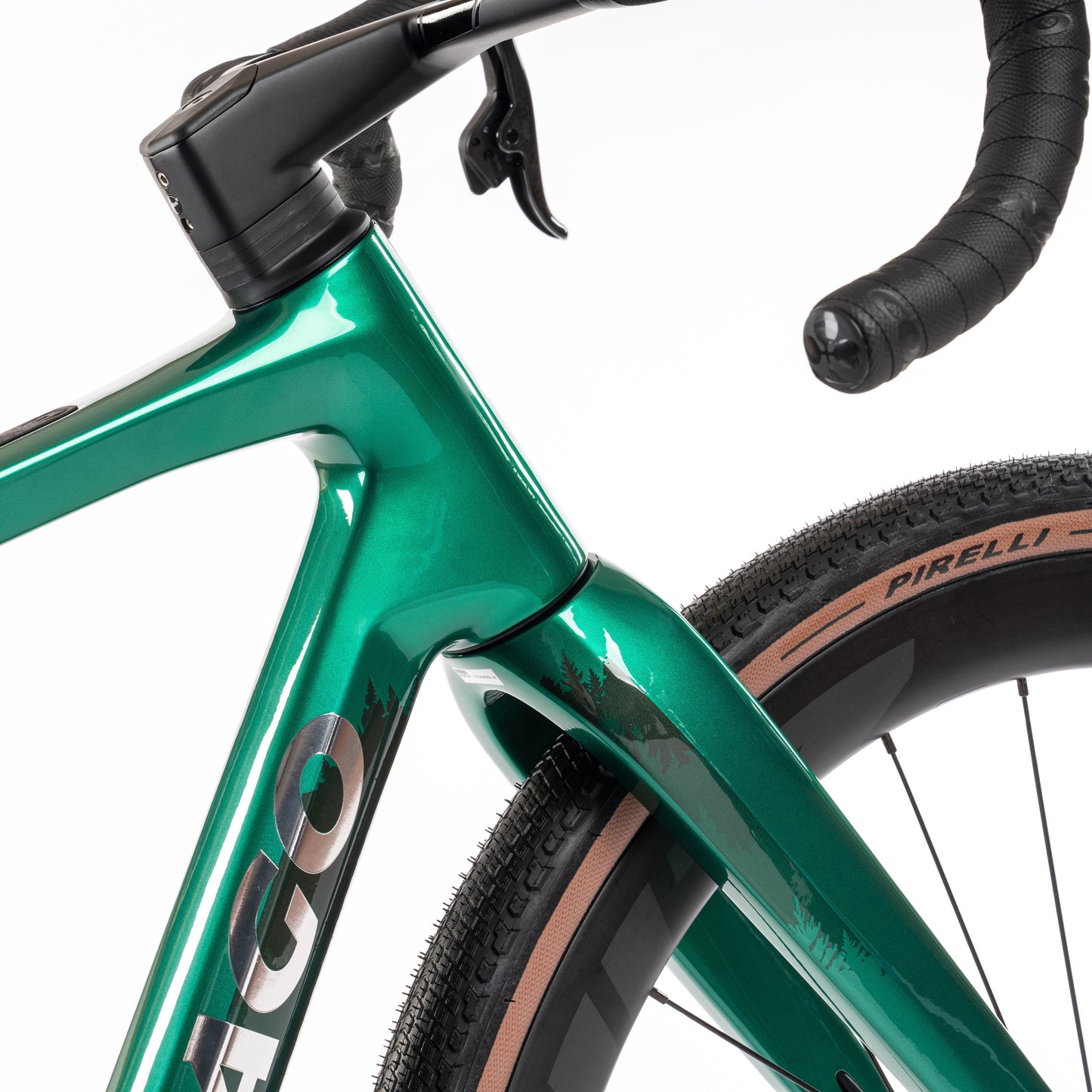

FORK (MATERIAL, SECTION NOTES): CARBON FORK FOR DISC BRAKES, EXTERNAL CABLES, SECTION WITH ROUND CIRCUMFERENCE
HEADSET BEARINGS: ACROS SS 42X52X7MM - 40X52X7MM
SEATPOST: CARBON SEATPOST, 0.15 OFFSET, "D-SHAPE" SECTION
THROUGH AXLES: DIAMETER: 12 MM. LENGTH 100 MM (FRONT) - 142 MM (REAR)

COMPLETE BIKE SPECIFICATIONS

SRAM RED XPLR AXS 1X

SHIFTING SYSTEM: SRAM RED 1X13 XPLR AXS
FRONT DERAILLEUR: THIS GOUPSET HAS A SINGLE CHAINRING
REAR DERAILLEUR: SRAM RED XPLR ETAP AXS - RD-RED-1E-E1
CHAIN: RED CHAIN - CN-RED-E1
CHAINRINGS: 40T
CASSETTE: 10-46T 13S
BOTTOM BRACKET: T47 SRAM DUB ROAD
CRANK LENGTH: SIZES 450 - 480 170 MM, SIZES 520 - 570 172.5 MM
BRAKES: DISC BRAKES SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM - CENTERLINE XR ROTOR
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
BRAKE CALIPER: SRAM RED ETAP AXS HRD SHIFT-BRAKE SYSTEM
WHEELS: VISION SC 45 DISC
MATERIAL: CARBON – WITH HOOKS
RIM HEIGHT: 45MM
INTERNAL CHANNEL WIDTH: 21 MM
HUBS: HUBS WITH DIRECT PULL SPOKES
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL 40 TLR
MAXIMUM TYRE SIZE: 42 MM (NOMINAL WIDTH)

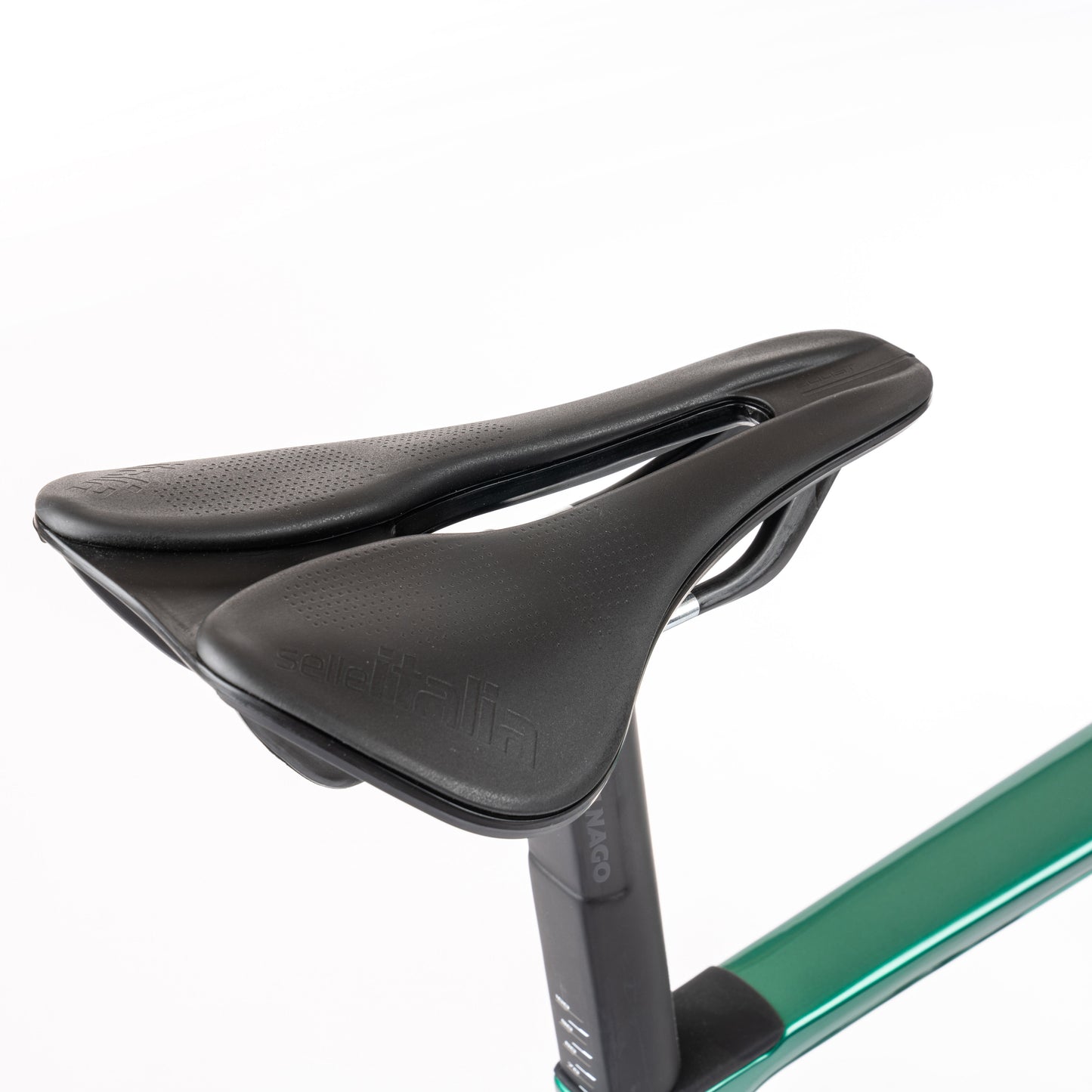

SADDLE: NOVUS BOOST EVO SUPERFLOW FEC, "SELLE ITALIA" MODEL X BB FEC

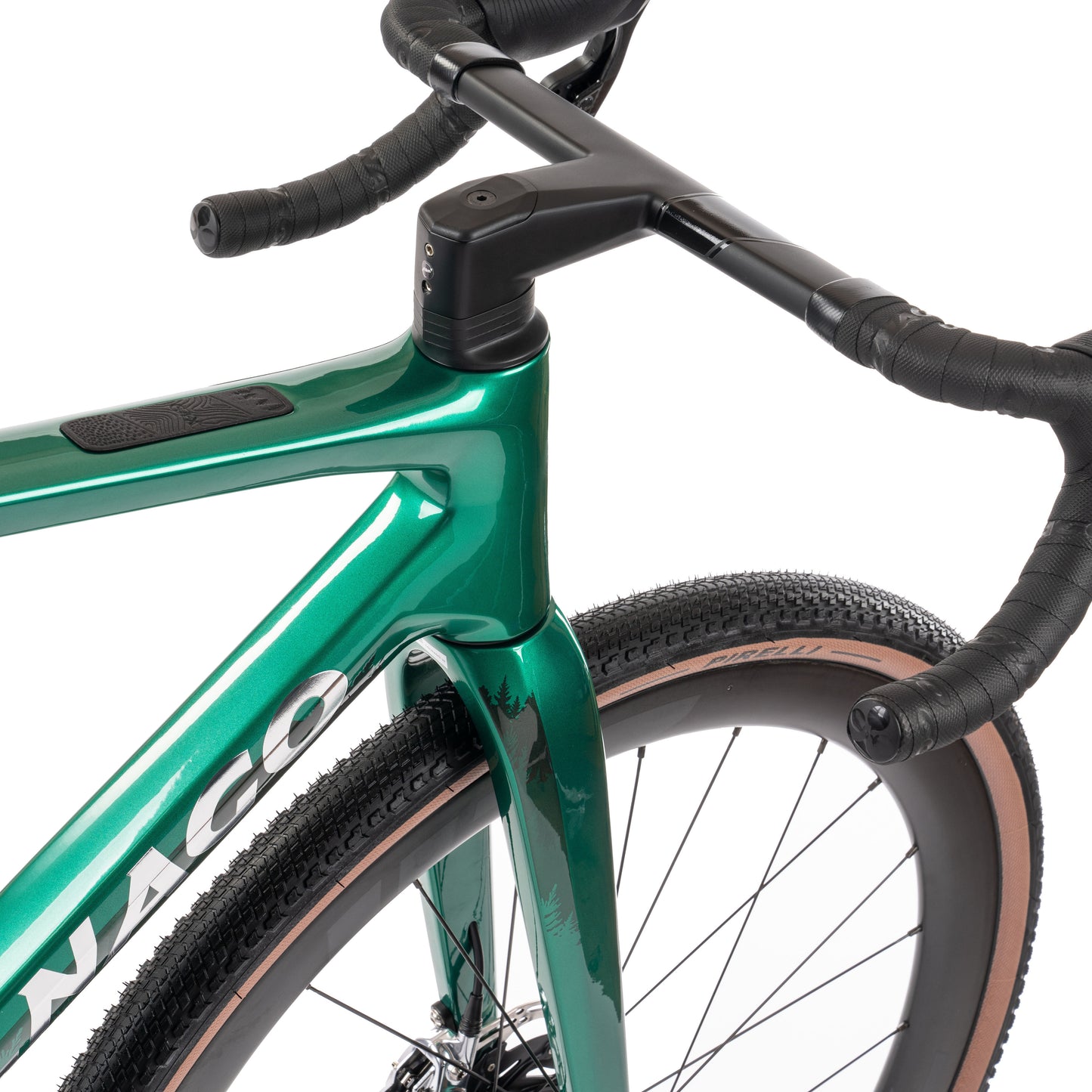

HANDLEBAR: CC.01 WIDE INTEGRATED COCKPIT, SIZES 450 WIDTH: 400 MM, SIZES 480 -540 WIDTH: 420 MM, SIZES 570 WIDTH: 440 MM
STEM: INTEGRATED COCKPIT (CC.01 WIDE), SIZE 450 - 480 LENGTH: 90 MM, SIZES 520- 570 LENGTH: 100 MM
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

SRAM FORCE XPLR AXS 1X

SHIFTING SYSTEM: SRAM FORCE XPLR AXS DISC
FRONT DERAILLEUR: (THIS GROUPSET HAS A SINGLE CHAINRING)
REAR DERAILLEUR: SRAM FORCE 13S: RD-FRC-1E-E1
CHAIN: SRAM FORCE CHAIN: CN-FRC-E1 (STANDARD SILVER COLOR)
CRANKSET: SRAM FORCE: 40T
CASSETTE: SRAM FORCE: 10-46 (13S) - CS-XG-1371-E1
CRANK LENGTH: 170 MM, 172.5 MM
BOTTOM BRACKET: T47 SRAM DUB ROAD
BRAKES: DISC BRAKES SRAM FORCE - CENTERLINE XR ROTOR
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SRAM FORCE AXS HRD SHIFT-BRAKE SYSTEM - ED-FRC-E1
BRAKE CALIPER: SRAM FORCE ETAP AXS HRD SHIFT-BRAKE SYSTEM
WHEELS: VISION SC 45 DISC
MATERIAL: CARBON – WITH HOOKS
RIM HEIGHT: 45MM
INTERNAL CHANNEL WIDTH: 21 MM
HUBS: HUBS WITH DIRECT PULL SPOKES
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL 40 TLR
MAXIMUM TYRE SIZE: 42 MM (NOMINAL WIDTH)
SADDLE: NOVUS BOOST EVO SUPERFLOW FEC, "SELLE ITALIA" MODEL X BB FEC
CC.01 WIDE INTEGRATED COCKPIT: WIDTH: 400 MM - 440 MM
INTEGRATED COCKPIT (CC.01 WIDE): LENGTH: 90 MM - 100 MM
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

SHIMANO GRX DI2 825 2X

SHIFTING SYSTEM: SHIMANO GRX 825 DI2 2X (ELECTRONICAL SHIFTING)
FRONT DERAILLEUR: SHIMANO GRX 2X: SHIMANO FD-RX820
REAR DERAILLEUR: SHIMANO GRX 2X: SHIMANO RD-RX820
CHAIN: SHIMANO GRX: SHIMANO CN-M8100 12V
CRANKSET: SHIMANO GRX 2X: 48-31T
CASSETTE: SHIMANO GRX 2X: 11-36 12V
BOTTOM BRACKET: ACROS T47
CRANK LENGTH: SIZES 450 - 480 170 MM, SIZES 520 - 570 172.5 MM
BRAKES: SHIMANO RX-820, 160 MM FRONT / 160 MM REAR, RT-MT800-S ROTORS
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SHIMANO ST-RX820
BRAKE CALIPER: SHIMANO RX-820
WHEELS: VISION SC 45 DISC
MATERIAL: CARBON – WITH HOOKS
RIM HEIGHT: 45MM
INTERNAL CHANNEL WIDTH: 21 MM
HUBS: HUBS WITH DIRECT PULL SPOKES
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL 40 TLR
MAXIMUM TYRE SIZE: 42 MM (NOMINAL WIDTH)
SADDLE: NOVUS BOOST EVO SUPERFLOW FEC, "SELLE ITALIA" MODEL X BB FEC
HANDLEBAR: CC.01 WIDE INTEGRATED COCKPIT, SIZES 450 WIDTH: 400 MM, SIZES 480 -540 WIDTH: 420 MM, SIZES 570 WIDTH: 440 MM
STEM: INTEGRATED COCKPIT (CC.01 WIDE), SIZE 450 - 480 LENGTH: 90 MM, SIZES 520- 570 LENGTH: 100 MM
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

SHIMANO GRX 822 1X

SHIFTING SYSTEM: SHIMANO GRX 822 1X
FRONT DERAILLEUR: (THIS GROUPSET HAS A SINGLE CHAINRING)
REAR DERAILLEUR: SHIMANO GRX 1X: SHIMANO RD-RX822-SGS
CHAIN: SHIMANO GRX: SHIMANO CN-M8100 12V
CRANKSET: SHIMANO GRX 1X: 42T
CASSETTE: SHIMANO GRX 1X: 10-51 12V
BOTTOM BRACKET: ACROS T47
CRANK LENGTH: SIZES 450 - 480 170 MM, SIZES 520 - 570 172.5 MM
BRAKES: SHIMANO RX-820, 160 MM FRONT / 160 MM REAR, RT-MT800-S ROTORS
DISC SIZE: 160 MM FRONT/ 160 MM REAR
BRAKE LEVER: SHIMANO ST-RX820
BRAKE CALIPER: SHIMANO RX-820
WHEELS: FULCRUM LITE ER (FOR CLINCHER AND TUBELESS READY)
MATERIAL: RIMS: ALUMINIUM, SPOKES: STAINLESS STEEL.
RIM HEIGHT: FRONT: 24 MM; REAR: 24 MM
INTERNAL CHANNEL WIDTH: 23 MM
HUBS: ALUMINIUM, SEALED CARTRIDGE BEARINGS
THROUGH AXLES: FRONT: HH12-100 - REAR: HH12-142
TYRES: PIRELLI CINTURATO GRAVEL 40 TLR
MAXIMUM TYRE SIZE: 42 MM (NOMINAL WIDTH)
SADDLE: NOVUS BOOST EVO SUPERFLOW FEC, "SELLE ITALIA" MODEL X BB FEC
HANDLEBAR: DEDA GRAVEL 100, SIZES 46S WIDTH: 400 MM, SIZES 49S - 55S WIDTH: 420 MM, SIZES 58S WIDTH: 440 MM
STEM: DEDA GRAVEL, SIZE 450 - 480 LENGTH: 90 MM, SIZES 520- 570 LENGTH: 100 MM
HANDLEBAR TAPE: COLNAGO GRIP BLACK
BOTTLE CAGE: COLNAGO MATT BLACK (1X)
OTHER ACCESSORIES: N/A

VIEW MORE DETAILS ON WWW.COLNAGO.COM

*Please note that bike specifications are subject to change without prior notice.
