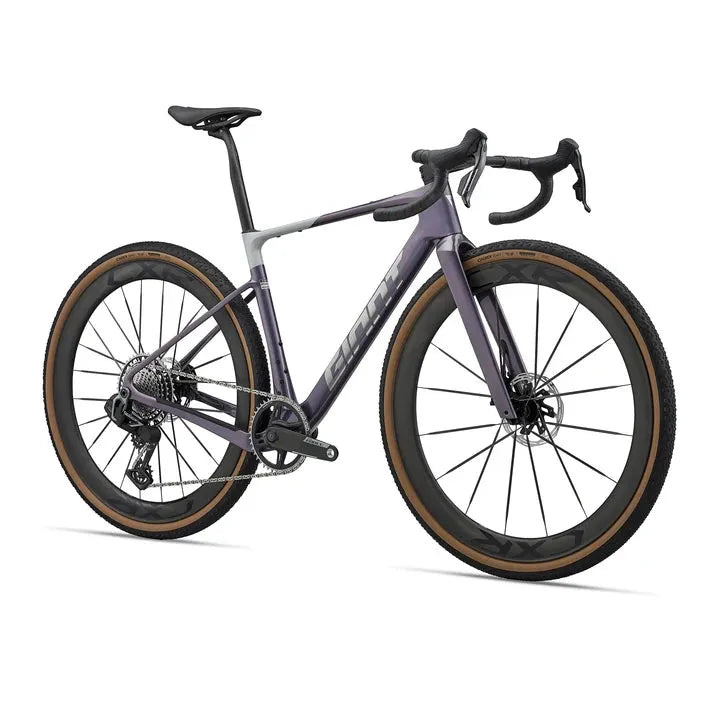

Giant Revolt ADV SL 1 Tempest Purple '27

GIANT REVOLT ADVANCED SL 1

The all-new Revolt Advanced SL is Giant’s most advanced gravel race bike, engineered from the ground up for elite-level competition. Built on an Advanced SL-grade composite frame and fork with aero tube shaping, a one-piece aero cockpit and fully integrated cable routing, it delivers race-winning efficiency over the longest, most demanding gravel events.

PRODUCT HIGHLIGHTS

• System Level Race Engineering: All-new Advanced SL composite frame and fork, CADEX Max GXR WheelSystem, one-piece aero cockpit and own-brand tires are engineered, developed and tested together as a complete race system. Updated OverDrive headset increases frontal and lateral fork stiffness. Fully integrated cable routing across headtube, front and rear triangle. UDH interface for SRAM 1x13 XPLR and Shimano compatibility.

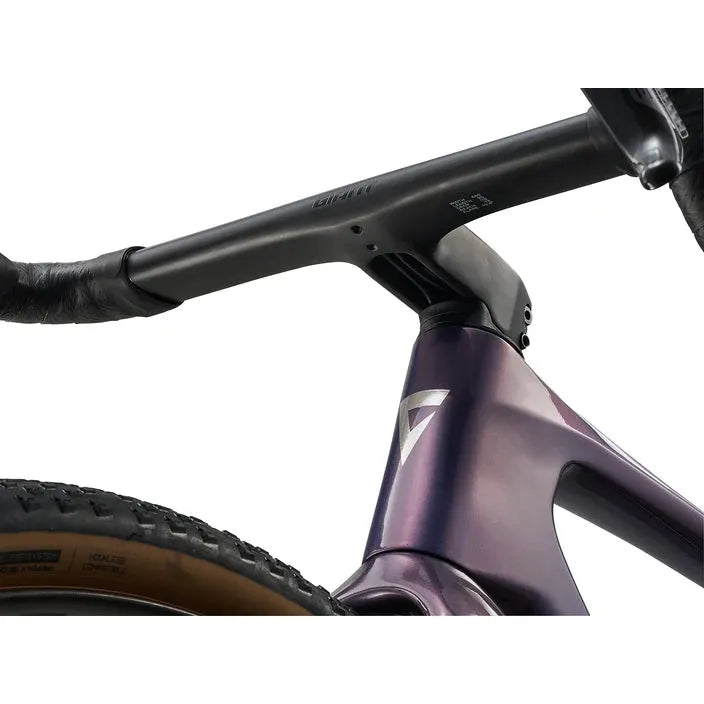

• Aero Performance Over Race Distance: Aero frame shaping optimized for mixed-surface race speeds (30-45 km/h). One-piece aero cockpit reduces frontal area. Lower drag over hours of racing translates into reduced fatigue, higher sustainable speeds and measurable time savings over race distance. This is the fastest bike at the finish, not just the lightest on the scale.
• Race-Tuned Handling and Geometry: Updated racing geometry reflects the professionalization of gravel. More aggressive fit than endurance gravel bikes. Optimized for high-speed stability, precise cornering on loose gravel and confident descending with wide race tires. The bike feels fast, predictable and composed at race pace.

SPECIFICATIONS

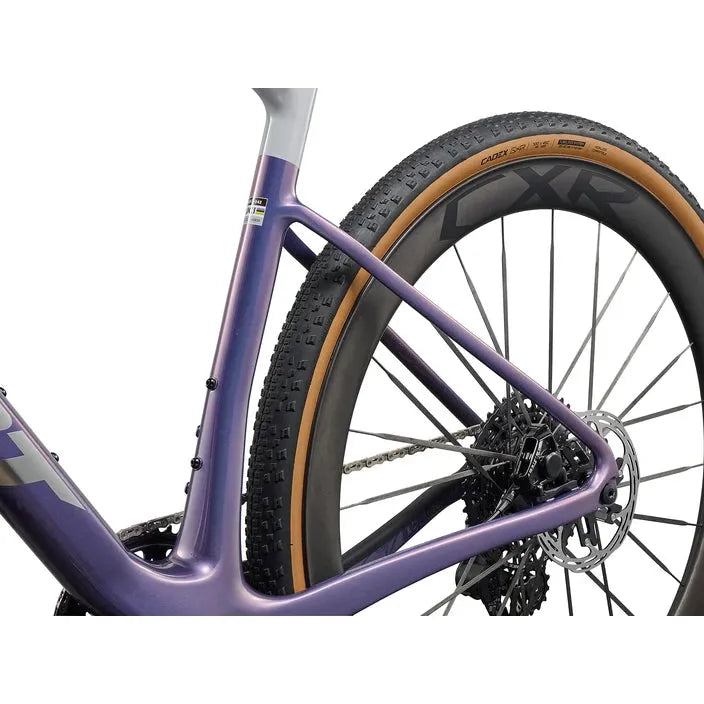

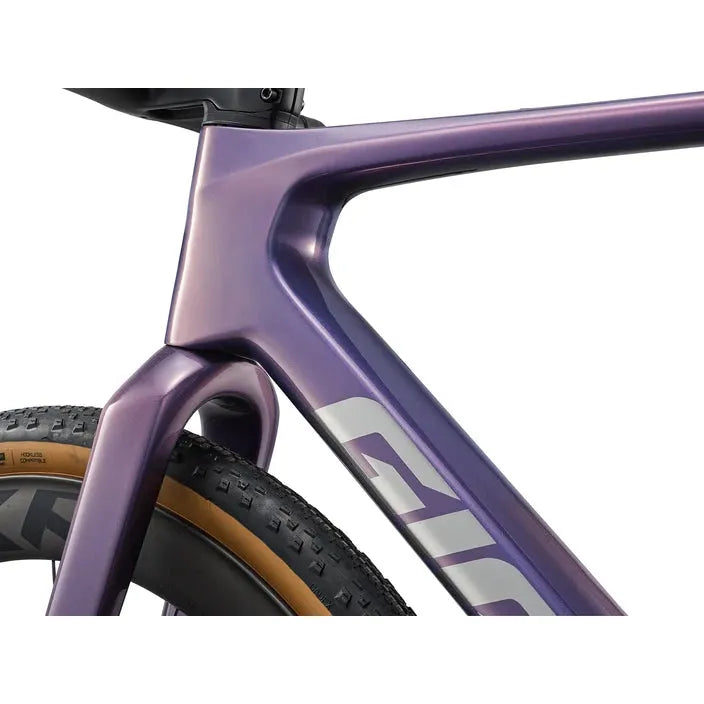

FRAME: ADVANCED SL-GRADE COMPOSITE, 12X142MM THRU-AXLE, DISC, UDH DROPOUT

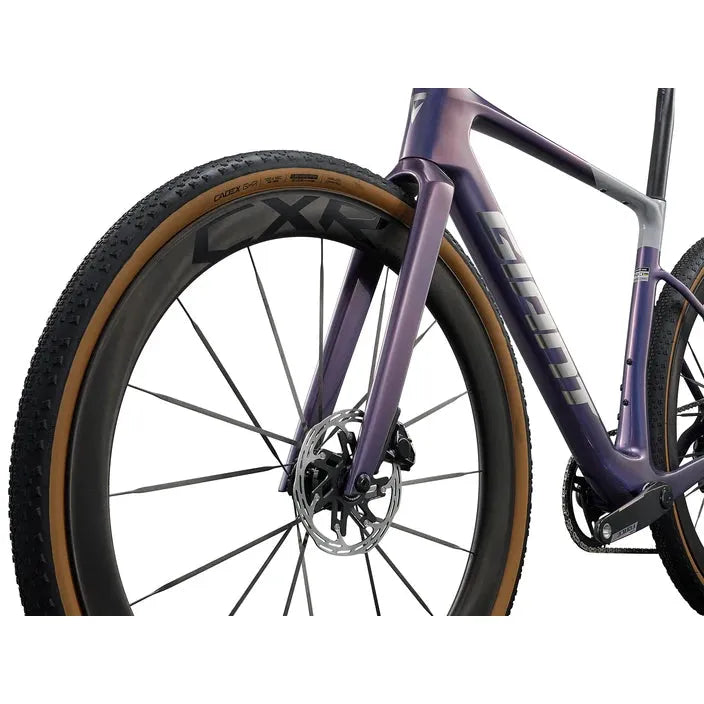

FORK: ADVANCED SL-GRADE COMPOSITE, FULL-COMPOSITE, UPDATED OVERDRIVE STEERER, 12MM THRU-AXLE, DISC

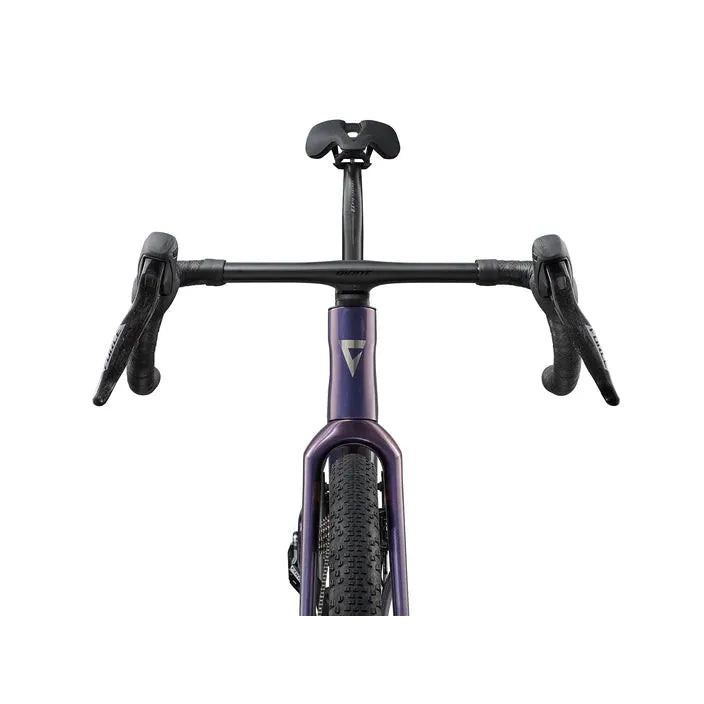

HANDLEBAR: GIANT CONTACT SLR XR INTEGRATED XS:70X420MM, S:80X420MM, M:90X440MM, M/L:100X440MM, L:100X440MM, XL:110X460MM
GRIPS: STRATUS LITE 3.0
STEM: GIANT CONTACT SLR XR INTEGRATED XS:70, S:80MM, M:90, M/L:100, L:100, XL:110
SEATPOST: GIANT CONTACT SLR XR D-FUSE, COMPOSITE, 20MM OFFSET
SADDLE: GIANT GRIT SLR
SHIFTERS: SRAM FORCE XPLR AXS E1, 1X13
REAR DERAILLEUR: SRAM FORCE XPLR AXS E1
BRAKES: SRAM FORCE AXS E1 HYDRAULIC, SRAM PACELINE X ROTORS [F]160MM, [R]160MM
BRAKE LEVERS: SRAM FORCE E1 HYDRAULIC
CHAIN: SRAM FORCE E1
CASSETTE: SRAM FORCE E1, 13-SPEED, 10X46
CRANKSET: SRAM FORCE XPLR AXS WITH POWER METER, 42T XS:165MM, S:165MM, M:170MM, M/L:170MM, L:172.5MM, XL:172.5MM
BOTTOM BRACKET: SRAM DUB, PRESS FIT
RIMS: GIANT CXR 0 WHEELSYSTEM, HOOKLESS, CARBON [F] 50MM, [R] 50MM
HUBS: [F] GIANT LOW FRICTION AERO HUB, CENTER LOCK [R] GIANT LOW FRICTION AERO HUB, 60-TOOTH RATCHET DRIVER, CENTER LOCK
SPOKES: AERO BLADED CARBON SPOKE
TIRES: CADEX GXR, 700X45C, TUBELESS
EXTRAS: TUBELESS PREPARED, 53MM MAX TIRE SIZE, 54T MAX CHAINRING SIZE, COMPUTER MOUNT, CHAIN GUIDE
WEIGHT: THE MOST ACCURATE WAY TO DETERMINE ANY BIKE’S WEIGHT IS TO HAVE YOUR LOCAL DEALER WEIGH IT FOR YOU. MANY BRANDS STRIVE TO LIST THE LOWEST POSSIBLE WEIGHT, BUT IN REALITY WEIGHT CAN VARY BASED ON SIZE, FINISH, HARDWARE AND ACCESSORIES. ALL OUR BIKES ARE DESIGNED FOR BEST-IN-CLASS WEIGHT AND RIDE QUALITY.

VIEW MORE DETAILS ON WWW.GIANT-BICYCLES.CO.ZA

*Please note that bike specifications are subject to change without prior notice.
