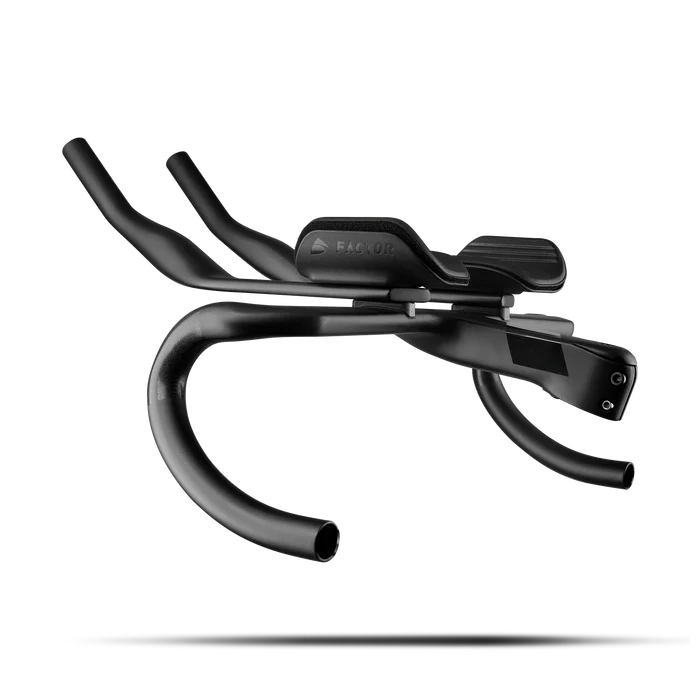

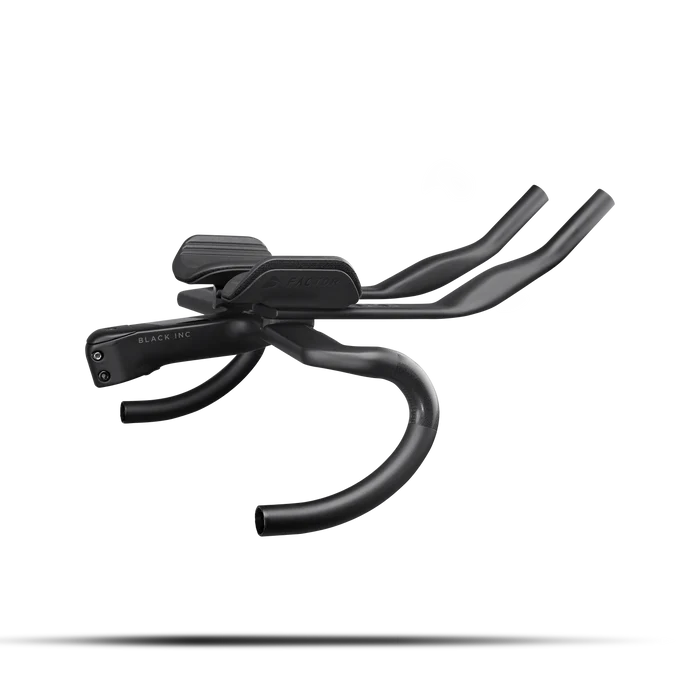

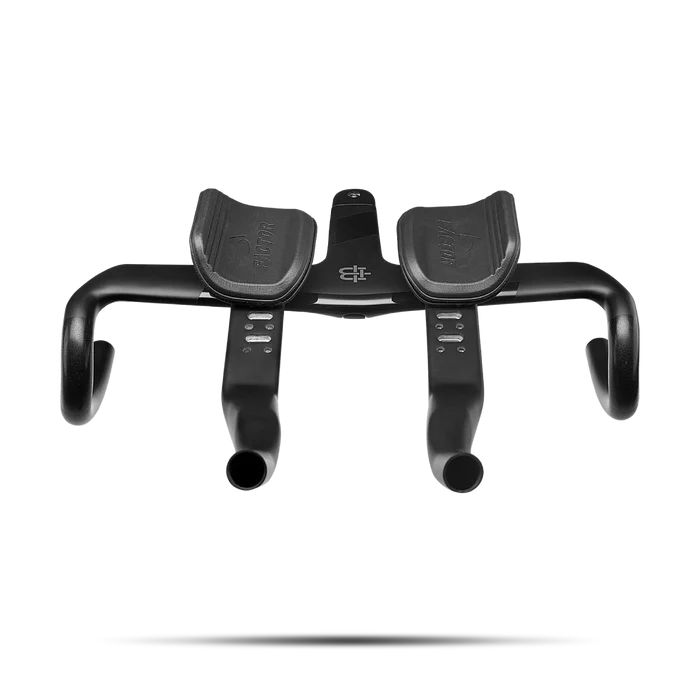

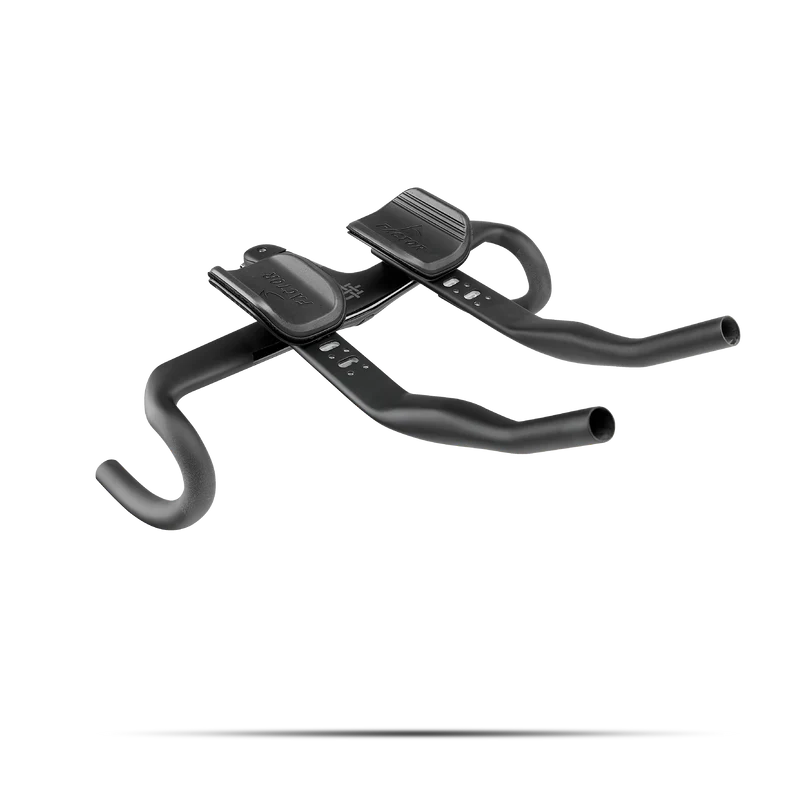

BLACK INC INTEGRATED AERO BARSTEM WITH EXTENSIONS
The Integrated Aero Barstem with Extensions takes the exceptional performance of the Integrated Aero Barstem and adds direct-mount aero extensions. It’s a cockpit of unrivalled speed and comfort that’s ready for everything from gravel racing to triathlon to bikepacking. The extensions are the same as used on the cutting-edge Hanzo TT bike. They can be removed in moments, leaving you with a super-fast and highly ergonomic barstem.
*Order your barstem directly through the Black Inc website and you will receive the latest Barstem Computer Mount (V10) with compliments.
The Integrated Aero Barstem with Extensions takes the exceptional performance of the Integrated Aero Barstem and adds direct-mount aero extensions to create a cockpit of unrivalled speed and versatility. It’s fast in three ways: with the extensions mounted the Integrated Aero Barstem with Extensions is ready to add speed and comfort to any ride, from gravel racing to triathlon to bikepacking; without the extensions, it’s a super-fast barstem with leading ergonomics; and, thirdly, it’s also really quick to convert between the two set-ups. The extensions are the same as used on the cutting-edge Hanzo TT bike.
AERO

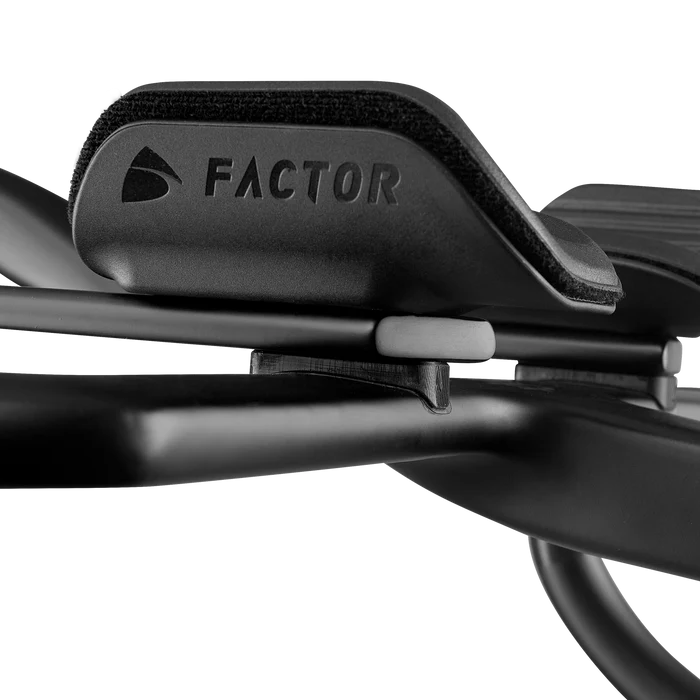

The Integrated Aero Barstem with Extensions allows you to achieve the most effective position possible, whether that’s all-out aero for a triathlon or a balance of comfort and efficiency for an ultra-distance event. The extensions themselves were developed for the Hanzo TT bike and provide an aero advantage compared to round poles by directing air around the forearms.

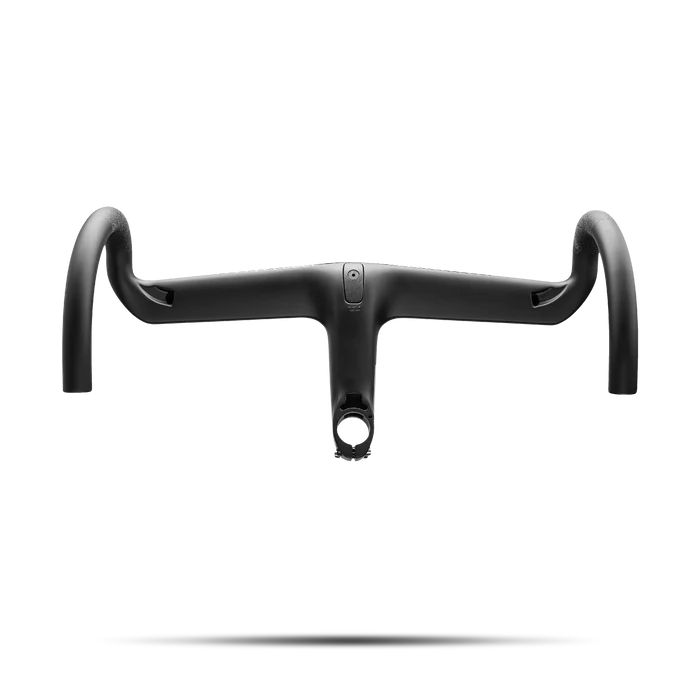

The drop bar shares its shape with the Integrated Aero Barstem, with a slippery airfoil top section to meet the clean airflow at the front of the bike. This 40mm-deep profile was selected following extensive testing in CFD and the wind tunnel, where it blew away the competition.

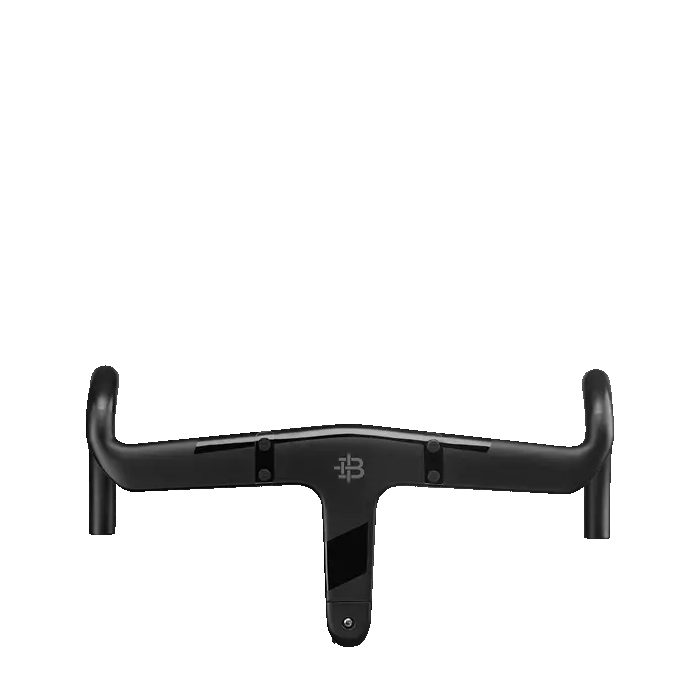

When you’re not running the extensions, the Integrated Aero Barstem with Extensions offers the next most effective position: tucked down with your hands on the horns of the hoods of your narrowly-spaced shifters, elbows and head down, forearms and back flat, frontal area minimized.
ERGONOMICS
The Integrated Aero Barstem with Extensions extensions can be cut at either end to create your perfect shape and length.
Like the Integrated Aero Barstem, every aspect of the drop bar is refined to maximise comfort and confidence. The tops sweep back at 3 degrees for a more natural wrist angle, the chamfered corners add wrist clearance when sprinting, and the mid-depth aero profile fits naturally when climbing on the tops, even for smaller hands. The upper radius of the drop is tightened to bring the brake lever approximately 5mm closer to the drop to account for the greater length of the latest Shimano and SRAM shifter bodies. This is the attention to detail that makes the difference.
The 7-degree flare in the drops adds 29mm of width versus the shifters. This carefully judged angle provides a narrow position on the hoods in typical road sizes and, for gravel use in a wider size, it gives confident control in the broader drops while keeping the shifters at an optimal angle.
SIZING FOR GRAVEL AND ROAD USE
The perfectly judged 7-degree flare, placing the drops 29mm wider than the hoods, is how the Integrated Aero Barstem with Extensions can pull double-duty as both a road and a gravel bar. For the road, size your bar at the drops and benefit from narrower hoods placing you in a more aero position; for gravel use, size your bar at the hoods and enjoy the added control of wider drops when the terrain demands it.
COMPATIBILITY AND CABLE ROUTING
Fully internal cable routing is supported for electronic and disc brake groupsets only.
COMPUTER AND ACCESSORY MOUNTING
The Integrated Aero Barstem with Extensions features a GoPro-style computer mounting point. The included out-front mount places your computer in an ideal location for all riding positions, including on the extensions. The new mounting enables angle adjustment and provides a more supported second mount for a light or action camera.
SPECIFICATIONS:
MATERIAL: CARBON FIBER
WEIGHT: 438G (42CM X 110MM) EXCLUDING EXTENSION BARS AND ACCESSORIES 438G + 432G (TT PARTS) (42CM X 110MM) WITH EXTENSION BARS AND ACCESSORIES
ANGLE: -6°
DROP: 120MM
REACH: 80MM
STACK: 39MM
FLARE (DROP SECTION): 7°
BACKSWEEP (TOP SECTION): 3°
STEERER DIAMETER: 1-1/8″
FINISH: UD MATTE AND GLOSSY
INTERNAL CABLE ROUTING: ELECTRONIC AND DISC BRAKE SYSTEMS ONLY
EXTERNAL CABLE ROUTING: N/A
