Outer The Link GX

OUTER THE LINK GX

The Link is our no-nonsense, go-anywhere E-bike. Featuring 160mm front and rear suspension travel and a progressively tuned four bar suspension layout, this bike is ready to take on anything you can throw at it. The 85nm motor and 630Wh battery mean there is plenty of power and range to get you to the highest peaks or for cramming in as many party laps as possible with the squad.

There are lots of things we like about this bike, but here are the main things:
- 85N.m Shimano EP801 Motor (32Kph)
- 630Wh Shimano Battery
- 160mm front and rear suspension travel
- Large standard size sealed bearings
- Lyne Components dropper post, cockpit and rims

PRODUCT HIGHLIGHTS

• Frame: Alloy
• Wheel Size: 29"
• Suspension Travel: 160mm
• Drive Unit: Shimano EP801
• Battery: Shimano 630Wh

SPECIFICATIONS:

FRAME: ALLOY 29” BOOST, 160MM TRAVEL, UDH HANGER, INTEGRATED BATTERY
FORK: ROCKSHOX ZEB SELECT 160MM 44MM OFFSET

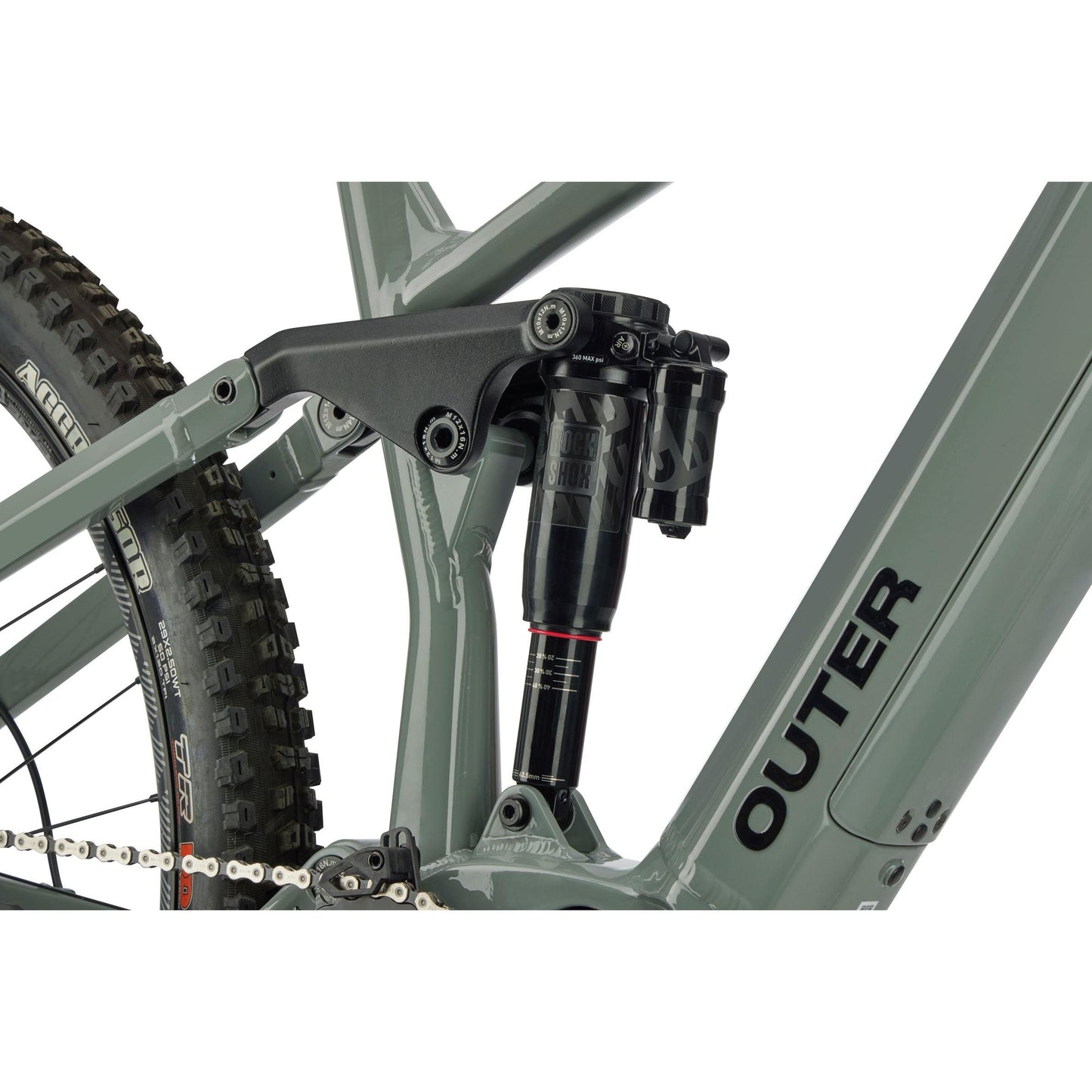

REAR SHOCK: ROCKSHOX SUPER DELUXE SELECT+ 205X62.5MM

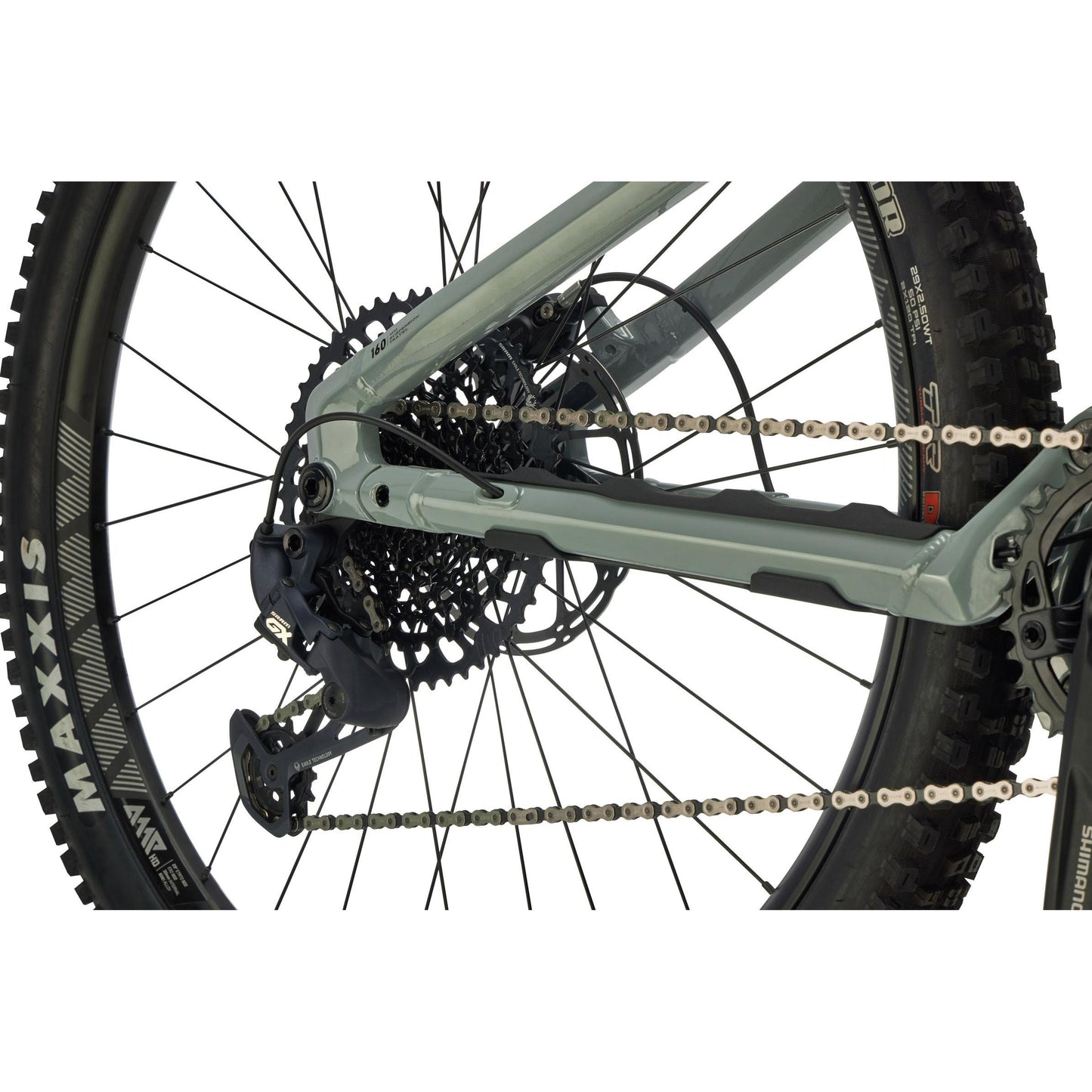

REAR DERAILLEUR: SRAM GX EAGLE 12 SPEED
SHIFTER: SRAM GX EAGLE 12 SPEED
CASSETTE: SRAM CS XG 1275 EAGLE 10-52T
CHAIN: SRAM GX EAGLE
HEADSET: FSA NO.57
WHEEL SIZE: 29” FRONT AND REAR
FRONT TYRE: MAXXIS ASSEGAI, 29X2.5WT, 120TPI, FOLDABLE, 3CT MAXXTERRA/EXO+/TR
REAR TYRE: MAXXIS AGGRESSOR, 29X2.5WT, 120TPI X2, FOLDABLE, DD/TR
WHEELSET: LYNE AMP HD RIMS, NOVATEC HUBS
BRAKES: SRAM CODE R
ROTORS: SRAM CENTERLINE 220MM FRONT, 200MM REAR
CRANKSET: SHIMANO M600 165MM, 34T CHAINRING

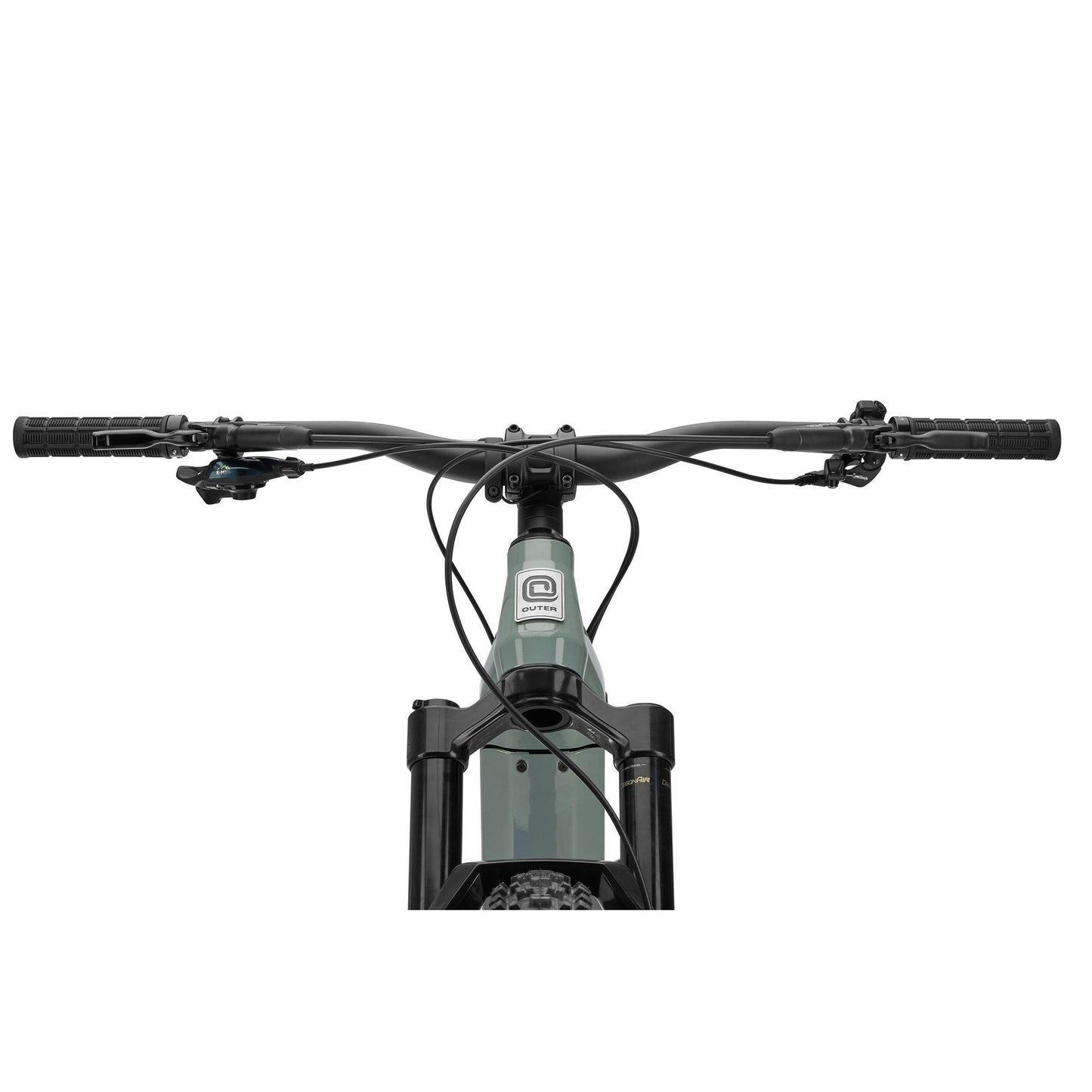

HANDLEBARS: LYNE AMP 20MM RISE, 800MM WIDTH, INTEGRATED CABLE ROUTING
STEM: LYNE AMP 35 BAR CLAMP, 35MM S & M, 50MM L & XL
SEATPOST: LYNE CONTOUR V2.0 INTERNAL DROPPER POST - S: 125MM M: 150MM L/XL: 170MM
SADDLE: OUTER 140MM
GRIPS: LYNE COSMIC CACTUS LOCKON BLACK
BATTERY: SHIMANO 630WH INTEGRATED

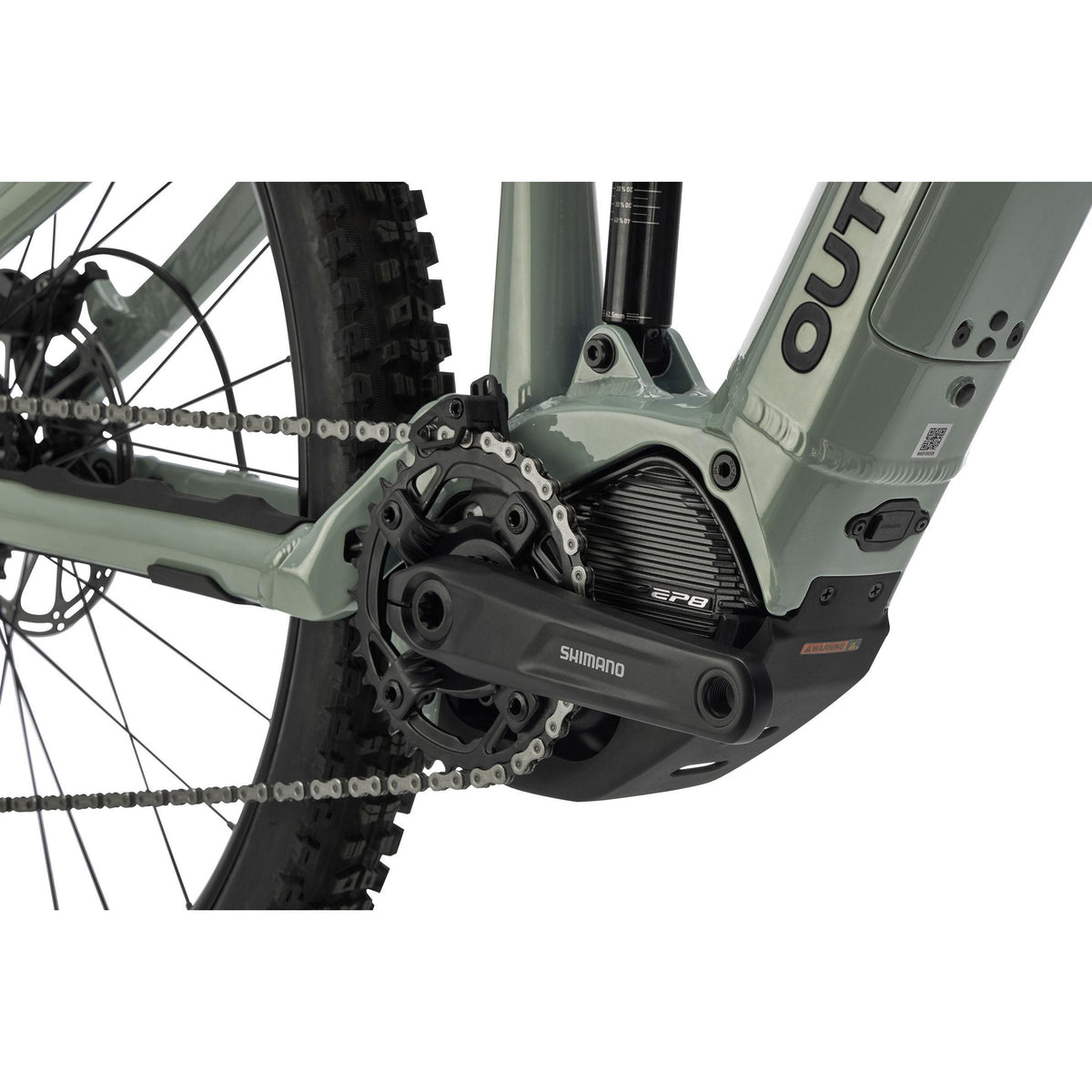

DRIVE UNIT: SHIMANO EP801 (32 KM/H)
BATTERY CHARGER: SHIMANO EC-E8004
FRAME WARRANTY: 5 YEARS
WEIGHT: +/-25.2 KG (SIZE SMALL, PLEASE ALLOW FOR SOME DEVIATION)

VIEW MORE DETAILS ON WWW.OUTERCYCLES.COM

*Please note that bike specifications are subject to change without prior notice.
