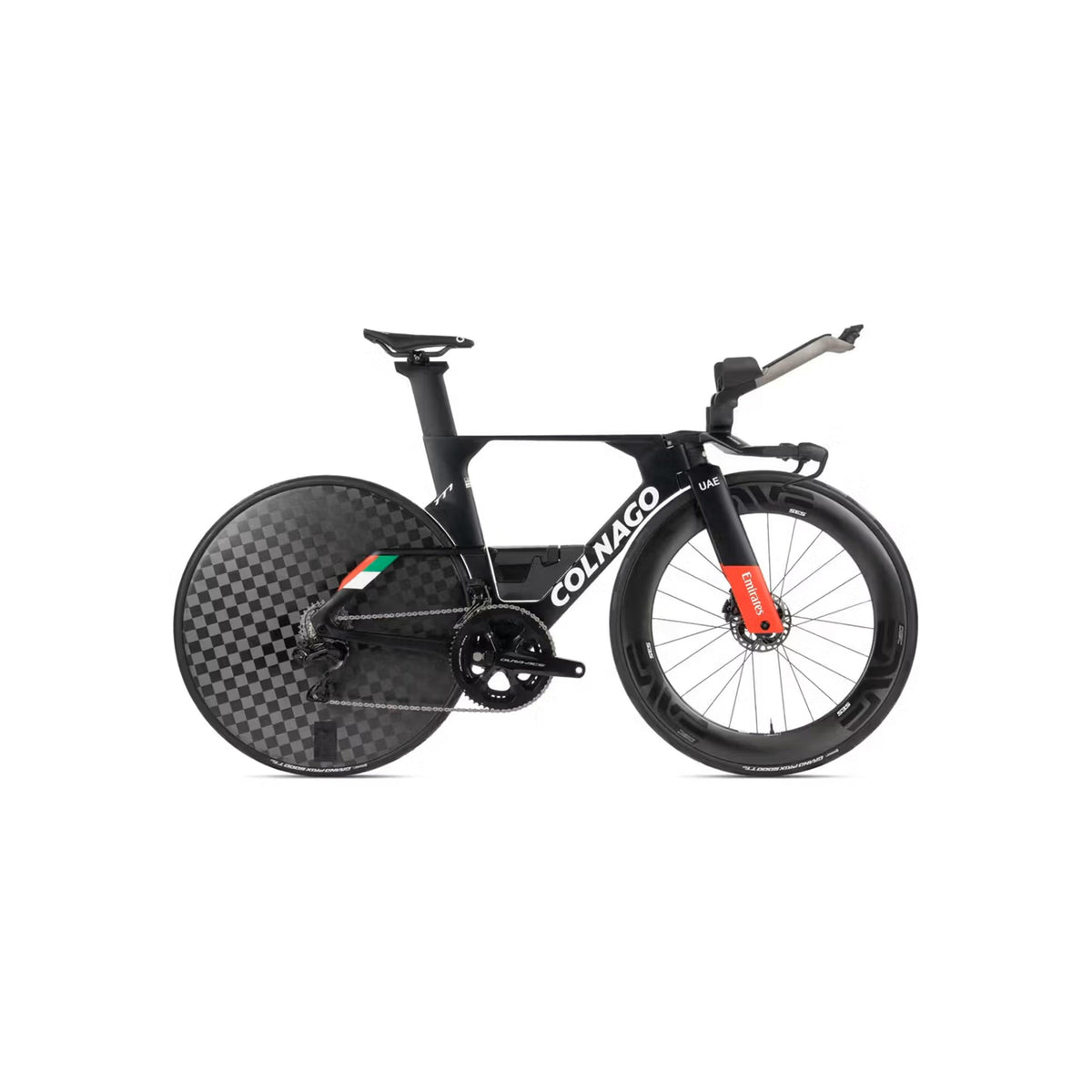

Colnago TT1 UAE Team Edition

COLNAGO TT1

The fastest time trial frame in the World Tour. The Colnago TT1 offers you the ultimate in aerodynamic technology applied to bikes. Whether in a Tour de France time trial, or in a stage of a triathlon, the Colnago TT1 has consistently proved itself to be of a superior level.

DISC BRAKES AND IMPROVED AERODYNAMICS

The TT1 is the first Colnago time trial bike with a disc brake system. This choice ensures better integration of the hydraulic tubes within the frame with improved braking performance and greater rigidity of the entire bicycle due to the use of through axles on the wheels. The weight difference compared to the previous Colnago TT model, the K.-One, is minimal, while offering better braking performance and safety.

SPECIFICATIONS

SERIES: TT SERIES
MODEL: TT1

FRAMESET

FRAME (MATERIAL): MONOCOQUE CARBON.
FORK (MATERIAL, SECTION NOTES): CARBON BAYONET FORK FOR DISC BRAKES, INTEGRATED CABLES.
HEADSET: BEARINGS 19X30X6,5; 36X45° - INCLUDED
SEATPOST: COLNAGO AERO CARBON SEAT POST ASSEMBLY. ADJUSTABLE OFFSET.
SEATPOST CLAMP: COLNAGO TT1 CUSTOM WEDGE + M8X16 HEADLESS SCREW
THROUGH AXLES: REAR. 12 X 142 MM, FRONT. 12 X 100 MM
HANDLEBAR: COLNAGO TT1 HANDLEBARS + STEM COVER INCLUDED, AEROBARS NOT INCLUDED
BOTTLE CAGE: INTEGRATED WATER BOTTLE HOLDER - INCLUDED, AERODYNAMIC WATER BOTTLE FOR TT1 - INCLUDED
BOTTOM BRACKET: BSA 68MM
BRAKE CALIPER: FLAT MOUNT DISC (REAR), POST MOUNT (FRONT)
CHAINSTAY HEIGHT (FLAT MOUNT): 20 MM
MAXIMUM TYRE SIZE: 28 MM WITH 4 MM CLEARANCE

VIEW MORE DETAILS ON WWW.COLNAGO.COM

*Please note that bike specifications are subject to change without prior notice.
