CANNONDALE MOTERRA 2
MORE JUICE, NO EXCUSE
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
A masterclass in capability. The Moterra 2 features a lightweight, full carbon frame with 150mm travel and a hard-charging 160mm RockShox Zeb Select fork for pinpoint handling. Shimano's advanced Deore Di2 electronic drivetrain and Magura Louise Elite brakes combine with Bosch’s most powerful CX motor and 800Wh battery to extend every ride beyond expectation. Agile, composed, and ever-ready to push the limits of exploration.
WHAT IT'S FOR
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
PRODUCT HIGHLIGHTS
- A lightweight carbon fiber frame with Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – the Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
- Precise electronic shifting from Shimano's workhorse Deore Di2 11-speed group
- Powerful, controllable stopping from Magura’s Louise Elite 4-piston stoppers with 203mm rotors
- Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
SPECIFICATIONS
FRAME: MOTERRA CARBON, 29" WHEELS, 150MM TRAVEL, PROPORTIONAL RESPONSE TUNED SUSPENSION, REMOVABLE DOWNTUBE BATTERY, ALLOY SKID PLATE, 55MM CHAINLINE, INTERNAL CABLE ROUTING, 148X12MM THRU-AXLE, UDH, 200MM NATIVE POST MOUNT BRAKE, 1.5” – 1.8” TAPERED HEADTUBE, 40MM TWO-BOLT KICKSTAND COMPATIBLE
FORK: ROCKSHOX ZEB SELECT, 160MM, CHARGER RC, DEBONAIR+, 15X110MM MAXLE, 44MM OFFSET
HEADSET: ACROS ICR, 1.5" TO 1.8", SEALED BEARINGS
REAR SHOCK: ROCKSHOX DELUXE SELECT+, DEBONAIR+, 2-POS MODE ADJUST, ADJUSTABLE REBOUND, 230X62.5MM

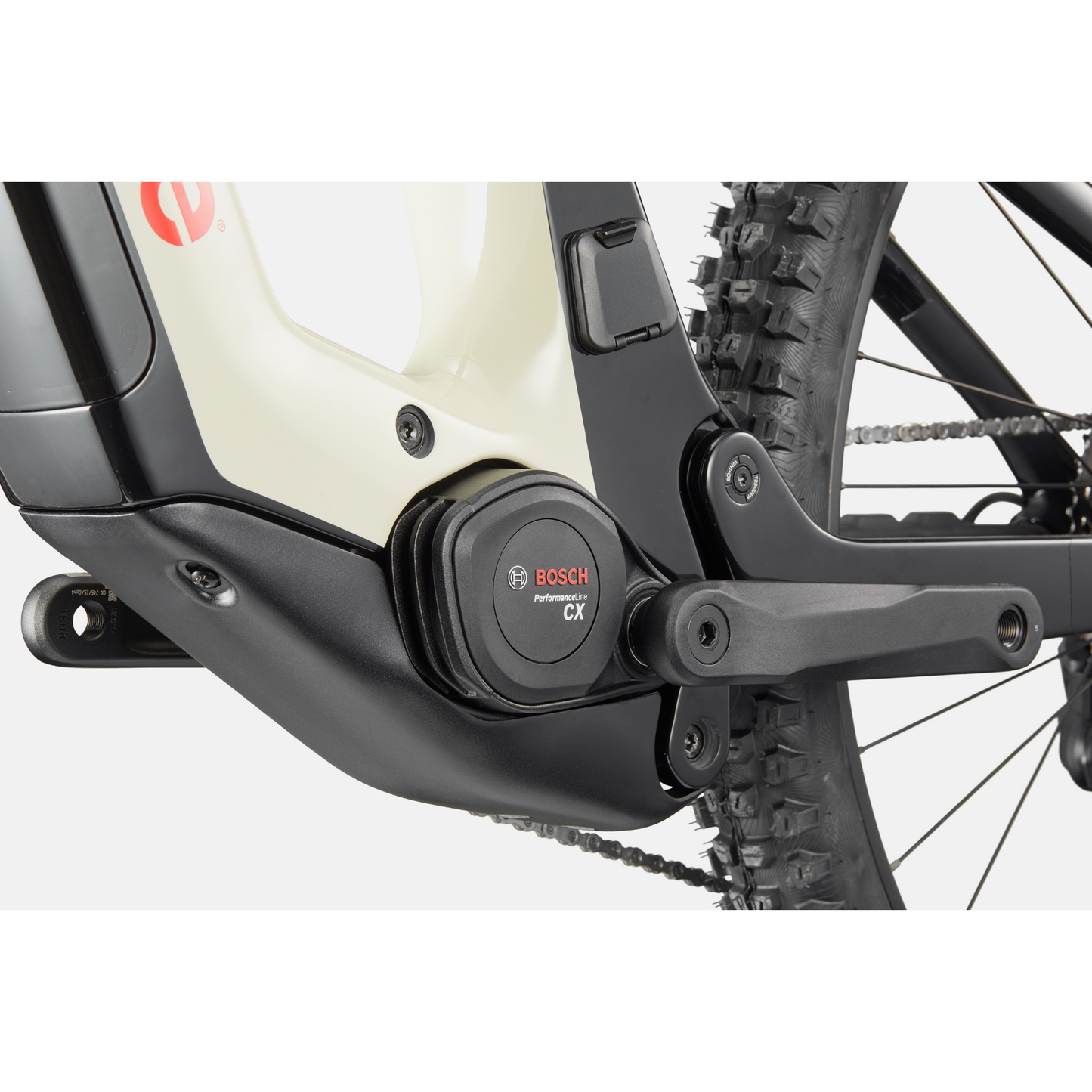

DRIVE UNIT: BOSCH PERFORMANCE LINE CX
BATTERY: BOSCH POWERTUBE, 800WH
CHARGER: BOSCH 4A

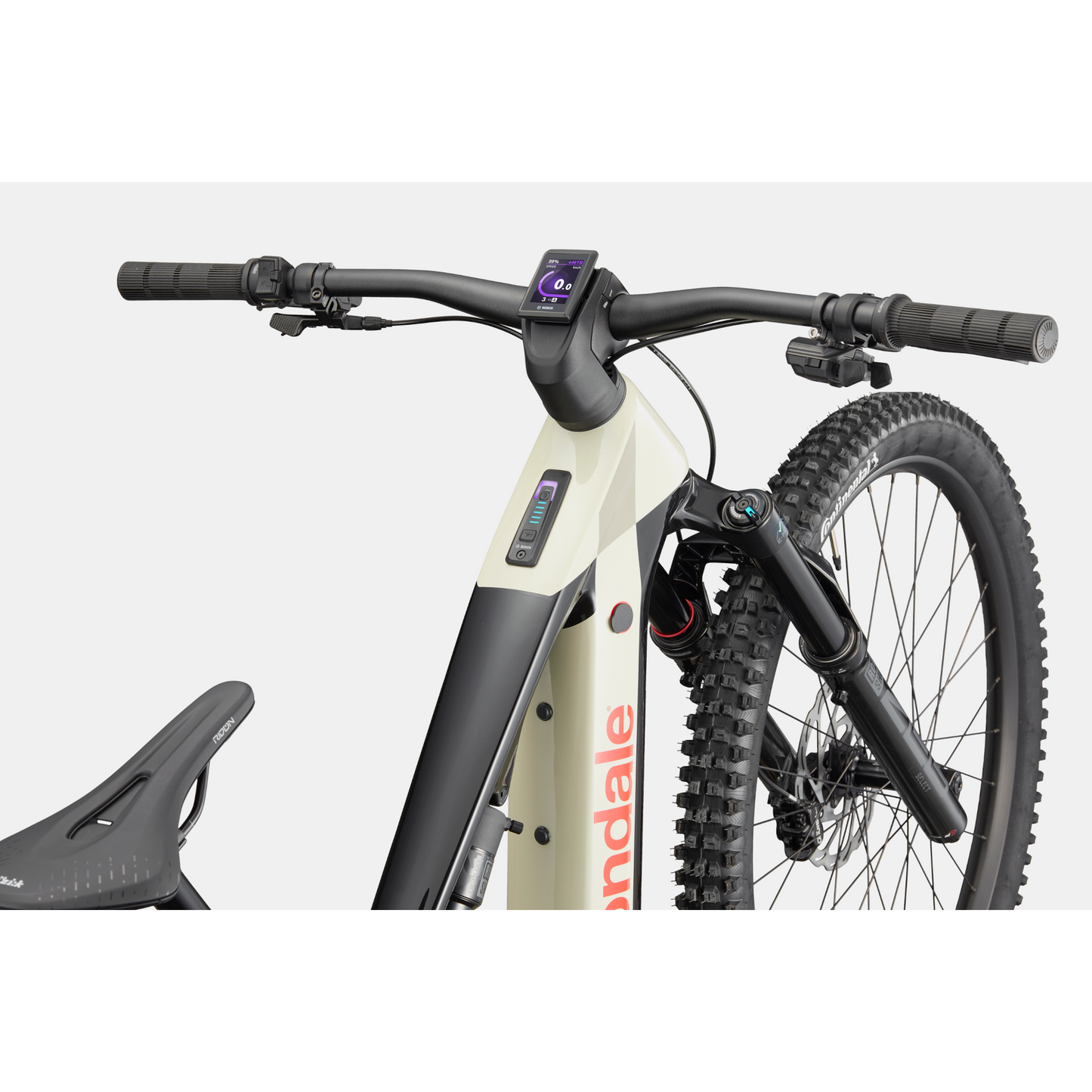

DISPLAY: TOP TUBE SYSTEM CONTROLLER W/ BOSCH KIOX 300 & MINI REMOTE

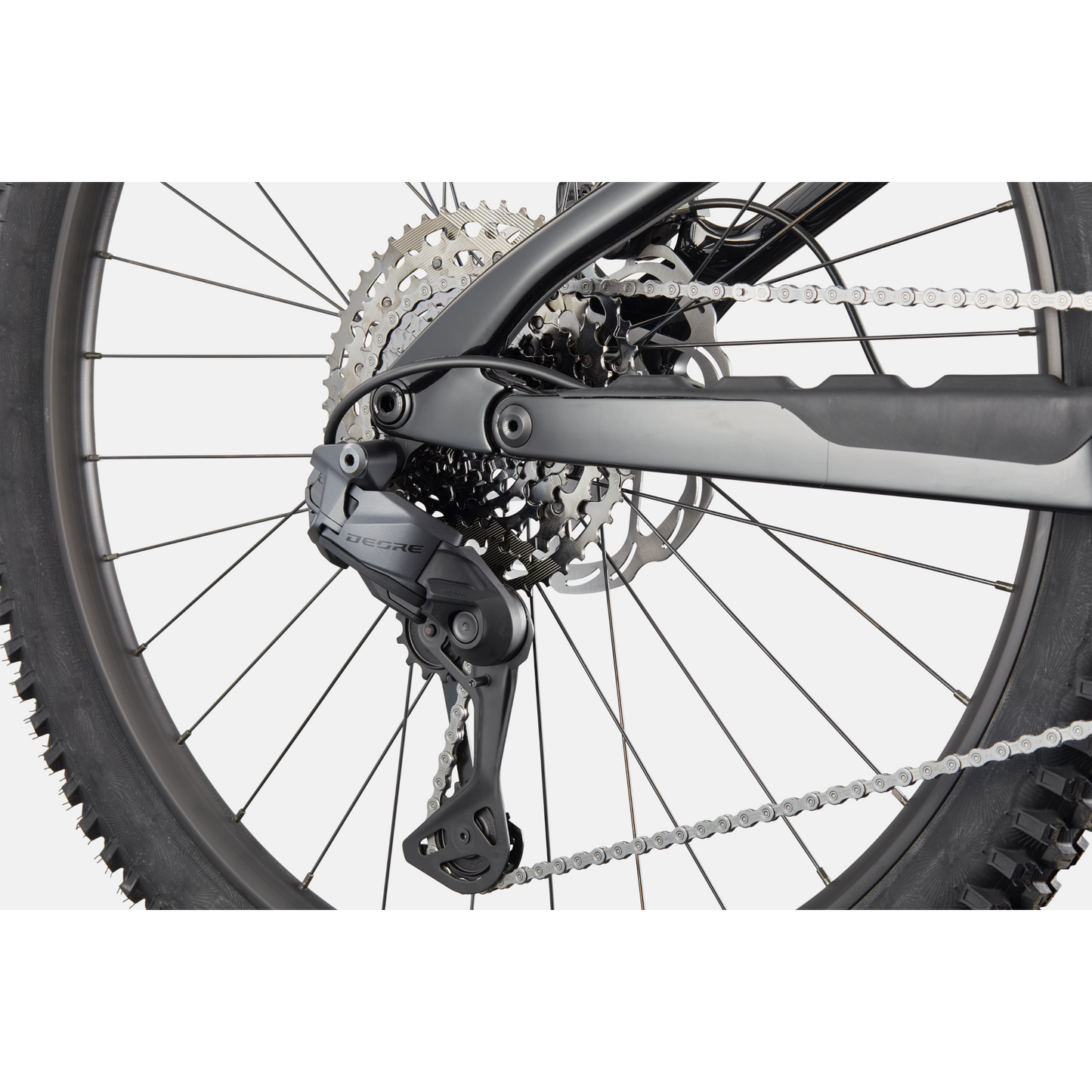

REAR DERAILLEUR: SHIMANO DEORE DI2 M6260, 11-SPEED, (E-SYSTEM POWERED)
SHIFTERS: SHIMANO DEORE DI2 M6250, WIRELESS, 11-SPEED
CHAIN: SHIMANO LG500, LINKGLIDE, 11-SPEED
CRANK: FSA BOSCH E-BIKE W/ 55MM CHAINLINE, 160MM, 34T
REAR COGS: SHIMANO CUES LG700, LINKGLIDE, 11-50, 11-SPEED
BRAKES: MAGURA LOUISE ELITE 4-PISTON HYDRAULIC DISC, 203/203MM MDR-S ROTORS, 2.0MM
BRAKE LEVERS: MAGURA LOUISE ELITE HYDRAULIC DISC
RIMS: WTB ST I30 TOUGH TCS, 30MM INNER WIDTH, 32H, TUBELESS READY
SPOKES: DT SWISS CHAMPION 2.0
TIRE SIZE: 2.4
WHEEL SIZE: 29
HUBS: (F) SHIMANO TC500, 15X110MM THRU-AXLE / (R) SHIMANO TC500, 12X148MM THRU-AXLE, CENTERLOCK
TIRES: (F) CONTINENTAL KRYPTOTAL-F, 29X2.4", ENDURO SOFT BLACK FOLDABLE / (R) CONTINENTAL KRYPTOTAL-R, 29X2.4", ENDURO SOFT BLACK FOLDABLE
HANDLEBAR: CANNONDALE 3 RISER, 6061 ALLOY, 25MM RISE, 8° SWEEP, 4° RISE, 800MM
STEM: CANNONDALE TRAIL HEADSUP W/ INTEGRATED DISPLAY MOUNT, 3D FORGED 6061 ALLOY, 1-1/8", 45MM, 0°
GRIPS: CANNONDALE TAPERRIDGE
SADDLE: FIZIK TERRA RIDON X5, 145MM, WINGFLEX, S-ALLOY MOBIUS RAIL
SEATPOST: CANNONDALE DOWNLOW DROPPER, INTERNAL ROUTING, 34.9, 150MM (S), 170MM (M), 200MM (L), 230MM (XL)
EXTRA: TUBELESS VALVES, BOSCH POWERMORE RANGE EXTENDER COMPATIBLE
VIEW MORE DETAILS ON WWW.CANNONDALE.COM
*Please note that bike specifications are subject to change without prior notice.
