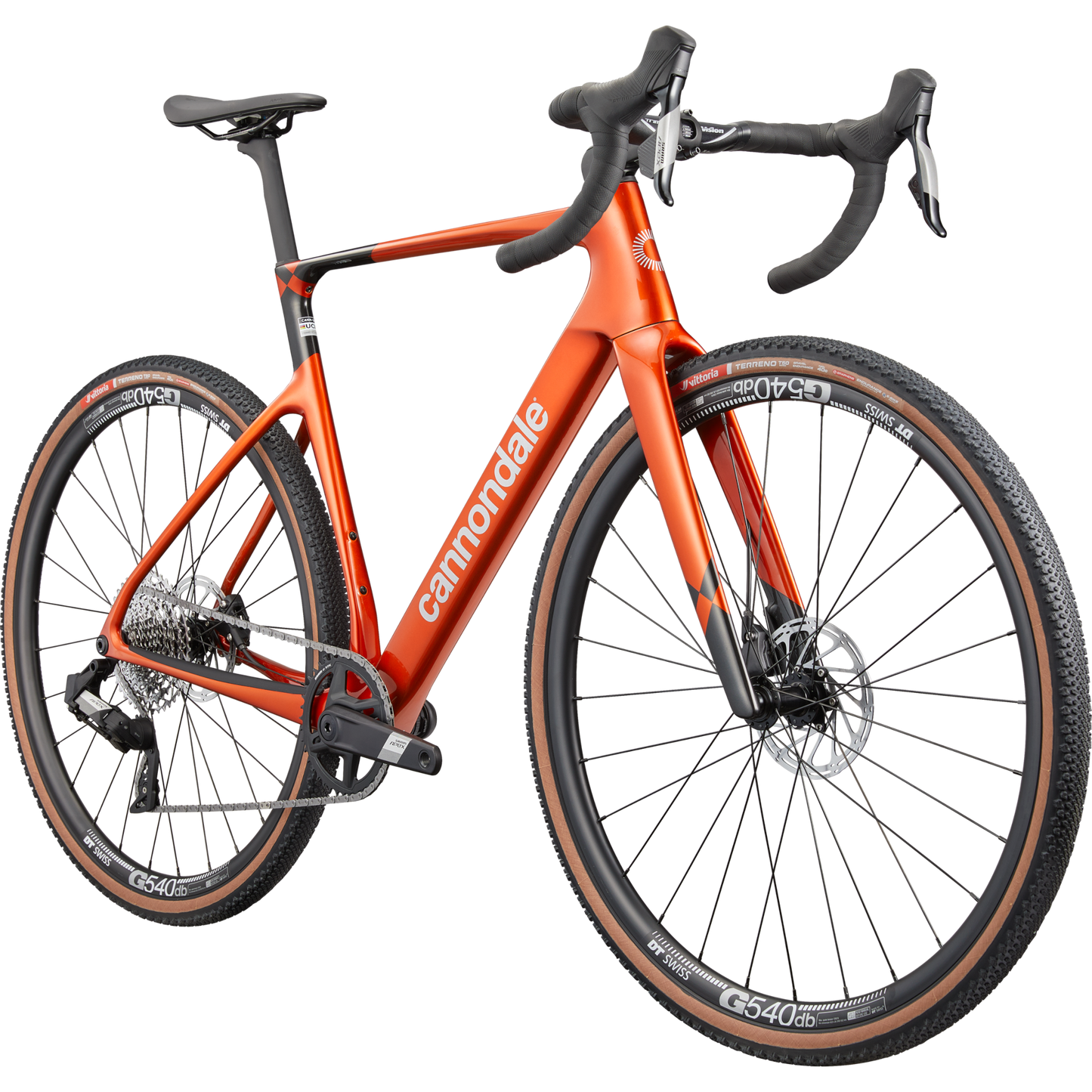

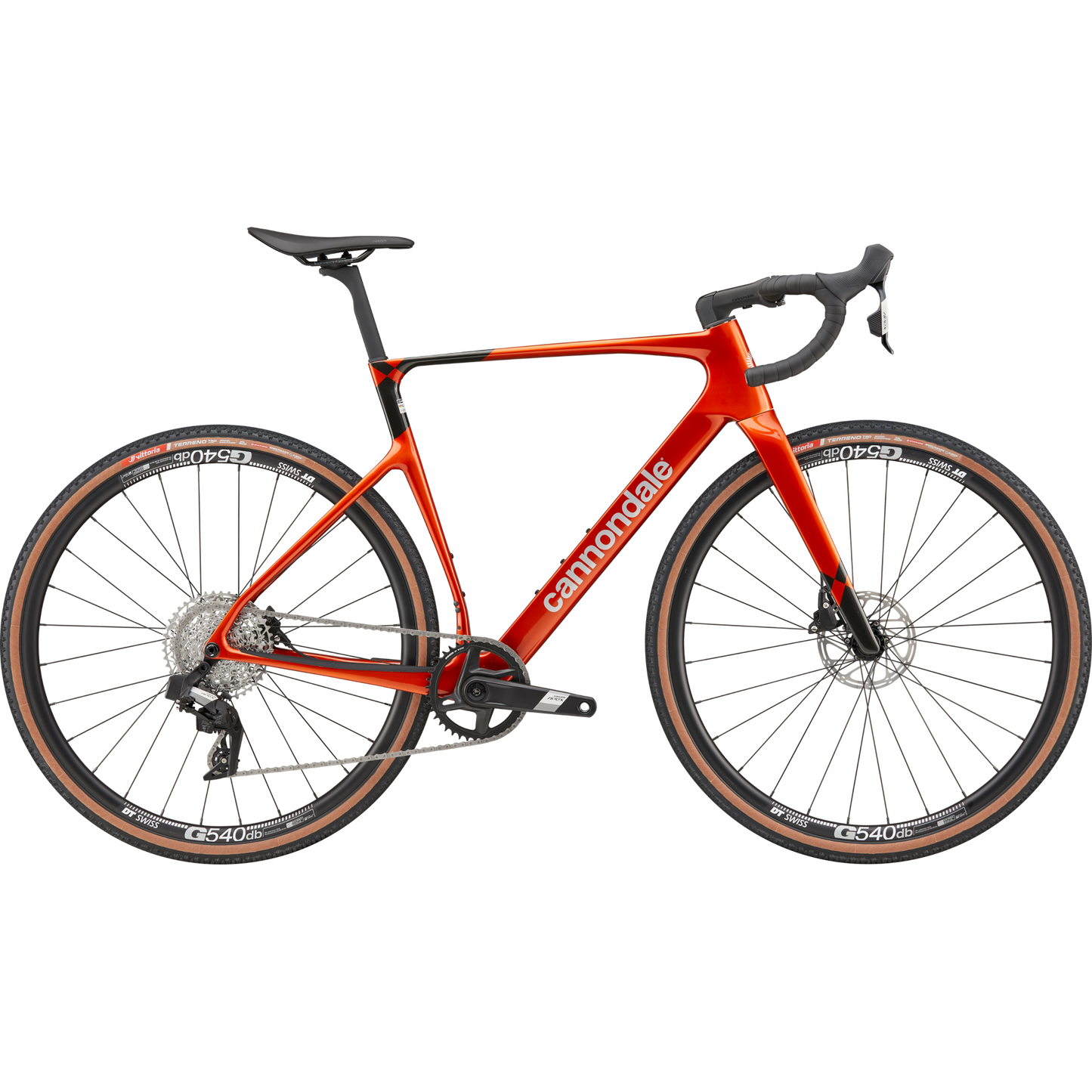

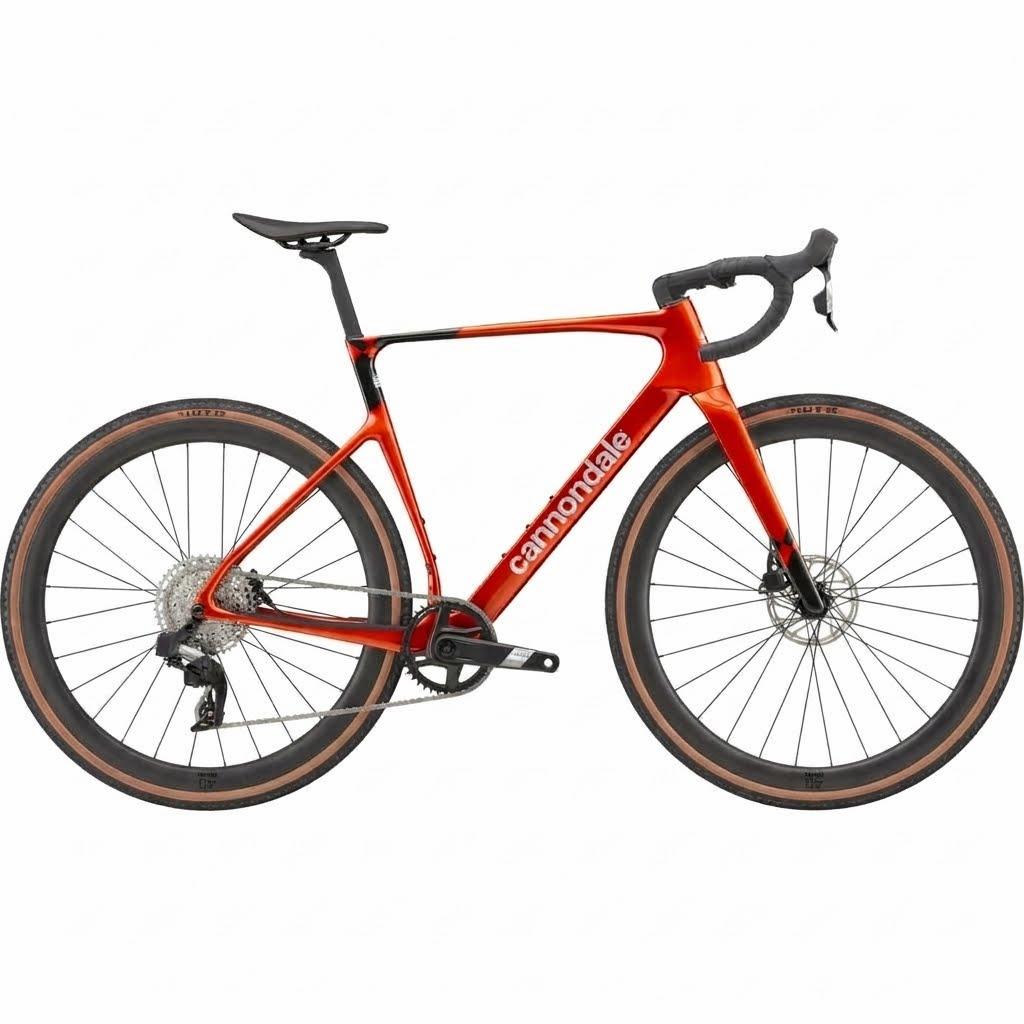

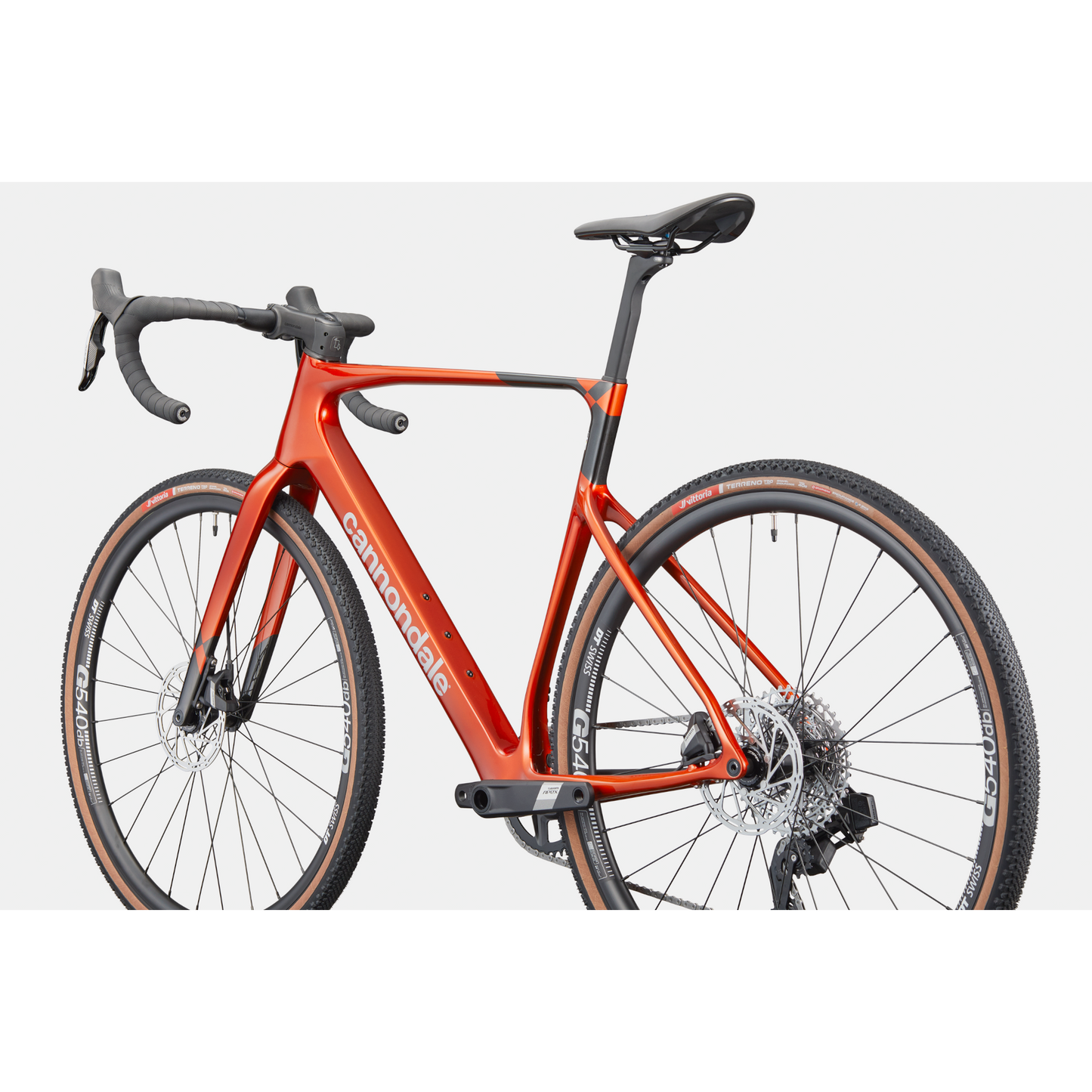

CANNONDALE SUPERX 4 AXS
Train, race, repeat. SuperX 4 AXS offers serious gravel racing chops at a more approachable price. It shares the same carbon frame as the more expensive models, and features a suite of high value, high performance components guaranteed to raise your game without killing your wallet. SRAM's proven Apex AXS XLPR 12-speed gravel group cracks off precise wireless shifts. Apex brakes deliver precise power and control. DT Swiss G540 gravel rims balance light weight with rugged durability. Everything you need to excel at high-speed gravel exploits.
PRODUCT HIGHLIGHTS
- Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
- Wireless electronic shifting from SRAM's workhorse Apex AXS XPLR 12-speed gravel group
- SRAM Apex hydraulic disc brakes deliver powerful, consistent braking
- Light and durable DT Swiss G540 gravel rims, wrapped in 40c Vittoria Terreno T50 tubeless ready tires
- Lightweight Cannondale C1 Aero 27 Carbon seatpost
SPECIFICATIONS:

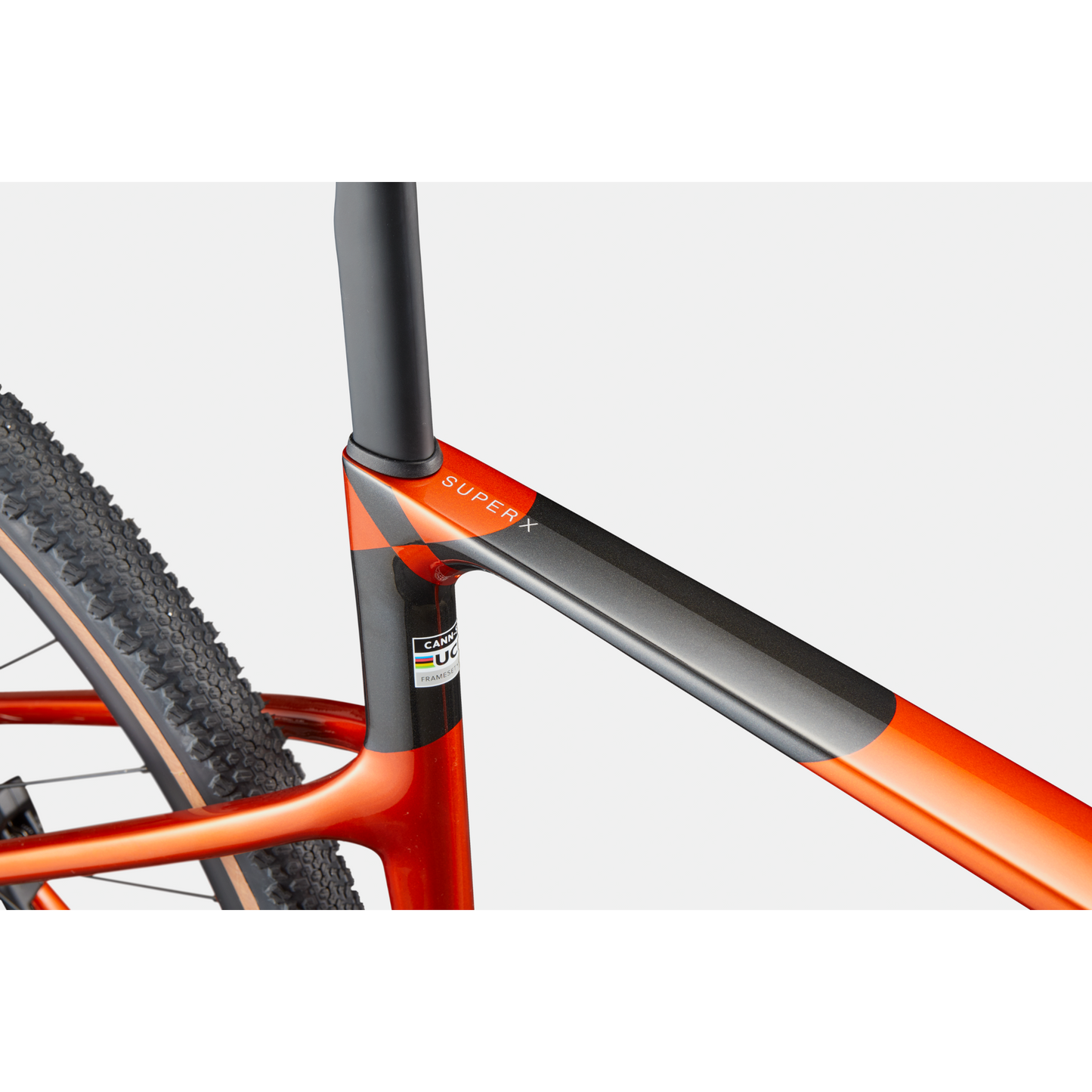

FRAME: SUPERX CARBON, PROPORTIONAL RESPONSE CONSTRUCTION, INTERNAL CABLE ROUTING, 12X142MM THRU-AXLE, UDH, BSA 68MM THREADED BB, FLAT MOUNT DISC, INTEGRATED SEATPOST BINDER
FORK: SUPERX CARBON, INTEGRATED CROWN RACE, 12X100MM THRU-AXLE, FLAT MOUNT DISC, INTERNAL ROUTING, 1-1/8" TO 1-1/2" DELTA STEERER, 55MM OFFSET
HEADSET: INTEGRATED, 1-1/8" - 1.5"

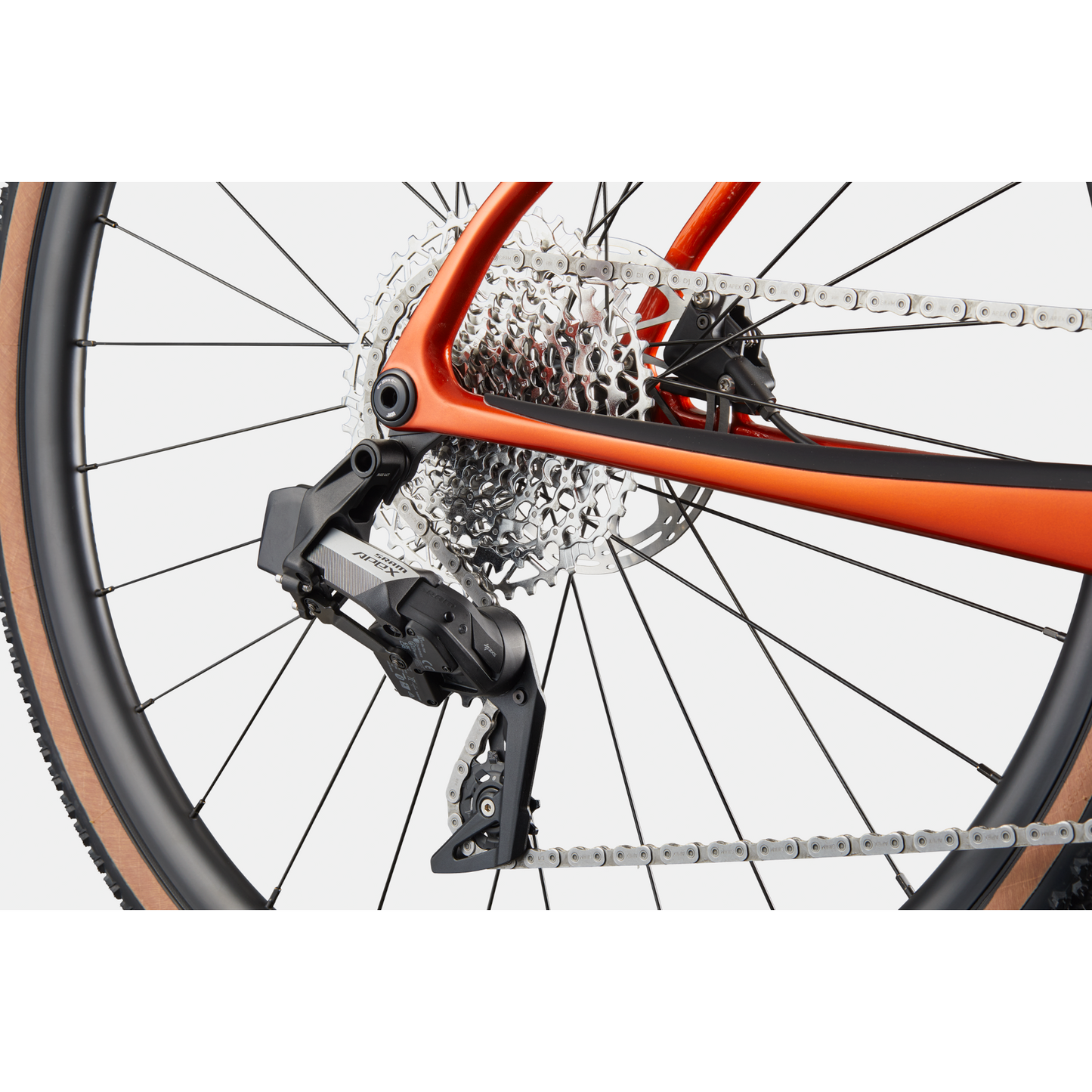

REAR DERAILLEUR: SRAM APEX AXS XPLR, 12-SPEED

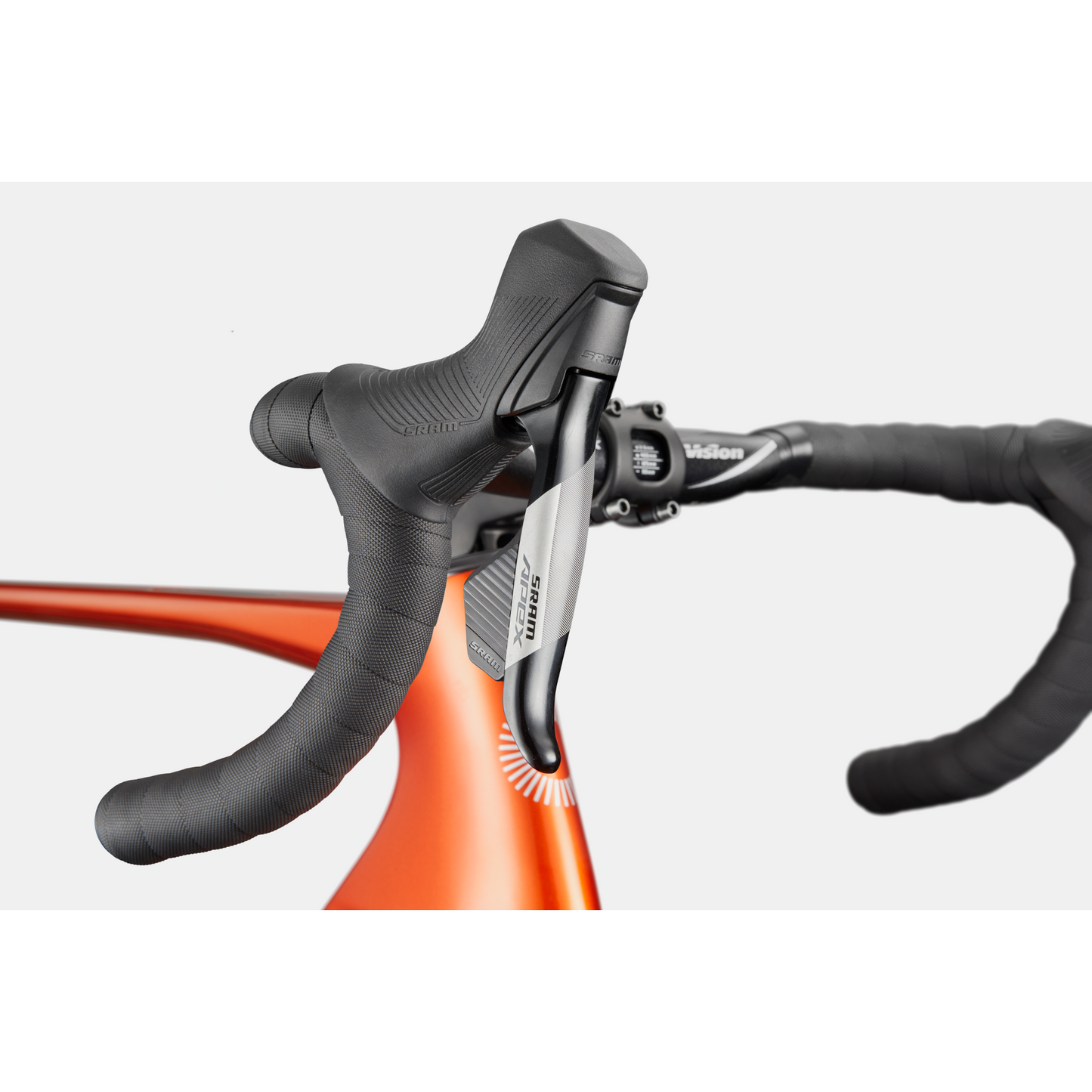

SHIFTERS: SRAM APEX AXS, 12-SPEED
CHAIN: SRAM APEX, 12-SPEED

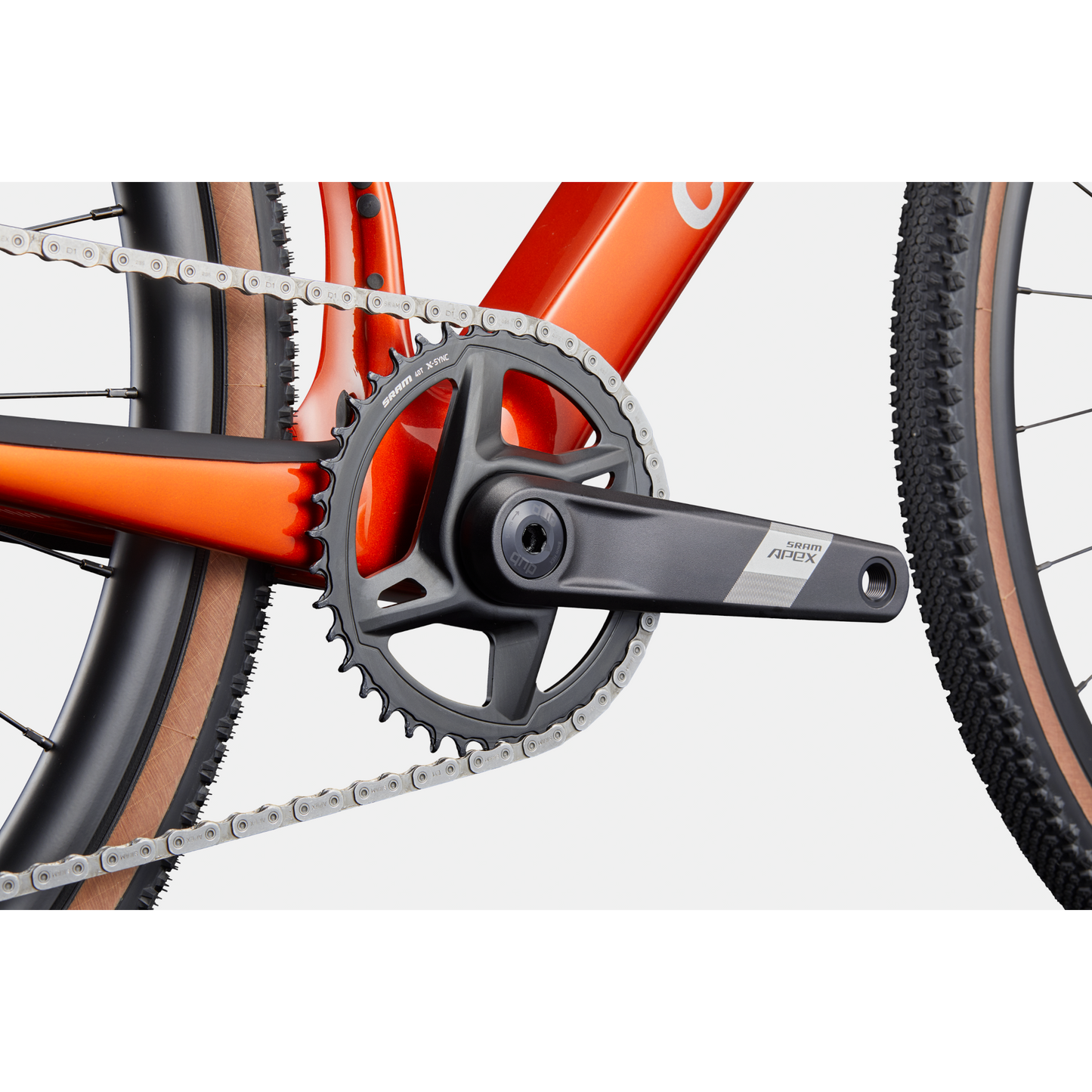

CRANK: SRAM APEX 1 WIDE, 40T: 165MM (46CM), 170MM (51CM), 172.5 (54-56CM), 175MM (58-61CM)
REAR COGS: SRAM APEX XPLR PG-1231, 11-44, 12-SPEED
BOTTOM BRACKET: SRAM DUB BSA ROAD 68 WIDE
BRAKES: SRAM APEX HYDRAULIC DISC, CENTERLINE 160/160MM CENTERLOCK ROTORS
BRAKE LEVERS: SRAM APEX AXS HYDRAULIC DISC
RIMS: DT SWISS G540, 24MM INNER WIDTH, 28H, TUBELESS READY
SPOKES: DT SWISS CHAMPION
TIRE SIZE: 40
WHEEL SIZE: 700C
HUBS: (F) DT SWISS 370, 12X100MM CENTERLOCK / (R) DT SWISS 370 LN RATCHET SYSTEM, 12X142MM CENTERLOCK
TIRES: VITTORIA TERRENO T50, 700X40C, TUBELESS READY

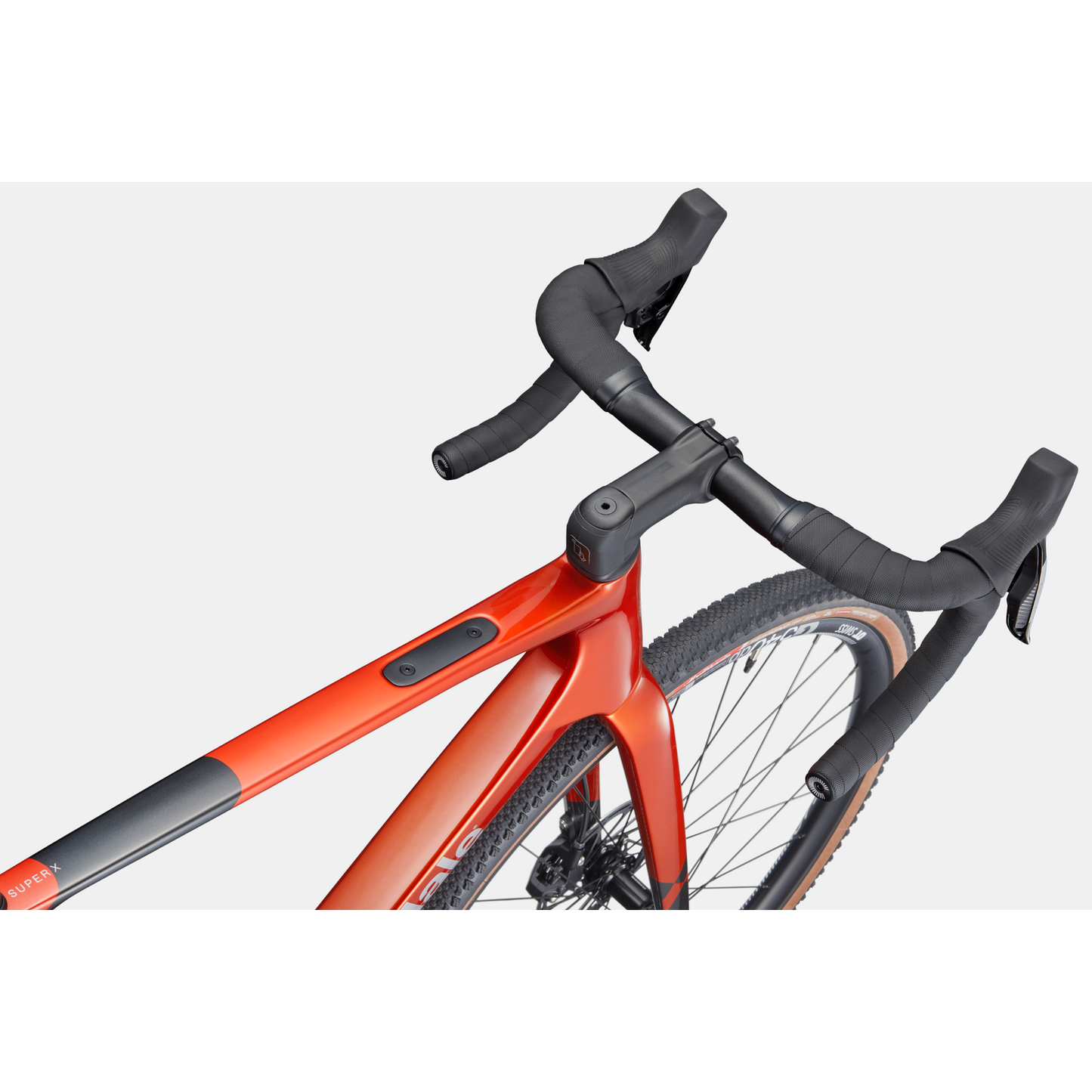

HANDLEBAR: VISION TRIMAX AERO ALLOY: 400MM (46-51CM), 420MM (54-61CM)
STEM: CANNONDALE C1 CONCEAL, ALLOY, 31.8, -6°: 90MM (46-51M), 100MM (54-56CM), 110MM (58-61CM)
GRIPS: CANNONDALE BAR TAPE, 3.5MM
SADDLE: FIZIK VENTO ARGO X5, S-ALLOY RAILS, 140MM
SEATPOST: CANNONDALE C1 AERO 27 CARBON, SMARTSENSE COMPATIBLE, 0MM OFFSET (46CM), 15MM OFFSET (51-61CM)
EXTRA: TUBELESS VALVES, SRAM AXS CHARGER
VIEW MORE DETAILS ON WWW.CANNONDALE.COM
*Please note that bike specifications are subject to change without prior notice.
