Cannondale SuperX Carbon 3 Raw '25

CANNONDALE SUPERX 3

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

PRODUCT HIGHLIGHTS

• Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
• Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset
• Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
• DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability
• Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
• Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces

SPECIFICATIONS:

FRAME: SUPERX CARBON, PROPORTIONAL RESPONSE CONSTRUCTION, INTERNAL CABLE ROUTING, 12X142MM THRU-AXLE, UDH BSA 68MM THREADED BB, FLAT MOUNT DISC, INTEGRATED SEATPOST BINDER
FORK: SUPERX CARBON, INTEGRATED CROWN RACE, 12X100MM THRU-AXLE, FLAT MOUNT DISC, INTERNAL ROUTING, 1-1/8" TO 1-1/2" DELTA STEERER, 55MM OFFSET
HEADSET: INTEGRATED, 1-1/8" - 1.5"

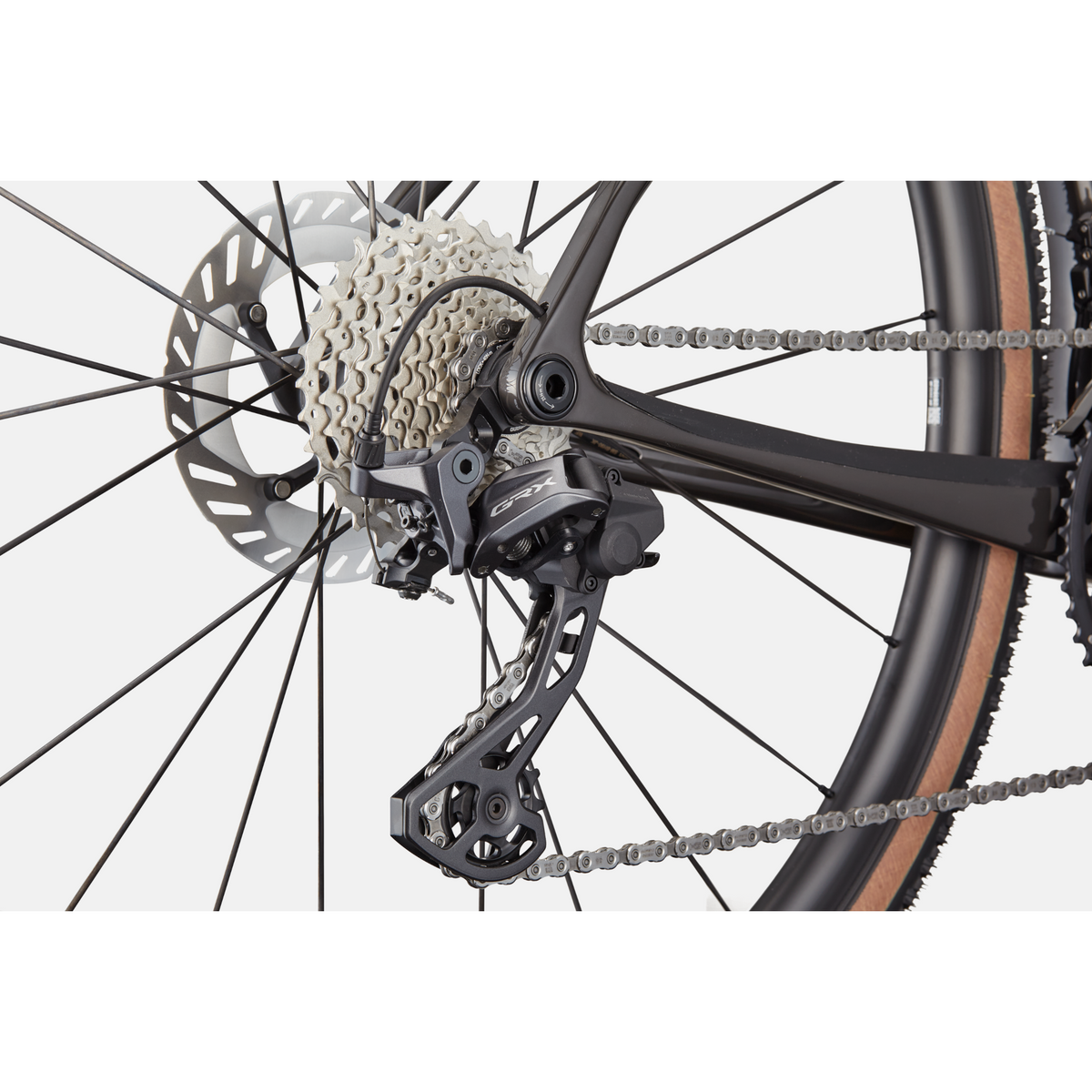

REAR DERAILLEUR: SHIMANO GRX 820, SHADOW RD+
FRONT DERAILLEUR: SHIMANO GRX 820, BRAZE-ON
SHIFTERS: SHIMANO GRX 820, 12-SPEED
CHAIN: SHIMANO M8100, 12-SPEED

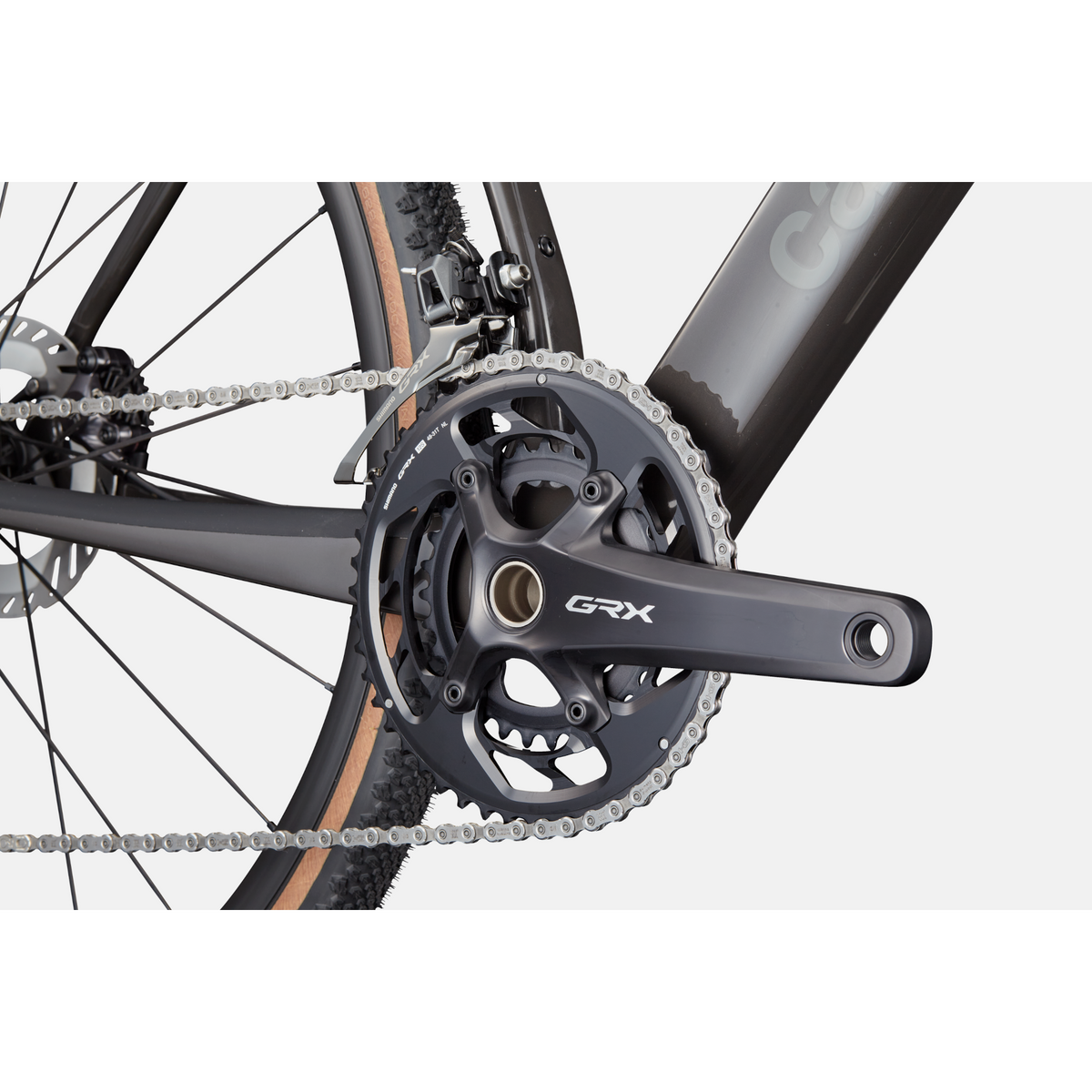

CRANK: SHIMANO GRX RX820, 48/31: 170MM (51CM), 172.5 (54-56CM), 175MM (58-61) / NOTE: SIZE 46CM GETS 165MM GRX RX610 CRANKS, 46/30
REAR COGS: SHIMANO 105 7100, 11-36, 12-SPEED
BOTTOM BRACKET: SHIMANO BSA 68
BRAKES: SHIMANO GRX 820, 160/160MM CL800 ROTORS
BRAKE LEVERS: SHIMANO GRX RX820 HYDRAULIC DISC
RIMS: DT SWISS G1800 SPLINE 24MM INNER WIDTH, 25MM DEPTH, 24H, TUBELESS READY
SPOKES: DT SWISS AERO COMP
TIRE SIZE: 40
WHEEL SIZE: 700C
HUBS: (F) DT SWISS 370, 12X100MM CENTERLOCK / (R) DT SWISS 370 LN RATCHET SYSTEM, 12X142MM CENTERLOCK
TIRES: VITTORIA TERRENO T50, 700X40C, TUBELESS READY
FRONT TIRE: VITTORIA TERRENO T50, 700X40C
REAR TIRE: VITTORIA TERRENO T50, 700X40C

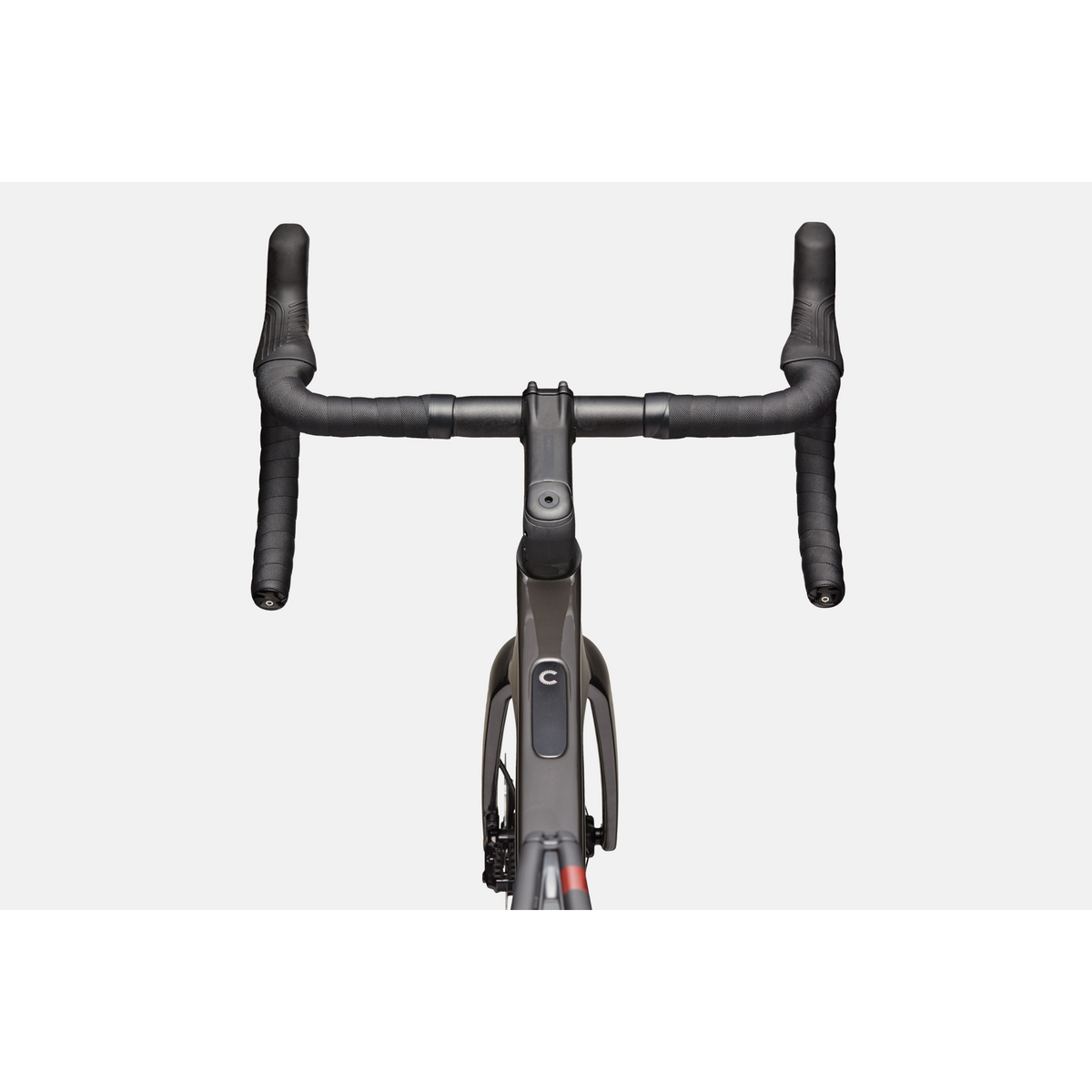

HANDLEBAR: CANNONDALE C2, 7050 ALLOY, COMPACT: 400MM (46-51CM), 420MM (54-61CM)
STEM: CANNONDALE C1 CONCEAL, ALLOY, 31.8, -6°: 90MM (46-51M), 100MM (54-56CM), 110MM (58-61CM)
GRIPS: CANNONDALE BAR TAPE, 3.5MM
SADDLE: PROLOGO DIMENSION AGX STN
SEATPOST: CANNONDALE C1 AERO 27 CARBON, SMARTSENSE COMPATIBLE, 0MM OFFSET (46CM), 20MM OFFSET (51-61CM)
EXTRA: TUBELESS VALVES

VIEW MORE DETAILS ON WWW.CANNONDALE.COM

*Please note that bike specifications are subject to change without prior notice.
