ENVE Mog Sand
ENVE MOG
The MOG embodies everything a modern gravel bike should be—purpose‑built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in‑frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.
Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long‑haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.
CARGO BAY
The MOG debuts ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
PERFORMANCE GEOMETRY

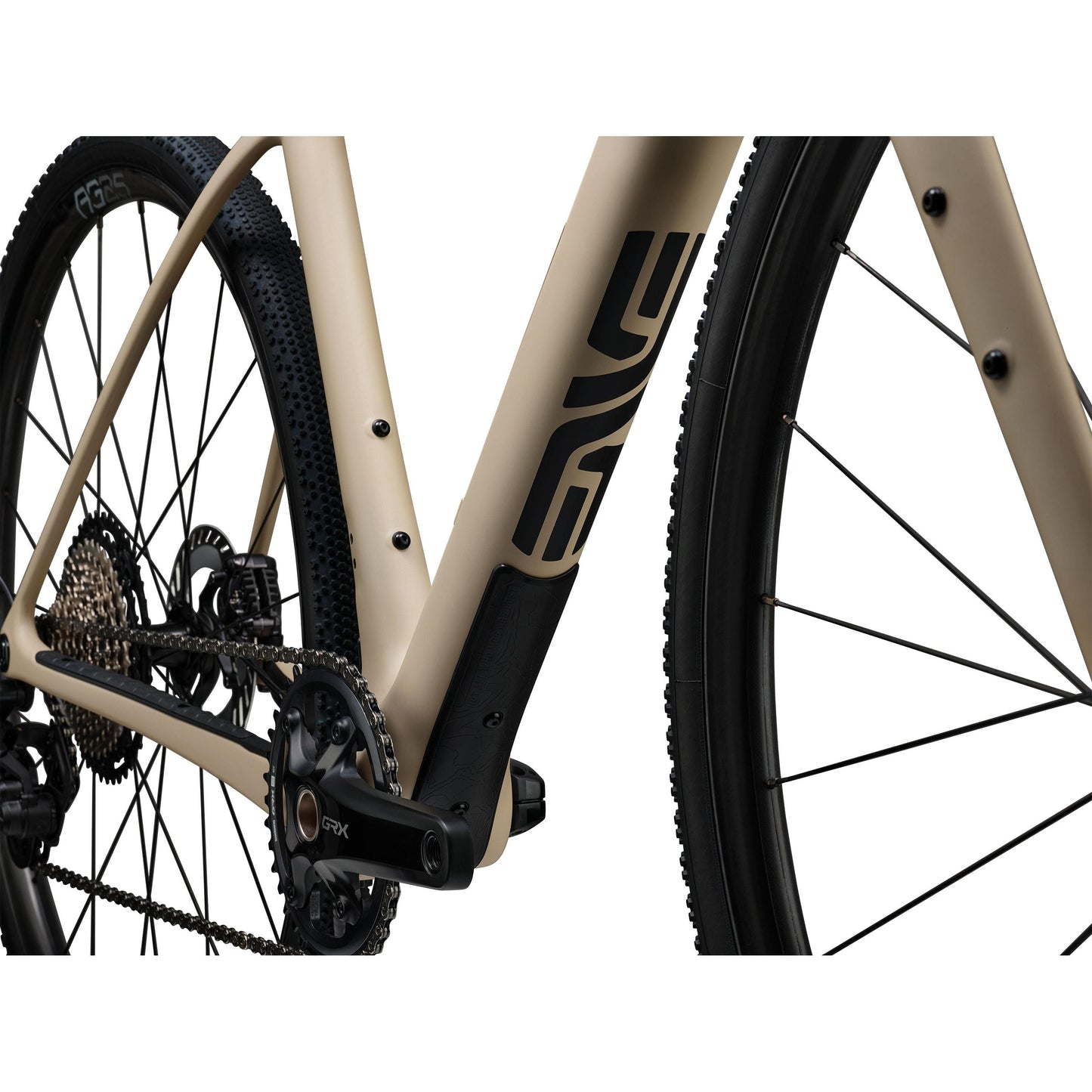

With six frame sizes and three unique fork rakes, the MOG has been designed to ensure optimal handling regardless of frame size. Through design solutions, such as a solid right chainstay at the bottom bracket to reduce width, the MOG achieves the geometry required for performance-minded cyclists without compromising what it can do off the race course.
IN-ROUTE SYSTEM
ENVE’s IN-Route System is designed to hide hoses and wires from the wind, improving the bike’s aero performance with a practical and user-friendly solution. This doesn’t come at the expense of limiting drivetrain options – the MOG is compatible with most drivetrain brands, models, and configurations on the market.
RACE, PERFORMANCE, OR ADVENTURE

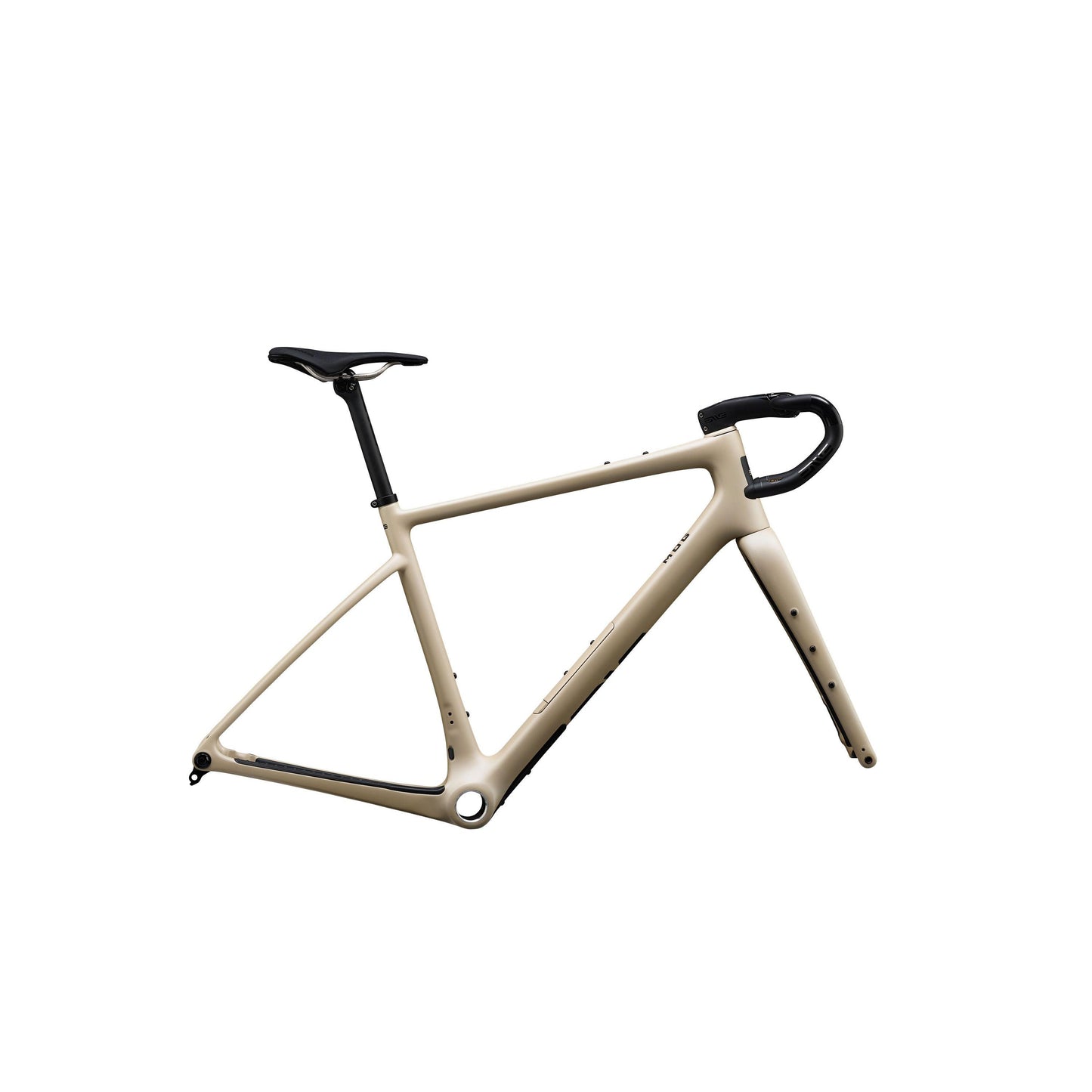

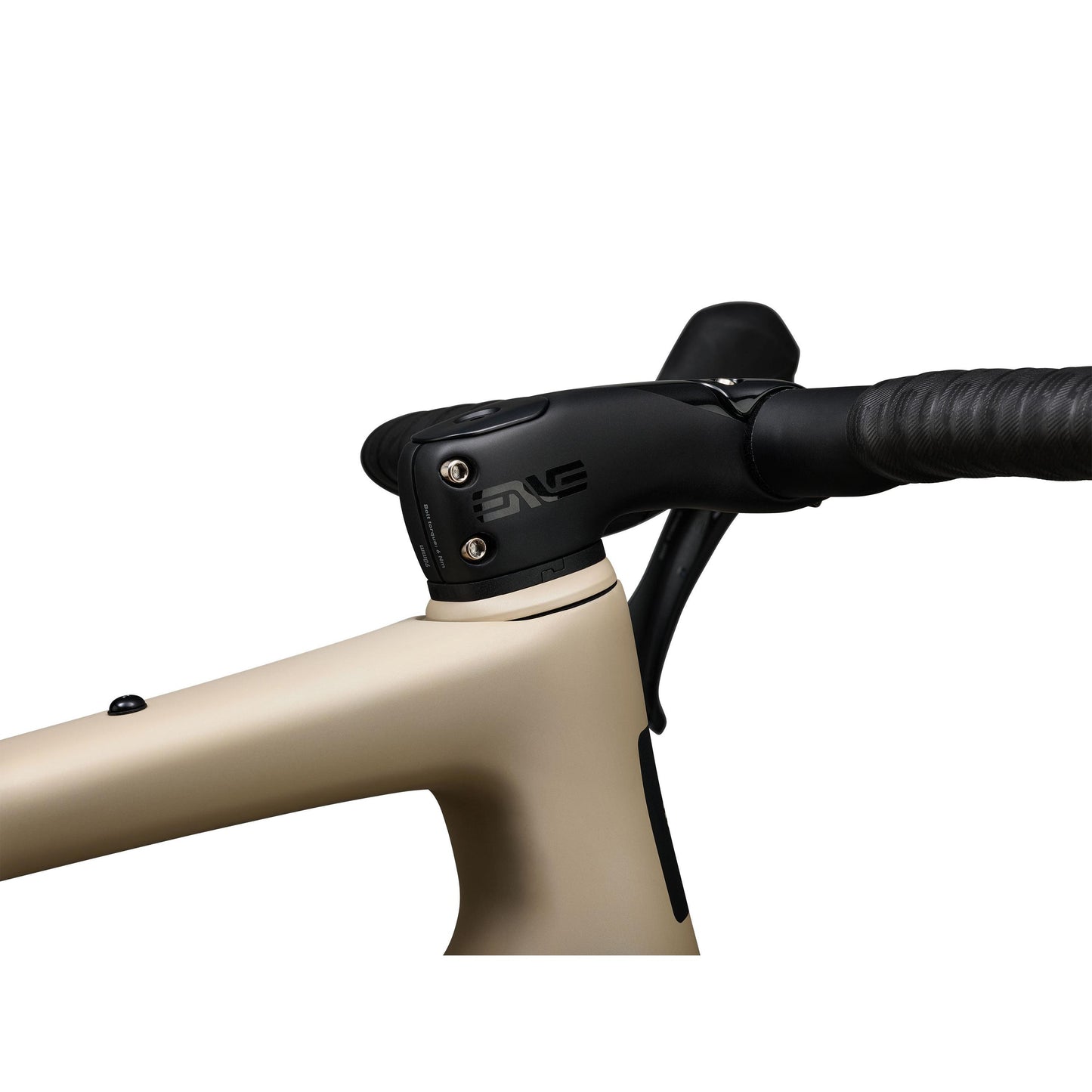

The MOG is sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences. With four handlebar options and a choice of dropper seatpost, you’re able to build the exact MOG you want based on the ride experience you’re seeking.
700C MAXIMALIST
With clearance for up to 700c x 50 mm, the MOG eliminates the complexities of flip chips and extra wheelsets so there’s no need to think about 650b again. You don’t have to use all 50 mm of it, but we assure you, you’ll sleep easier knowing it’s there. With geometry optimized around a 42 mm tire, the MOG’s versatility allows an expansive range of tire sizes from 36 mm up to 50 mm.
SPECIFICATIONS
FRAME MATERIAL: ENVE M.O.D CARBON, 12X142 THRU-AXLE, FLAT-MOUNT DISC, THREADED T47 BB, INTERNAL ROUTING, FENDER COMPATIBLE
FORK MATERIAL: ENVE M.O.D CARBON, 12X100 THRU-AXLE, FLAT-MOUNT DISC, INTERNAL ROUTING, FENDER COMPATIBLE
TARGET APPLICATION: GRAVEL RACING/RIDING/EXPLORATION/ADVENTURE
FORK RAKE: 57, 55, 53
FORK AXLE TO CROWN: 395MM
FRAME SIZE/FORK RAKE: 49CM/57, 52CM/57, 54CM/55, 56CM/55, 58CM/53, 60CM/53
FRAME WEIGHT: 950G +/- 2% (SIZE 56, PAINTED, NO HARDWARE)
HEADSET: ENVE INTEGRATED IS52/IS52 INTERNAL DROP-IN
HEADSET BEARING: 1.5" IS52 UPPER AND LOWER
SEAT POST DIAMETER: 27.2
BB TYPE: T47 INBOARD BEARING
BRAKE MOUNT: FLAT MOUNT
BRAKE ROTOR COMPATIBILITY: F: 160/180, R: 140/160 (ADAPTERS REQUIRED)
FRONT AXLE: 12X100 (TOTAL LENGTH: 122, TP:1.5, TL:15)
REAR AXLE: 12X142 (TOTAL LENGTH: 168, TP:1.0, TL:14)
MINIMUM TIRE SIZE: 700 X 36C
OPTIMAL TIRE SIZE: 700 X 40C-44C
MAXIMUM LISTED TIRE CLEARANCE: 700 X 50C
FRAME ROUTING: ENVE IN-ROUTE INTERNAL
WATER BOTTLE CAPACITY: 3
TOP TUBE MOUNTS: YES
FENDER MOUNT COMPATIBLE: YES
WHEEL SIZE: 700C (650B NOT RECOMMENDED)
VIEW MORE INFO ON WWW.ENVE.COM
*Please note that bike specifications are subject to change without prior notice.
