Factor Lando XC Vintage Blue

A 29ER TO ROLLOVER YOUR BEST TIMES

Introducing the Factor LANDO XC FOX, the ultimate mountain bike designed for those seeking speed and excitement. With its new FOX Racing Suspension partnership, this lightweight full suspension 29er outperforms the competition. Packed with a race-oriented geometry and a suspension system that works seamlessly, it guarantees an exhilarating ride. Whether you're a Cape Epic aspirant, a gravel crossover, or a roadie seeking off-road adventures, the Factor LANDO XC FOX delivers unmatched performance and thrills.

VERTICALLY ORIENTED SHOCK

Choosing to design the LANDO XC with a Fox Float SL vertical shock offers huge benefits both for weight savings and rigidity: shock forces can be concentrated in the robust and already built-up bottom bracket region, thereby allowing for a svelte top tube that doesn't require excessive carbon layering and weight. The design also ensures that the shock is completely isolated from any side loads, thus improving shock life and small bump sensitivity by removing binding. And since the Fox shock has been streamlined to save every gram possible, this represents the ultimate racing set up.

OPTIMIZED FOR FOX COMPONENTS

Sharing a commitment to high performance and durable quality, Factor and Fox Racing make a perfect match. By combining the svelte, streamlined Fox suspension technology and dropper post with our ultra-high quality carbon layup and frame design, the LANDO XC stands out as the ultimate cross-country racing bike. It has proved itself as a winner in some of the toughest races on the calendar. It’s a bike that excels at elite competitions and is super fun still at the bike park.

NOT ROWDY, BUT A REFINED XC RACER

Are you focused on fast? With the LANDO XC you can hit the trails knowing that your ride will offer laser-sharp handling and lightweight responsiveness. Comfort levels remain high even after hours in the saddle.

SPECIFICATIONS

FRAME: TEXTREME®, TORAY®, NIPPON GRAPHITE® PITCH-BASED FIBER
FORK: FOX 34 STEP CAST 29″ 120MM TRAVEL 44MM OFFSET
SEATPOST: 0 SETBACK 31.6MM ROUND SEATPOST
BARSTEM: REFINED CARBON BARSTEM WITH TUNED STIFFNESS SEMI-INTEGRATED CABLING SOLUTION USING A 1-1/2″ UPPER BEARING WITH A 1-1/8″ STEERER TUBE
HEADSET: CERAMICSPEED SLT BEARINGS 1-1/2″ UPPER AND LOWER BEARINGS, WITH A REDUCER TO UPPER 1-1/8″ STEERER
HEAD TUBE DIAMETER: HEADSET, 1-1/2″ UPPER AND LOWER BEARINGS, WITH A REDUCER TO UPPER 1-1/8″ STEERER
SADDLE RAIL CLAMPS: 7X7 AND 7X9
BOTTOM BRACKET: CERAMICSPEED T47 X 88.5 FOR 1X SPECIFIC / CERAMICSPEED COATED BEARINGS
CABLE ROUTING: INTERNAL
COMPATIBLE COMPONENTS: 1X, ELECTRONIC OR MECHANICAL
BRAKE TYPE: DISC
MAX ROTOR SIZE: 180MM REAR
MAX CHAINRING: 36-TOOTH
REAR SHOCK: FOX FLOAT SL 190X45MM 115MM TRAVEL
FRONT AXLE: 15MM X 110MM, BOOST
REAR AXLE: 12MM X 148MM, BOOST
WHEELSET: BLACK INC TWENTY SEVEN
WHEEL SIZE: 29-INCH
MAX TIRE CLEARANCE: 2.4-INCH TIRE CLEARANCE (WITH MUD)
WEIGHT: 2100G INCLUDING SHOCK
MANUFACTURER WARRANTY: LIMITED LIFETIME WARRANTY

COMPLETE BIKE SPECIFICATIONS:

FRAMESET

FRAME: FACTOR LANDO XC

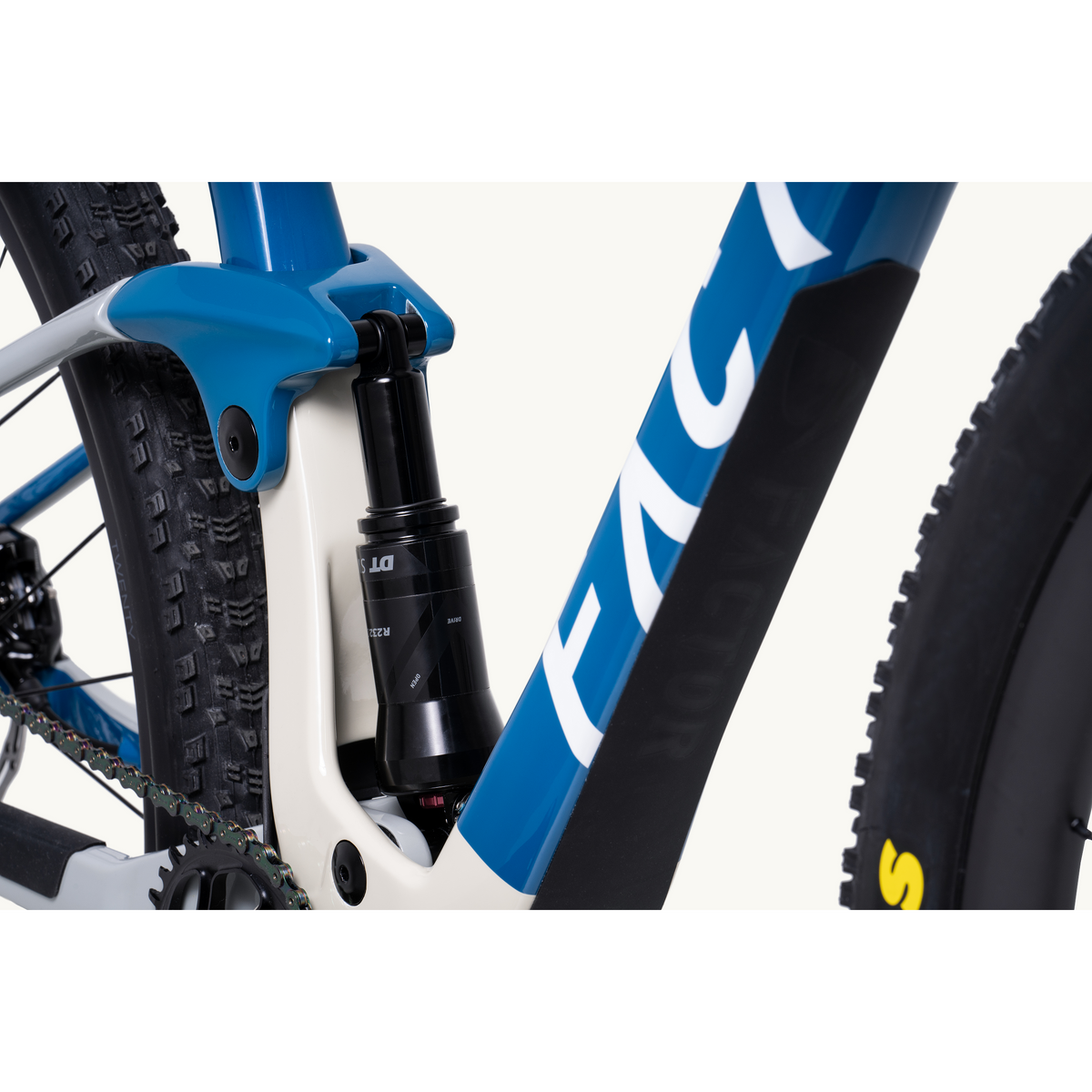

REAR SHOCK: DT SWISS R232 (115MM TRAVEL)
BOTTOM BRACKET: CERAMIC SPEED T47
REMOTE: DT SWISS 3-POS LEVER
HANDLEBAR: BLACK INC CARBON INTEGRATED
SEATPOST: BLACK INC CARBON 31.6MM ** FOX TRANSFER SL 100MM TRAVEL OPTIONAL EXTRA

SRAM XX-SL

FRAME: FACTOR LANDO XC
FORK: FOX FACTORY 34 GRIP SL STEP CAST, 120MM TRAVEL, 44MM OFFSET, REMOTE LOCKOUT
REAR SHOCK: FOX FLOAT SL 190MM X 45MM, 115MM TRAVEL, REMOTE LOCKOUT
HANDLEBAR: BLACK INC CARBON INTEGRATED
REMOTE: FOX
SHIFTER: SRAM AXS POD
CRANKSET: SRAM XX-SL
BOTTOM BRACKET: CERAMIC SPEED T47
CASSETTE: SRAM XX-SL 10-52T
CHAIN: SRAM XX-SL
BRAKESET: SRAM LEVEL ULTIMATE STEALTH
WHEELSET: BLACK INC TWENTY-SEVEN CARBON
HUBS: BLACK INC WITH CERAMIC SPEED BEARINGS
TYRES: MAXXIS REKON RACE
SEATPOST: BLACK INC CARBON 31.6MM** FOX TRANSFER SL 100MM TRAVEL OPTIONAL EXTRA
SADDLE: SELLE ITALIA SLR BOOST

VIEW MORE DETAILS ON WWW.FACTORBIKES.COM

*Please note that bike specifications are subject to change without prior notice.
