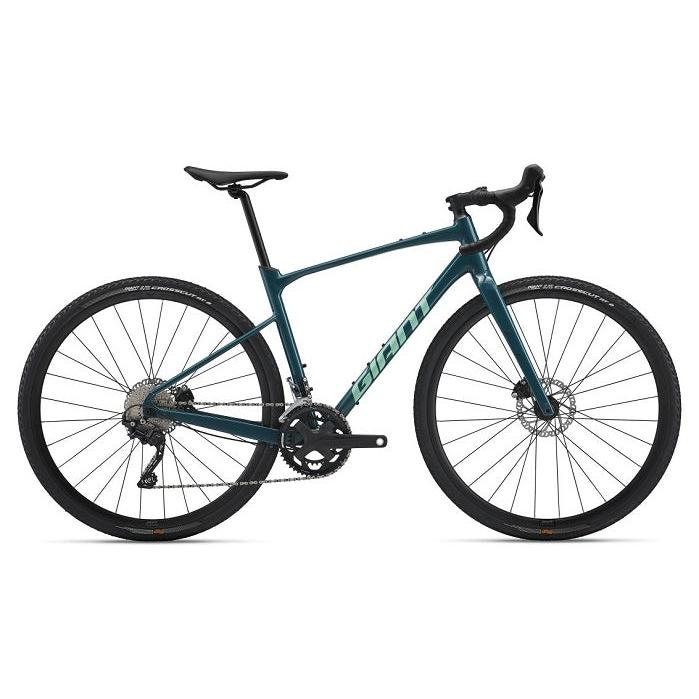

Giant Revolt 1 '22

GIANT REVOLT 1

Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

PRODUCT HIGHLIGHTS

• Confident handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
• Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS:

FRAME: ALUXX-GRADE ALUMINUM, 12X142MM THRU-AXLE, DISC, FLIP CHIP DROPOUT
FORK: ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12MM THRU-AXLE, DISC
SHOCK: N/A
HANDLEBAR: GIANT CONTACT XR D-FUSE, 31.8MM XS:42CM, S:42CM, M:44CM, M/L:44CM, L:46CM, XL:46CM
GRIPS: CORK TAPE WITH GEL
STEM: GIANT CONTACT, 8-DEGREE XS:50MM, S:60MM, M:70MM, M/L:80MM, L:80MM, XL:90MM
SEATPOST: GIANT D-FUSE, ALLOY, 14MM OFFSET
SADDLE: GIANT APPROACH
PEDALS: N/A
SHIFTERS: SHIMANO GRX RX-400, 2X10
FRONT DERAILLEUR: SHIMANO TIAGRA
REAR DERAILLEUR: SHIMANO GRX RX-400
BRAKES: SHIMANO GRX RX-400 HYDRAULIC, GIANT MPH ROTORS [F]160MM, [R]160MM
BRAKE LEVERS: SHIMANO GRX RX-400 HYDRAULIC
CASSETTE: SHIMANO HG500, 11X34
CHAIN: KMC X10 WITH MISSING LINK
CRANKSET: FSA OMEGA ADVENTURE, 32/48 XS:170MM, S:170MM, M:172.5MM, M/L:172.5MM, L:175MM, XL:175MM
BOTTOM BRACKET: FSA MEGA EXA, PRESS FIT
RIMS: GIANT S-X2 DISC WHEELSET
HUBS: GIANT S-X2 DISC WHEELSET
SPOKES: GIANT S-X2 DISC WHEELSET
TIRES: GIANT CROSSCUT AT 2, 700X38C, TUBELESS
EXTRAS: TUBELESS PREPARED, 53MM MAX TIRE SIZE IN "LONG" FLIP CHIP POSITION, 42MM MAX TIRE SIZE IN "SHORT" FLIP CHIP POSITION
WEIGHT: THE MOST ACCURATE WAY TO DETERMINE ANY BIKE’S WEIGHT IS TO HAVE YOUR LOCAL DEALER WEIGH IT FOR YOU. MANY BRANDS STRIVE TO LIST THE LOWEST POSSIBLE WEIGHT, BUT IN REALITY WEIGHT CAN VARY BASED ON SIZE, FINISH, HARDWARE AND ACCESSORIES. ALL OUR BIKES ARE DESIGNED FOR BEST-IN-CLASS WEIGHT AND RIDE QUALITY.

VIEW MORE DETAILS ON WWW.GIANT-BICYCLES.CO.ZA

*Please note that bike specifications are subject to change without prior notice.
