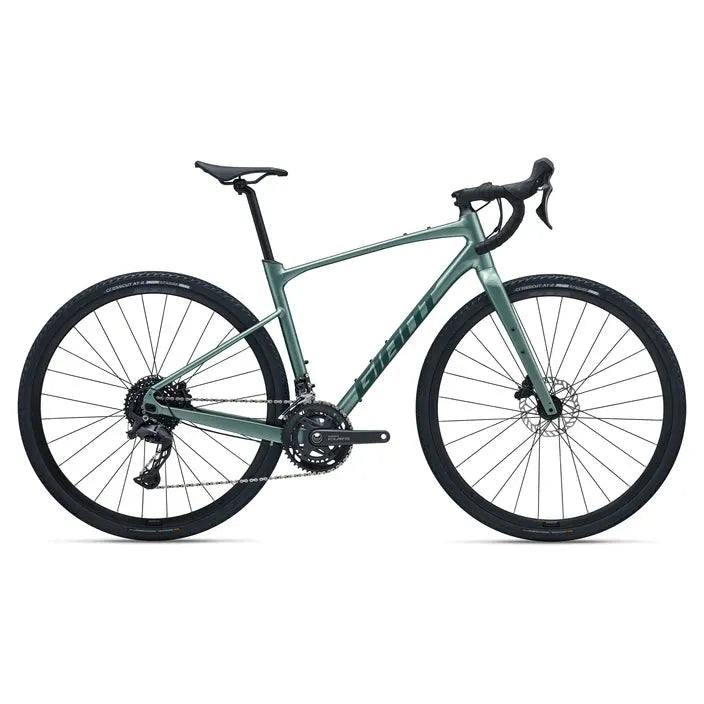

Giant Revolt 1 Alpine Green '26

GIANT REVOLT 1

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

ALUXX SL ALUMINUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

PRODUCT HIGHLIGHTS

• Confident handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
• Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS:

FRAME: ALUXX-GRADE ALUMINUM, 12X142MM THRU-AXLE, DISC, FLIP CHIP DROPOUT
FORK: ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12MM THRU-AXLE, DISC
HANDLEBAR: GIANT CONTACT XR D-FUSE, 31.8MM XS:42CM, S:42CM, M:44CM, M/L:44CM, L:46CM, XL:46CM
GRIPS: CORK TAPE WITH GEL
STEM: GIANT CONTACT, 8-DEGREE XS:50MM, S:60MM, M:70MM, M/L:80MM, L:80MM, XL:90MM
SEATPOST: GIANT D-FUSE, ALLOY, 14MM OFFSET
SADDLE: GIANT GRIT
SHIFTERS: SHIMANO CUES U6030, 2X10
FRONT DERAILLEUR: SHIMANO CUES U6030
REAR DERAILLEUR: SHIMANO CUES U6020
BRAKES: SHIMANO CUES U6030 HYDRAULIC, GIANT MPH ROTORS [F]160MM, [R]160MM
BRAKE LEVERS: SHIMANO CUES U6030 HYDRAULIC
CASSETTE: SHIMANO CS-LG300, 11X39
CHAIN: KMC X11
CRANKSET: SHIMANO FC-U6030-2, 32/46 XS:170MM, S:170MM, M:172.5MM, M/L:172.5MM, L:175MM, XL:175MM
BOTTOM BRACKET: SHIMANO, THREADED
RIMS: GIANT S-X2, ALLOY
HUBS: GIANT ALLOY, 12MM THRU-AXLE
SPOKES: STAINLESS
TIRES: CROSSCUT GRIP 1; 700X45C
EXTRAS: TUBELESS PREPARED, 53MM MAX TIRE SIZE IN INLONGIN FLIP CHIP POSITION, 45MM MAX TIRE SIZE IN INSHORTIN FLIP CHIP POSITION
MAX TIRE CLEARANCE: 53MM
WEIGHT: THE MOST ACCURATE WAY TO DETERMINE ANY BIKE’S WEIGHT IS TO HAVE YOUR LOCAL DEALER WEIGH IT FOR YOU. MANY BRANDS STRIVE TO LIST THE LOWEST POSSIBLE WEIGHT, BUT IN REALITY WEIGHT CAN VARY BASED ON SIZE, FINISH, HARDWARE AND ACCESSORIES. ALL OUR BIKES ARE DESIGNED FOR BEST-IN-CLASS WEIGHT AND RIDE QUALITY.

VIEW MORE DETAILS ON WWW.GIANT-BICYCLES.CO.ZA

*Please note that bike specifications are subject to change without prior notice.
