Giant Revolt ADV 0 Snow Drift '26

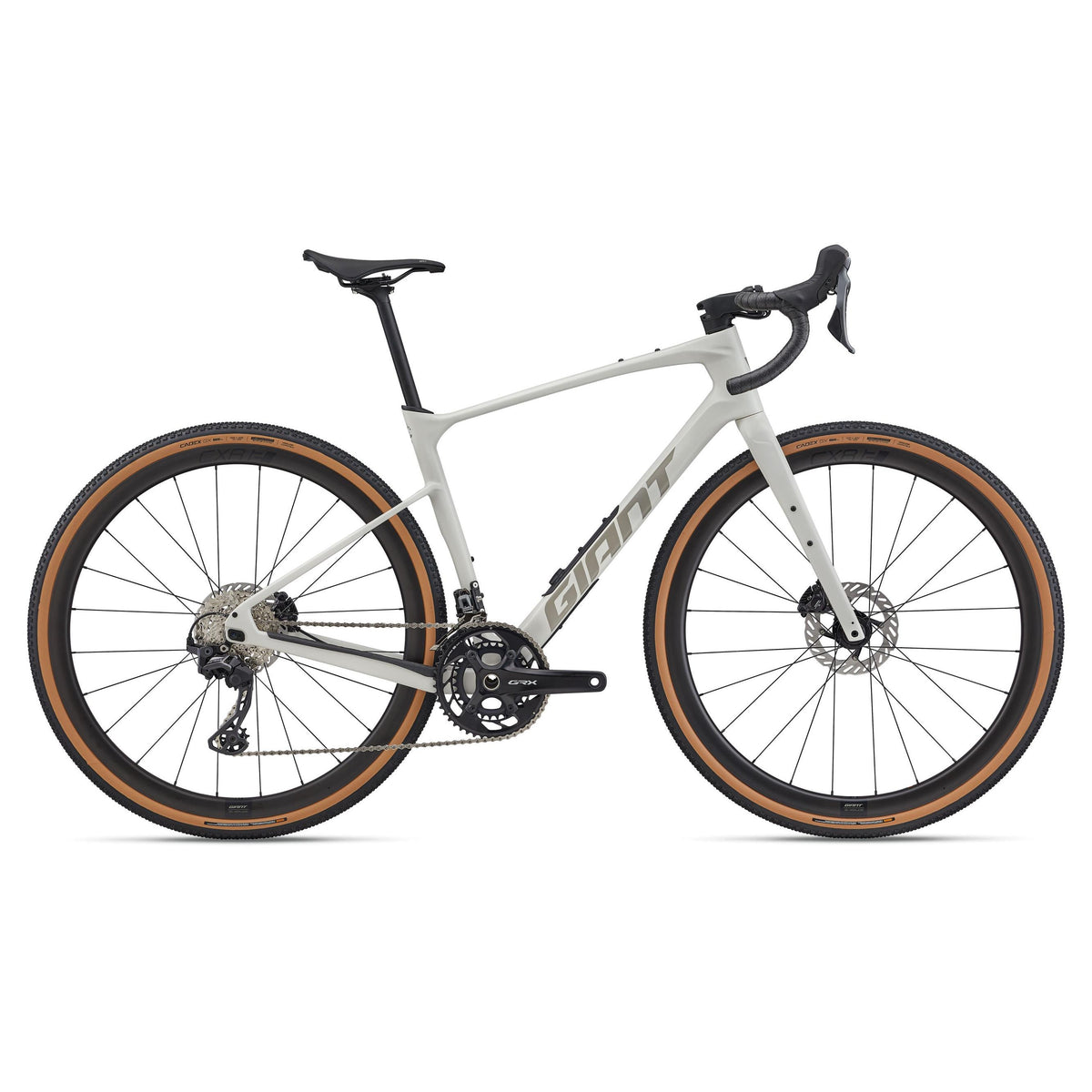

GIANT REVOLT ADVANCED 0

GRAVEL CRUSHER For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

PRODUCT HIGHLIGHTS:

• FAST AND VERSATILE: An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
• TUNED COMPLIANCE: Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
• SMART INTEGRATION: Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

SPECIFICATIONS:

FRAME: ADVANCED-GRADE COMPOSITE, 12X142MM THRU-AXLE, DISC, FLIP CHIP DROPOUT, DOWN TUBE STORAGE
FORK: ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12MM THRU-AXLE, DISC
HANDLEBAR: GIANT CONTACT XR D-FUSE, 31.8MM XS:42CM, S:42CM, M:44CM, M/L:44CM, L:46CM, XL:46CM
GRIPS: STRATUS LITE 3.0
STEM: GIANT CONTACT AEROLIGHT, -10 DEGREE XS:50MM, S:60MM, M:70MM, M/L:80MM, L:80MM, XL:90MM
SEATPOST: GIANT D-FUSE SL, COMPOSITE, -5/+15MM OFFSET
SADDLE: GIANT APPROACH
SHIFTERS: SHIMANO GRX RX-820, 2X12
FRONT DERAILLEUR: SHIMANO GRX RX-820
REAR DERAILLEUR: SHIMANO GRX RX-820
BRAKES: SHIMANO GRX RX-820 HYDRAULIC, SHIMANO SM-RT70 ROTORS [F]160MM, [R]160MM
BRAKE LEVERS: SHIMANO GRX RX-820 HYDRAULIC
CASSETTE: SHIMANO CS-HG710, 12-SPEED, 11X36
CHAIN: KMC X12L-1
CRANKSET: SHIMANO GRX RX-820, 31/48 XS:170MM, S:170MM, M:172.5MM, M/L:172.5MM, L:175MM, XL:175MM
BOTTOM BRACKET: SHIMANO, PRESS FIT
RIMS: GIANT CXR 2 CARBON DISC WHEELSYSTEM, [F] 35MM, [R] 35MM
HUBS: [F] GIANT ALLOY, CENTERLOCK, 12MM THRU-AXLE [R] GIANT ALLOY, 3-PAWL 36T DRIVER, CENTERLOCK, 12MM THRU-AXLE
SPOKES: SAPIM SPRINT
TIRES: CADEX GX, 700X40C, TUBELESS
EXTRAS: TUBELESS PREPARED, 53MM MAX TIRE SIZE IN INLONGIN FLIP CHIP POSITION, 45MM MAX TIRE SIZE IN INSHORTIN FLIP CHIP POSITION, IN-FRAME STORAGE BAG
WEIGHT: THE MOST ACCURATE WAY TO DETERMINE ANY BIKE’S WEIGHT IS TO HAVE YOUR LOCAL DEALER WEIGH IT FOR YOU. MANY BRANDS STRIVE TO LIST THE LOWEST POSSIBLE WEIGHT, BUT IN REALITY WEIGHT CAN VARY BASED ON SIZE, FINISH, HARDWARE AND ACCESSORIES. ALL OUR BIKES ARE DESIGNED FOR BEST-IN-CLASS WEIGHT AND RIDE QUALITY.

VIEW MORE DETAILS ON WWW.GIANT-BICYCLES.CO.ZA

*Please note that bike specifications are subject to change without prior notice.
