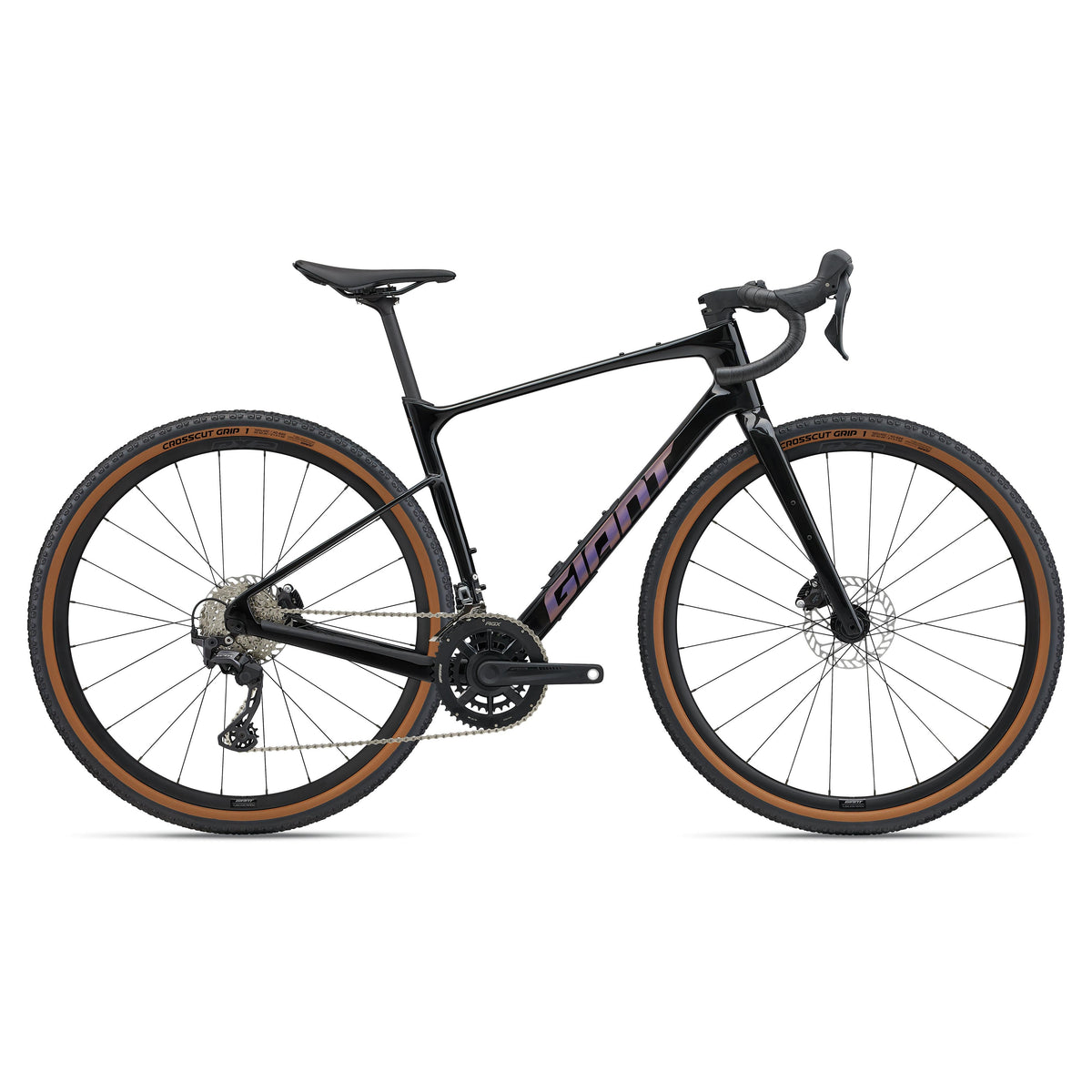

Giant Revolt ADV 2 Carbon Black '25

GIANT REVOLT ADVANCED 2

GRAVEL CRUSHER For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

PRODUCT HIGHLIGHTS:

• Fast and light: New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
• Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS:

FRAME: ADVANCED-GRADE COMPOSITE, 12X142MM THRU-AXLE, DISC, FLIP CHIP DROPOUT, DOWN TUBE STORAGE
FORK: ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12MM THRU-AXLE, DISC
SHOCK: N/A
HANDLEBAR: GIANT CONTACT XR D-FUSE, 31.8MM XS:42CM, S:42CM, M:44CM, M/L:44CM, L:46CM, XL:46CM
GRIPS: STRATUS LITE 3.0
STEM: GIANT CONTACT AEROLIGHT, -10 DEGREE XS:50MM, S:60MM, M:70MM, M/L:80MM, L:80MM, XL:90MM
SEATPOST: GIANT D-FUSE, COMPOSITE, 14MM OFFSET
SADDLE: GIANT GRIT
PEDALS: N/A
SHIFTERS: SHIMANO GRX RX-610, 2X12
FRONT DERAILLEUR: SHIMANO GRX RX-820
REAR DERAILLEUR: SHIMANO GRX RX-820
BRAKES: SHIMANO GRX RX-410 HYDRAULIC, GIANT MPH ROTORS [F]160MM, [R]160MM
BRAKE LEVERS: SHIMANO GRX RX-610 HYDRAULIC
CASSETTE: SHIMANO CS-HG710, 12-SPEED, 11X36
CHAIN: KMC X12L-1
CRANKSET: FSA OMEGA MODULAR AGX+, 32/48 XS:170MM, S:170MM, M:172.5MM, M/L:172.5MM, L:175MM, XL:175MM
BOTTOM BRACKET: FSA BB-AL86, PRESS FIT
RIMS: GIANT P-X2 DISC WHEELSET, ALLOY
HUBS: GIANT ALLOY, 12MM THRU-AXLE
SPOKES: SAPIM
TIRES: GIANT CROSSCUT GRIP TR, 700X40C, TUBELESS
EXTRAS: TUBELESS PREPARED, 53MM MAX TIRE SIZE IN 'LONG' FLIP CHIP POSITION, 45MM MAX TIRE SIZE IN 'SHORT' FLIP CHIP POSITION, IN-FRAME STORAGE BAG
WEIGHT: THE MOST ACCURATE WAY TO DETERMINE ANY BIKE’S WEIGHT IS TO HAVE YOUR LOCAL DEALER WEIGH IT FOR YOU. MANY BRANDS STRIVE TO LIST THE LOWEST POSSIBLE WEIGHT, BUT IN REALITY WEIGHT CAN VARY BASED ON SIZE, FINISH, HARDWARE AND ACCESSORIES. ALL OUR BIKES ARE DESIGNED FOR BEST-IN-CLASS WEIGHT AND RIDE QUALITY.

VIEW MORE DETAILS ON WWW.GIANT-BICYCLES.CO.ZA

*Please note that bike specifications are subject to change without prior notice.
