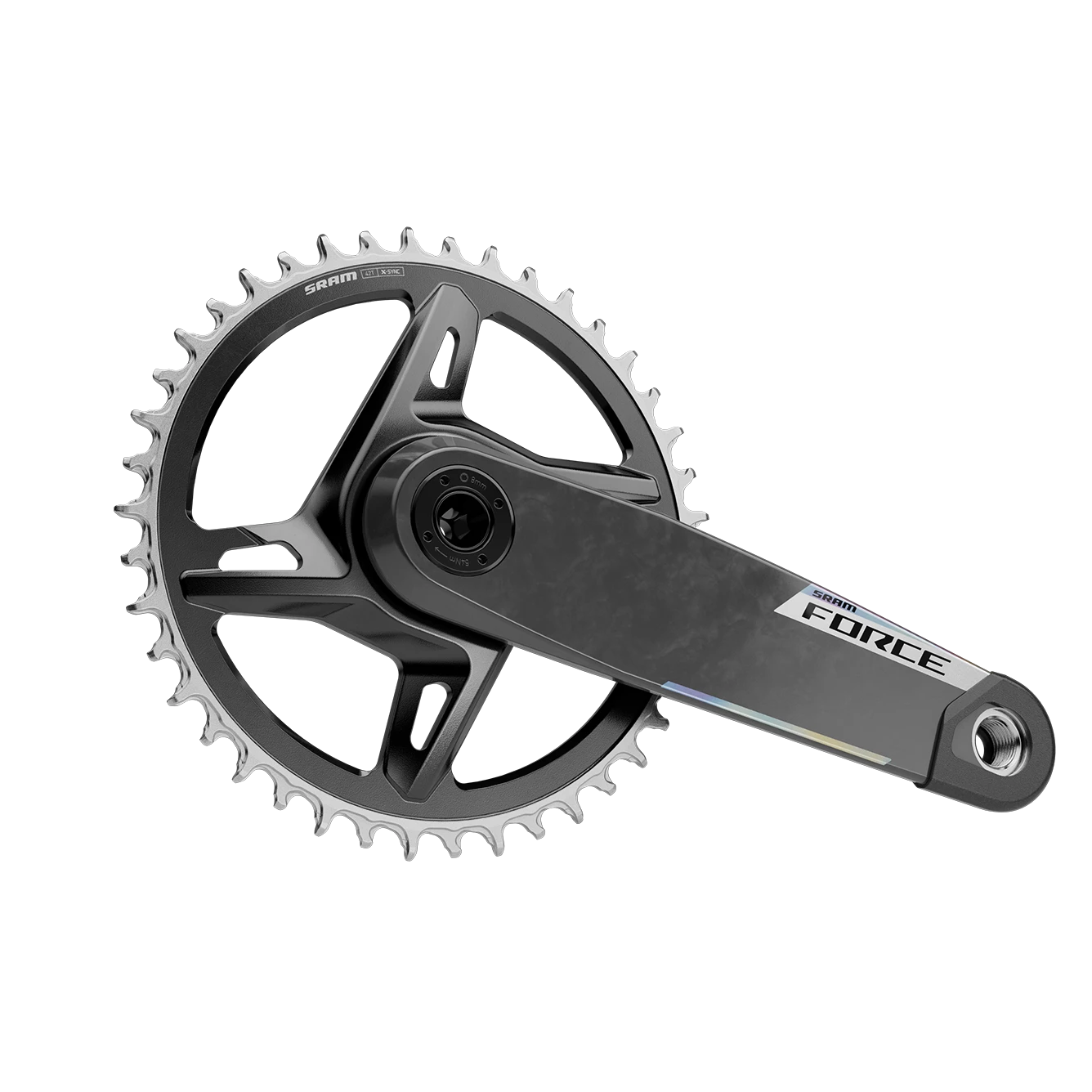

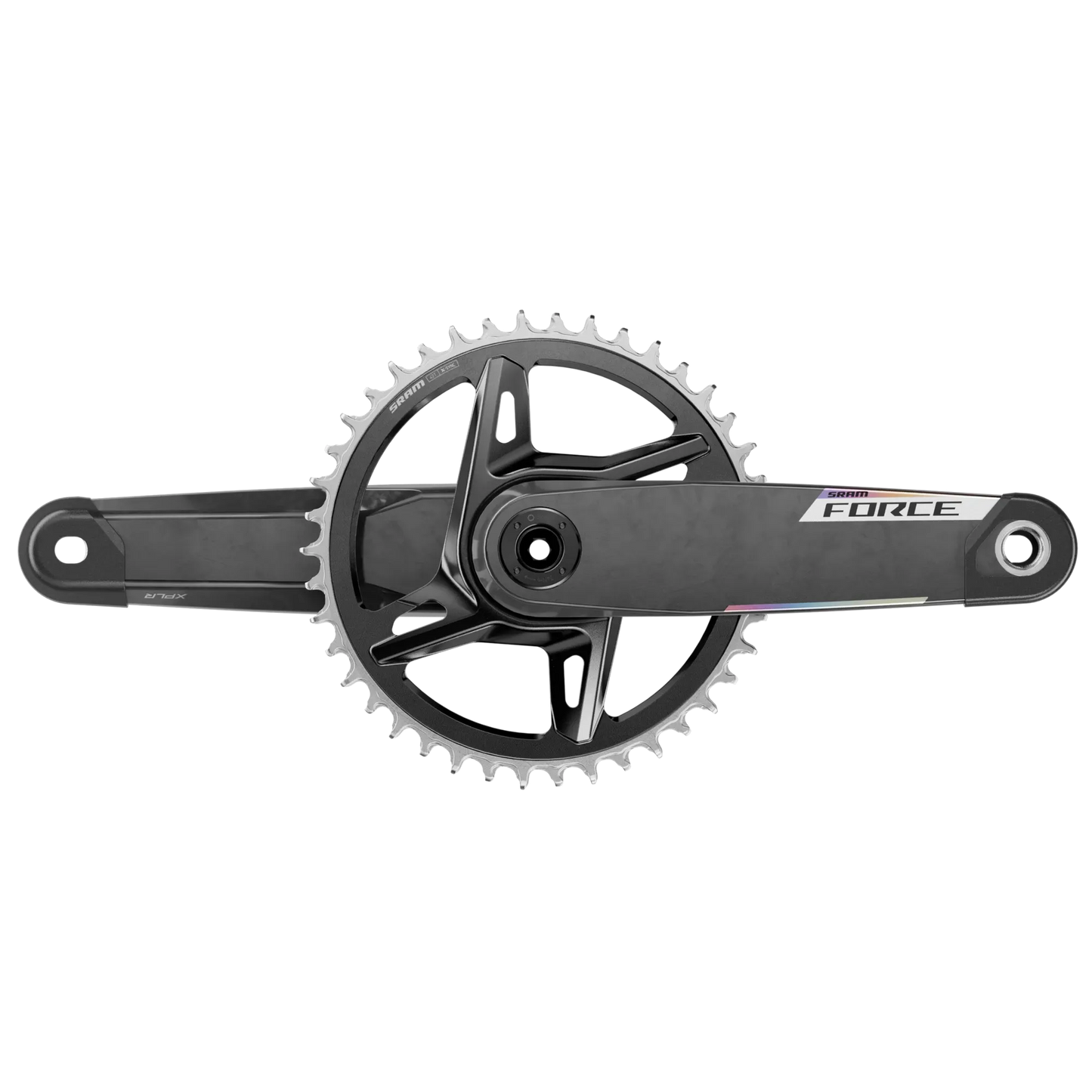

SRAM Force 1x XPLR Crankset
Pickup currently unavailable
SRAM FORCE XPLR 1X CRANKSET
The Force XPLR crankset is a light and stiff direct mount chainring with refined, elegant crank arms, plus updated, lighter 1x chainrings. Offered in 38T-46T standard chainring sizes and 44T-50T with aero rings, this crank can do it all and looks great doing it.
PRODUCT HIGHLIGHTS
- Single-ring drivetrain simplifies functionality and reduces weight

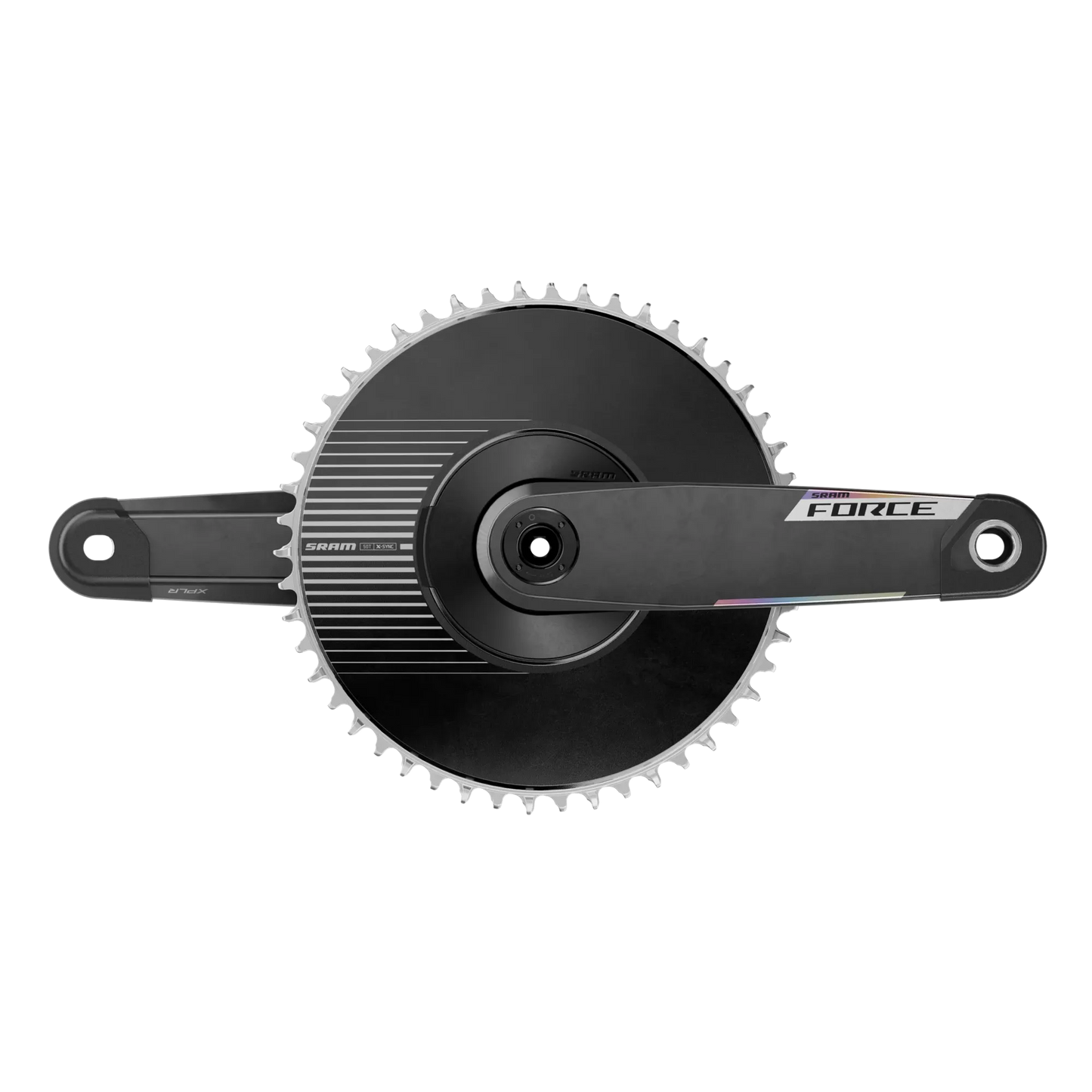

- Direct mount aero chainrings for better aerodynamics
- X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
- DUB bottom bracket adds durability and simplicity
- Can be upgraded to a power meter
- Available in 160,165, 170, 172.5 and 175mm crankarm lengths
- Lightweight
- Use with XPLR derailleurs on bikes with chainstay lengths down to 415 mm. Road cranksets should be used with chainstay lengths 414mm and below
SPECIFICATIONS
SPEEDS: 12, 13
BB COMPATIBILITY: ALL SRAM ROAD WIDE DUB BBS
CHAINRING SIZE: 42T, 44T, 46T, 48T, 50T
CRANK ARM LENGTH: 160MM, 165MM, 170MM, 172.5MM, 175MM
CHAINLINE: 47.5MM
BB SPINDLE INTERFACE: DUB
CHAINRING MATERIAL: ALUMINUM
BOLT CIRCLE DIAMETER (BCD): DIRECT MOUNT (DM)
POWER METER: NO
POWER METER TYPE: N/A
CHAINRING OFFSET: 6.5MM
BOTTOM BRACKET TECHNOLOGY: DUB
CRANKSETS TYPE: ROAD WIDE
CHAIN TECHNOLOGY: EAGLE, ROAD FLATTOP D1, ROAD FLATTOP E1, T-TYPE
DRIVETRAIN CONFIGURATION: 1X
TECHNOLOGY (FD): N/A
FRONT TOOTH JUMP: 0
CHAINRING MOUNT INTERFACE: DM 8-BOLT
