SRAM Red 1x XPLR Crankset
Pickup currently unavailable

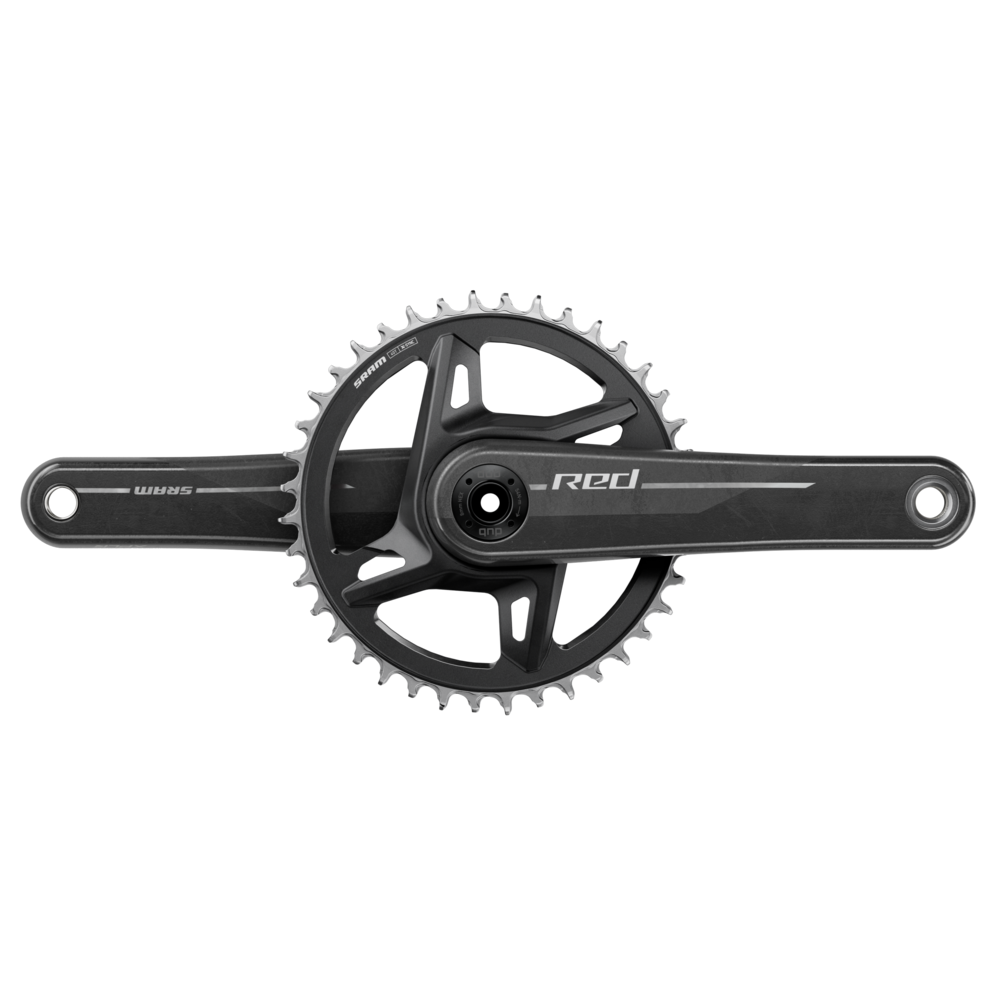

SRAM RED XPLR CRANKSET
Gravel bikes deserve our lightest and stiffest cranks too. The RED XPLR crankset maximizes tire clearance and features our hollow carbon arms paired with the direct mount 1x chainring of your choice. Now available in 160mm crankarm length, this crank is built to please every rider, even those who prefer the unpaved.
PRODUCT HIGHLIGHTS
- Single-ring drivetrain simplifies functionality and reduces weight
- Non-aero direct mount chainrings from 38T to 46T can be swapped with a single tool
- Aero direct mount chainrings available from 44T-50T
- SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
- Ultra-light hollow carbon fiber crankarms
- DUB bottom bracket adds durability and simplicity
- Can be upgraded to a power meter
- Available in 150, 155, 160, 165, 167.5, 170, 172.5, and 175 mm lengths
- Use with XPLR derailleurs on bikes with chainstay lengths down to 415 mm. Road cranksets should be used with chainstay lengths 414mm and below
SPECIFICATIONS
SPEEDS: 12, 13
BB COMPATIBILITY: ALL SRAM ROAD WIDE DUB BBS
CHAINRING SIZE: 40T, 42T, 44T, 46T, 48T, 50T
CRANK ARM LENGTH: 160MM, 165MM, 167.5MM, 170MM, 172.5MM, 175MM
CHAINLINE: 47.5MM
BB SPINDLE INTERFACE: DUB
CHAINRING MATERIAL: ALUMINUM
BOLT CIRCLE DIAMETER (BCD): DIRECT MOUNT (DM)
POWER METER: NO
POWER METER TYPE: N/A
CHAINRING OFFSET: 6.5MM
BOTTOM BRACKET TECHNOLOGY: DUB
CRANKSETS TYPE: ROAD WIDE
CHAIN TECHNOLOGY: EAGLE, ROAD FLATTOP D1, ROAD FLATTOP E1, T-TYPE
DRIVETRAIN CONFIGURATION: 1X
TECHNOLOGY (FD): N/A
FRONT TOOTH JUMP: 0
CHAINRING MOUNT INTERFACE: DM 8-BOLT
