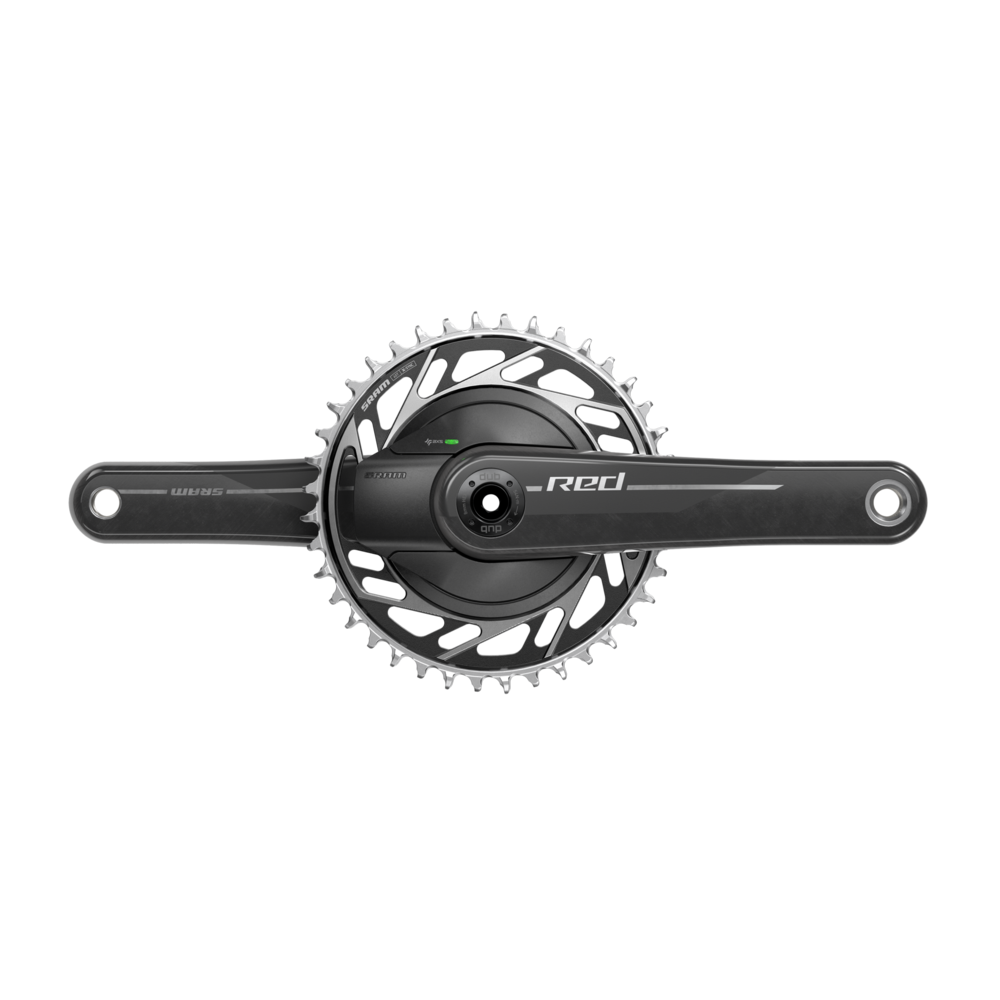

SRAM Red AXS XPLR Crankset w/PM
Pickup currently unavailable
SRAM RED XPLR AXS W/ POWERMETER
Tracking your progress on gravel just got easier and more accurate. With our new spider-based power meter and removable Thread Mount chainrings, the RED XPLR AXS power meter is lightweight, reliable in all weather, and accurate within +/-1.5%. With dual-sided power measurement, even your loftiest of gravel training goals are within reach.
PRODUCT HIGHLIGHTS
- All-new design with removable and replaceable Thread Mount chainrings, available in 38T-46T
- Power readings are accurate within +/-1.5% and aren’t affected by climate conditions during a ride
- User replaceable CR2032 battery with 200-hour battery life
- Measures right and left leg power balance
- Ultra-light hollow carbon fiber crankarms are 29 g lighter than previous generation
- DUB bottom bracket adds durability and simplicity
- Waterproof (IPX7 waterproof to 1 meter for 30 minutes)
- Available in 150, 155, 160, 165, 167.5, 170, 172.5, and 175 mm lengths
- Use with XPLR derailleurs on bikes with chainstay lengths down to 415 mm. Road cranksets should be used with chainstay lengths 414mm and below
SPECIFICATIONS
SPEEDS: 12, 13
BB COMPATIBILITY: ALL SRAM ROAD WIDE DUB BBS
CHAINRING SIZE: 40T, 42T, 44T, 46T, 50T
CHAINRING OFFSET: 6.5MM
CRANK ARM LENGTH: 160MM, 165MM, 167.5MM, 170MM, 172.5MM, 175MM
CHAINLINE: 47.5MM
BB SPINDLE INTERFACE: DUB
CHAINRING MATERIAL: ALUMINUM
BOLT CIRCLE DIAMETER (BCD): DIRECT MOUNT (DM), THREAD MOUNT
POWER METER: YES
POWER METER TYPE: SPIDER
BOTTOM BRACKET TECHNOLOGY: DUB
CRANKSETS TYPE: ROAD WIDE
CHAIN TECHNOLOGY: EAGLE, ROAD FLATTOP D1, ROAD FLATTOP E1, T-TYPE
DRIVETRAIN CONFIGURATION: 1X
TECHNOLOGY (FD): N/A
FRONT TOOTH JUMP: 0
CHAINRING MOUNT INTERFACE: DM 8-BOLT
